MV 1690 4-axis cnc vertical milling machine
- 20 Set / Sets per Month
- DALIAN
- T/T
- MX400 Small Drilling & Milling Center Small CNC Milling | CNC milling machine of 4-axis | Small CNC Machines For Workshop
- MX400 Small Drilling & Milling Center Small CNC Milling | CNC milling machine of 4-axis | Small CNC Machines For Workshop
- MX400 Small Drilling & Milling Center
- SMT panasonic CM202-DS
- vmc650 CNC machining center|CNC machining center 650
- vmc850 CNC machining center|Vertical Machining Center
Product Details
Condition: | New | Type: | Vertical | Place of Origin: | Liaoning, China |
Brand Name: | R&C | Model Number: | MV1690 | Voltage: | 380V |
Power(W): | 15/18.5 | Dimension(L*W*H): | 4260*3645*3200 | Weight: | 14000 |
Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

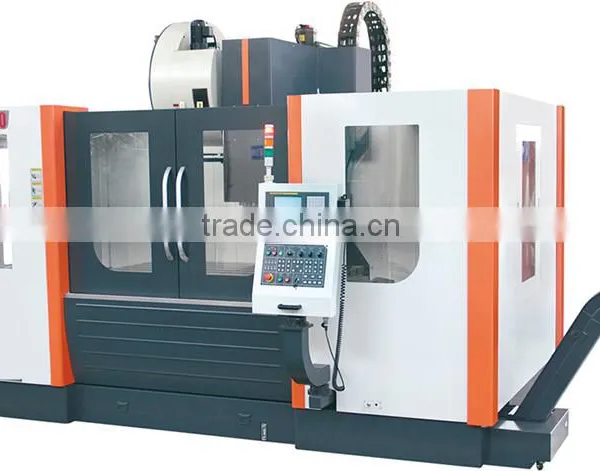

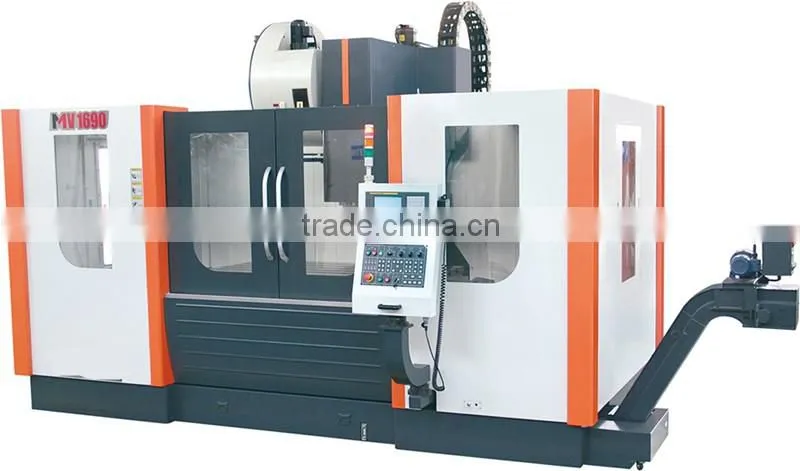

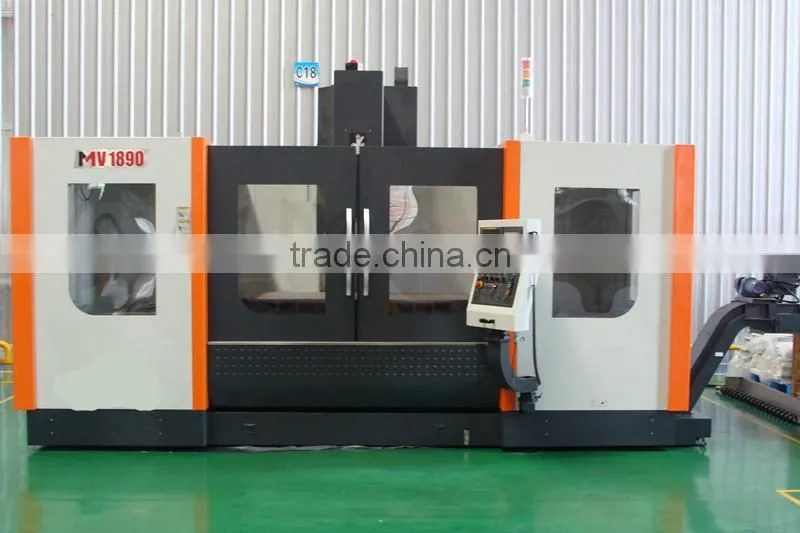

MV 1690 4-axis cnc vertical milling machine

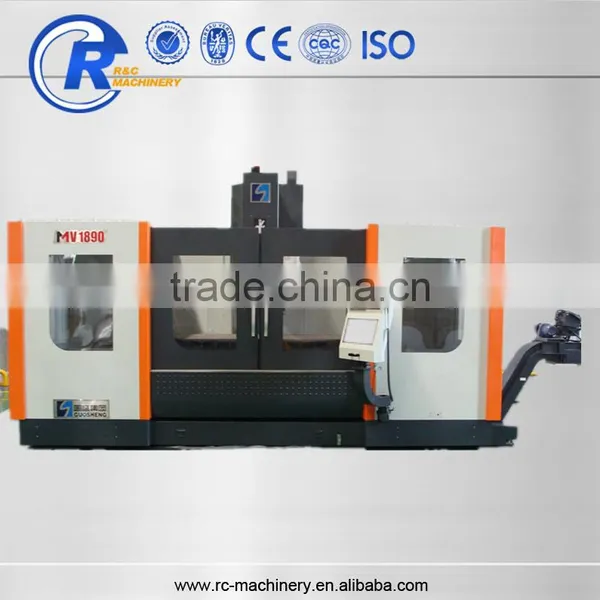

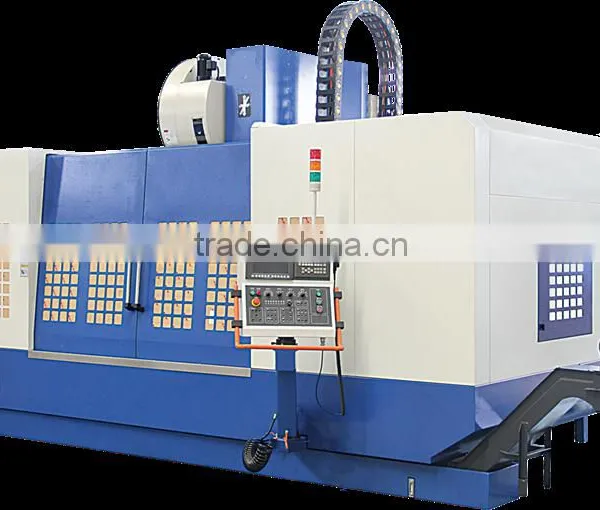

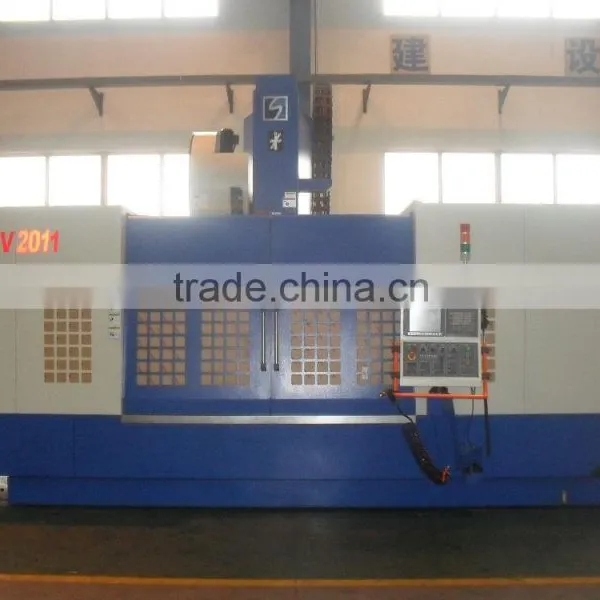

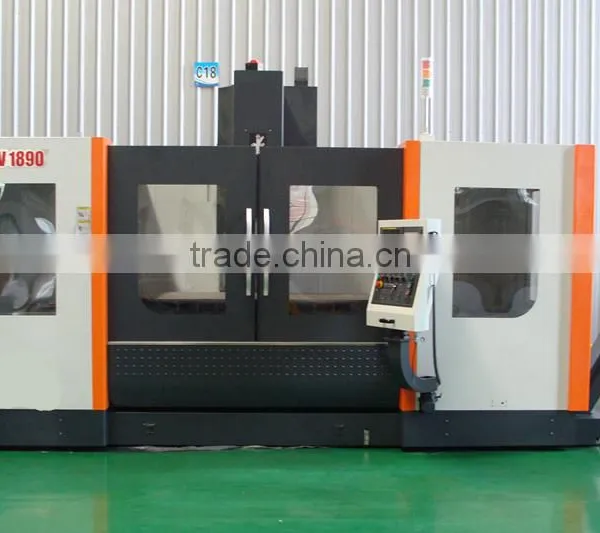

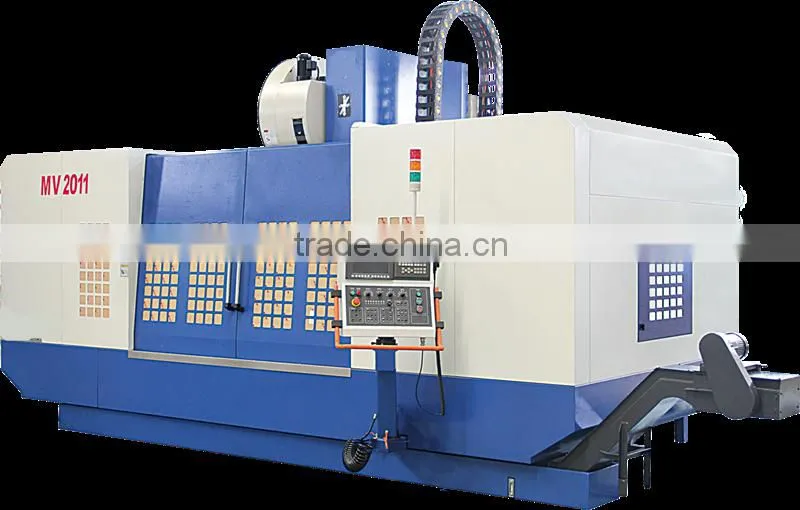

Machine Type | Unit | MV1690 | MV1890 | MV2011 |
Worktable | ||||
Worktable(length×width) | mm | 1800×900 | 2000×900 | 2300×1100 |
Maximun Load of table | kg | 1500 | 1700 | 4500 |
T-slot | mm | 5-22×150 | 5-22×150 | 7-22×150 |
Triaxial itinerary | ||||
Travel for X/Y/Z axis | mm | 1600/900/750 | 1800/900/750 | 2000/1100/800 |
Distance from spindle nose to table surface | mm | 150-900 | 150-900 | 250-1050 |
Distance from spindle center to column guide surface | mm | 980 | 980 | 1150 |
Feed system | ||||
CNC system | FANUC-0i MD | FANUC-0i MD | FANUC-0i MD | |
Rapid shift of axis of X/Y/Z | m/min | 15 | 15 | 12 |
Maximun cutting feed speed | m/min | 7 | 7 | 7 |
Automatic tool transform system | ||||
Standard tool quantity | piece | Arm 24 | Arm 24 | Arm 24 |
The larges diameter cutter knife/length | mm | Φ110/300 | Φ110/300 | Φ110/300 |
Tool exchanging manner | Pneumatic | Pneumatic | Pneumatic | |
Average tool exchanging time | sec | Arm 5s | Arm 5s | Arm 5s |
Precision | ||||
Positioning accuracy | mm | 0.015 | 0.015 | 0.020 |
Accuracy of repeated positioning | mm | 0.010 | 0.010 | 0.015 |
Spindle system | ||||
Spindle speed | r.p.m | 6000 | 6000 | 6000 |
Spindle specifications (model/installation diameter) | BT50/Φ190 | BT50/Φ190 | BT50/Φ190 | |
Drive manner of spindle | Belt drive | Belt drive | Belt drive | |
Motor power of spindle | kw | 15/18.5 | 22/26 | 22/26 |
Air pressure | ||||
Requirements for air compressing | kg/cm² | ≥6 | ≥6 | ≥6 |
Air pressure flux | m³/min | ≥0.5 | ≥0.5 | ≥0.5 |
Machine specifications | ||||
Integrated weight | kg | 14000 | 15000 | 19000 |
Overall dimension (length×width×height) | mm | 4260×3645×3200 | 4800×3400×3800 | 5700×4100×3300 |
Vertical Machining Center
Hard rail series, three-axis vertical machining center. Mainly used in medium-sized parts and molds, the workpiece in a fixture may be for the completion of milling,
drilling, boring. It can be single used and can also be used for multiple operations on parts in a production line. Cutting with powerful, high-speed positioning,
mechanical and electrical integration, automatic Chip control and security protection features.
|
PACKING |
