DL-30M Slant Bed 625 CNC Lathe

DL-30M Slant Bed 625 CNC Lathe thumbnail-1
DL-30M Slant Bed 625 CNC Lathe thumbnail-2
DL-30M Slant Bed 625 CNC Lathe thumbnail-3
DL-30M Slant Bed 625 CNC Lathe thumbnail-4
DL-30M Slant Bed 625 CNC Lathe thumbnail-5
DL-30M Slant Bed 625 CNC Lathe thumbnail-6
DL-30M Slant Bed 625 CNC Lathe photo-1

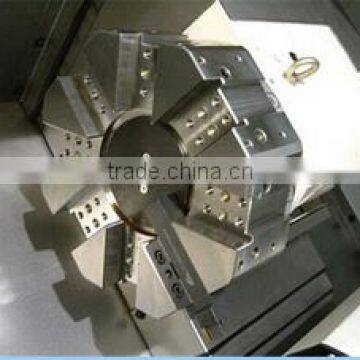

DL-30M Slant Bed 625 CNC Lathe photo-2

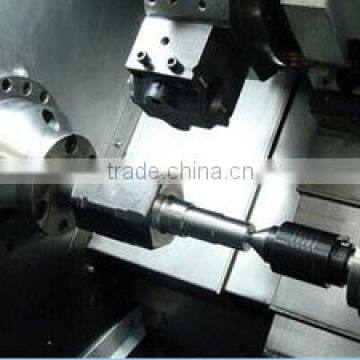

DL-30M Slant Bed 625 CNC Lathe photo-3

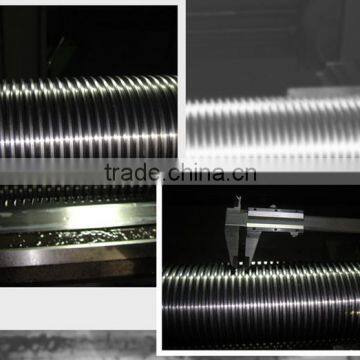

DL-30M Slant Bed 625 CNC Lathe photo-4

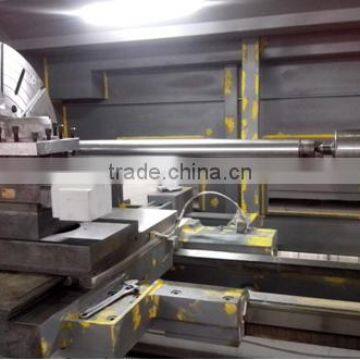

DL-30M Slant Bed 625 CNC Lathe photo-5

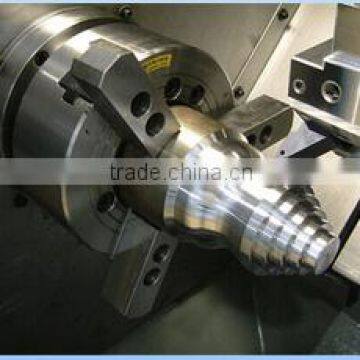

DL-30M Slant Bed 625 CNC Lathe photo-6
US$ 55,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Dalian R&C Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 625mm
Place of Origin Liaoning, China
Brand Name R&C
Model Number DL-30M
Voltage 380V
Power(W) 22(30) kw
Dimension(L*W*H) 4020mm *2080mm* 2050mm
Weight 8500kg
Certification ISO9001 CE
After-sales Service Provided Overseas service center available
Product Description

DL-30M Slant Bed 625 CNC Lathe



Parameters
Item
DL20
DL30M
DL40
Swing over bed mm)
¢460
¢625
¢800
Center distance (mm)
600/1000
1000/1500
2000/2500/3000
Max. turning diameter(Shafts/ Discs)(mm)
¢260/380
¢310/600
¢550/750
Guide way type
linear
linear
box-type
Chuck size
8
12
15"
Spindle nose
ISO A2-6
ISO A2-8
ISO A2-11
Spindle speed (rpm)
40~4000
30~3000
20~2000
Main spindle motor power(S6)(kW)
11(15)
15(18.5)
22(30)
Spindle bore diameter (mm)
¢70
¢88
¢100
X-axis travel (mm)
220
325
375
Z-axis travel (mm)
540/1000
1110
2160/2660/3160
X-axis rapid traverse(m/min)
12
24
12
Z-axis rapid traverse(m/min)
16
24
16
Positioning accuracy(mm)
X 0.016
X 0.019
X 0.019
Z 0.025
Z 0.032
Z 0.040
Repeat positioning accuracy(mm)
X 0.007
X 0.0010
X 0.0012
Z 0.010
Z 0.013
Z 0.015
Turret: number of stations
12
12
12
Tool size (mm)
25×25
25×25
32×25
Tailstock quill diameter(mm)
¢85
¢140
¢160
Tailstock quill travel(mm)
100
150
180
Tailstock taper(MT)
4
5
5
