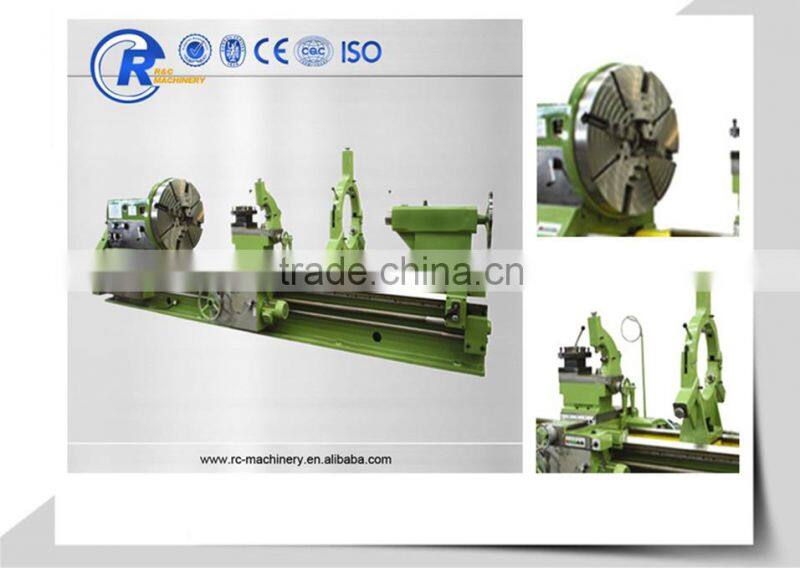

CT61100 Heavy Duty Conventional Lathe

IMAGE> SPECIFICATION>MAIN PARTS > OTHER 5AXIS>PACKING>OTHER MACHINES> PACKING > R&C

ITEM

CT61100

Max.swing over bed

1000mm

Center distance (OPTIONS)

1000/1500/2000/3000/5000/6000/8000/10000mm

Max.swing over carriage

630mm

Spindle hole bore

100mm

Taper in spindle nose

1:20

Number of spindle speeds

Forward 12

Reverse 12

Range of spindle speeds

6-272rpm

Range of feed per spindle revolution

48kids

Longitudinal 0.057-12.726mm

Cross 0.027-6.096mm

Range of metric threads

46kinds 1-224mm

Range of whitworth threads

46kinds 28-1 t.p.i

Range of module threads

37kinds 0.25-56mm

Workpiece held on the steady rest

Φ50~Φ470mm

Max.travel of top slide

350mm

Rapid moving speed of tool post

Longitudinal 3.8m/min

Tailstock

Cross 1.9m/min

IMAGE >> SPECIFICATION >> OTHER 5AXIS>>  OTHER MACHINES >> PACKING >> R&C

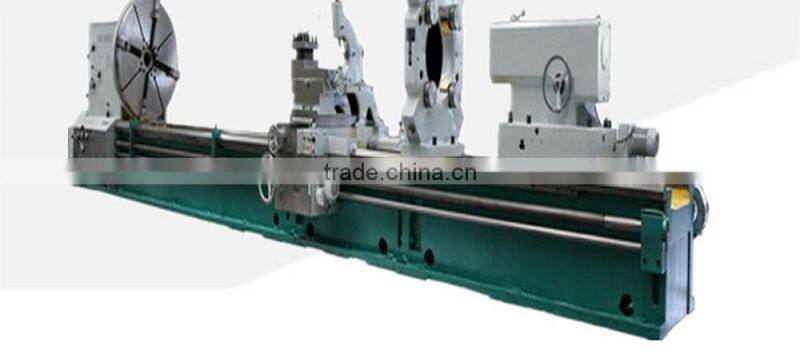

 CS61125

  Max. Load_10T

  Widthe of Machine_970mm

  Swing Over Bed_ Φ1250mm

  Swing Over Carriage_ Φ 800mm

  Click the picture and enter into that page.

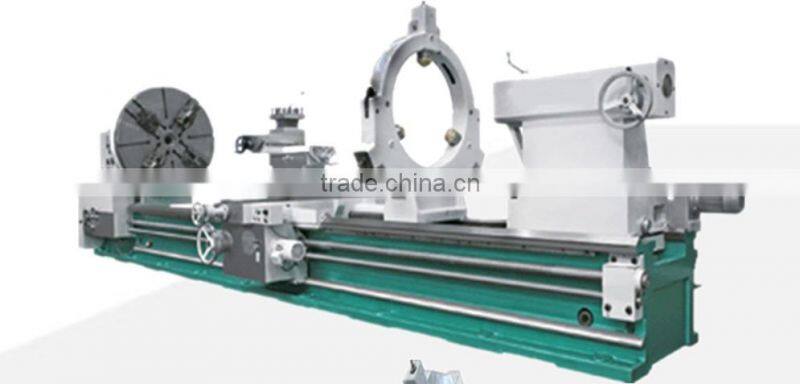

 CD61125

  Max. Load_18T

  Widthe of Machine_1100mm

  Swing Over Bed_ Φ1250mm

  Swing Over Carriage_ Φ 800mm

 Click the picture and enter into that page.

IMAGE>> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >>  OTHER MACHINES >> PACKING>> R&C

IMAGE>> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >>  OTHER MACHINES >> PACKING >> R&C

IMAGE>> SPECIFICATION >> MAIN PARTS >> OTHER 5AXIS >>  OTHER MACHINES>> PACKING >> R&C

We have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our machines will put on good performance based on high quality. We can provide customers with full service and technical consultation upon different requests in 24 hours. R&C Machinery would like to offer its best machines with best solution, and build itself as the bridge and window for both overseas and domestic enterprises and customers.

KINDLY CONTACT ME IF YOU NEED ANY INFORMATION.
