Load 50kg 6-axis Industrial Robot

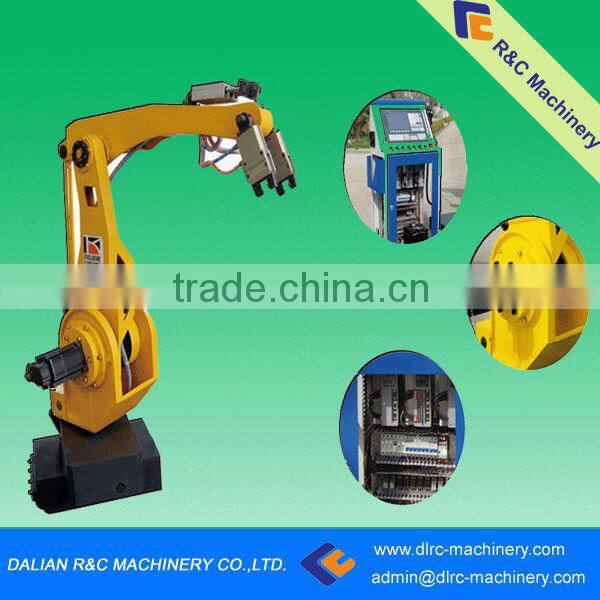

Load 50kg 6-axis Industrial Robot photo-1
US$ 3,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
dalian
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other
CNC or Not CNC
Automatic Grade Automatic
Place of Origin Liaoning, China
Brand Name R&C
Model Number RB50
Voltage 220V/380V
Weight 125kg
Certification ISO9001,CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Robot for Precision Processing
CE
ISO





  load 50kg 6-axis industrial robot



1. Machine Tool Introduction:





Automatic Welding

Automatic casting

Ultra-bearing super bearing turntable 70kg

Feeding the fastest speed one second place

Actual production operating speed 2M / sec





2. The main technical parameters (standard):









Item

RB03

RB08

RB20

RB50

Degree of Freedom

6

6

6

6

Drive System

AC servo motor

AC servo motor

AC servo motor

AC servo motor

Maximum Load Capacity

+­­­­­­0.05mm

+­­­­­­0.05mm

+­­­­­­0.05mm

+­­­­­­0.05mm

Movement

Range

J1 Axis

+­­­­­­170°

+­­­­­­170°

+­­­­­­170°

+­­­­­­170°

J2 Axis

+150°  ~- 60°

+120° ~- 85°

+133°~- 95°

+130 °~- 90°

J3 Axis

+75°  ~- 170°

+85°~-170°

+76° ~- 166°

+280° ~- 160°

J4Axis

+­­­­­­190°

+­­­­­­180°

+­­­­­­180°

+­­­­­­360°

J5Axis

+­­­­­­125°

+­­­­­­135°

+­­­­­­133°

+­­­­­­120°

J6Axis

+­­­­­­360°

+­­­­­­360°

+­­­­­­360°

+­­­­­­360°

Rated Speed

J1 Axis

2.62rad/s, 150° /s

2.09rad/s, 120° /s

1.90rad/s, 109° /s

1.23rad/s, 70° /s

J2Axis

2.62rad/s, 150° /s

2.09rad/s, 120° /s

1.30rad/s, 74.5° /s

1.12rad/s, 64° /s

J3xis

3.14rad/s, 180° /s

2.09rad/s, 120° /s

1.74rad/s, 100° /s

0.90rad/s, 51° /s

J4Axis

4.71rad/s 270° /s

3.93rad/s, 225° /s

3.93rad/s, 225° /s

2.51rad/s, 144° /s

J5Axis

4.71rad/s 270° /s

2.53rad/s, 145° /s

2.56rad/s, 147° /s

2.92rad/s, 167° /s



4.71rad/s 270° /s

5.24rad/s, 300° /s

5.16rad/s, 296° /s

5.10rad/s, 292° /s



J6Axis



Environmental

Condition

Temperature

0--45°C

Humidity

20~80%   20~80%(no condensation)













Other

  1. Keep away from flammable, explosive and corrosive gases and liquid.
  2. Avoid water, oil and dust.
  3. Be far away from electric appliance noise source(plasma)

Installation Posture

Installed on floor

Robot Body weight

125kg

Electric Cabinet weight



75kg

180kg

245kg

600kg

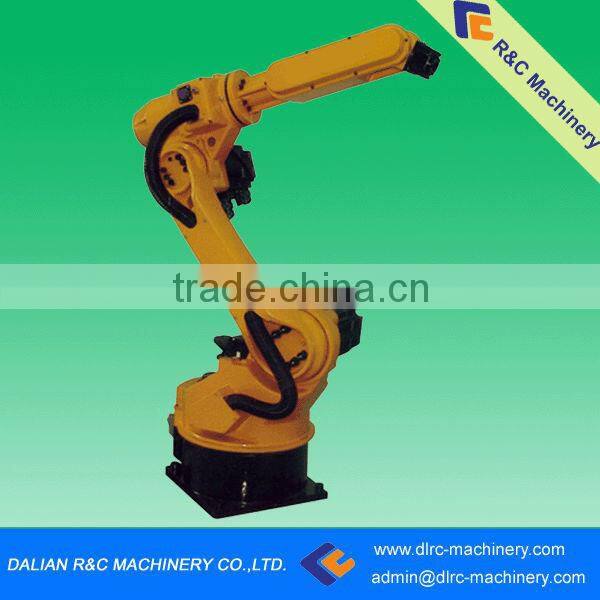

3.Our Product Photo:





 load 50kg 6-axis industrial robot







4. Other robot you may interest in:



 load 50kg 6-axis industrial robot





5.Company Introduction:



We are the big machine manufacturer specializing in producing heavy duty machine tools, it has five factories in China which mainly produce Vertical Lathe, Boring & Milling Machine, Heavy-duty Horizontal Lathe, both conventional and CNC types.







We have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our machines will put on good performance based on high quality. We can provide customers with full service and technical consultation upon different requests in 24 hours. R&C Machinery would like to offer its best machines with best solution, and build itself as the bridge and window for both overseas and domestic enterprises and customers.







6. Main Export Market:







Canada, the U.S.A., Italy, France, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U.A.E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and so on.



7. Our Work Shop:



load 50kg 6-axis industrial robot





8. With Customers:



load 50kg 6-axis industrial robot



9. Why Choose Us:

 load 50kg 6-axis industrial robot



 load 50kg 6-axis industrial robot



load 50kg 6-axis industrial robot



load 50kg 6-axis industrial robot



load 50kg 6-axis industrial robot



load 50kg 6-axis industrial robot



10. After-sales Service and Commitment to Quality:

a. The date of final acceptance of the machine, the vendor of the product free of charge three packs a year (the buyer causes damage will be charged the cost of).

b. Machine fails, the user information of the seller can accurately determine the cause of the malfunction and treatment measures, given immediately reply sent to the scene to deal with such as could not determine the cause, within 48 hours, to solve the failure so far.
