price for 10KW 20kw solar power generator price

Parameters

Solar Cell Module

Rated Power : 36V280W*36 pcs
Maximum Power Voltage Vm :36V
Maximum Power Current Im :6.95A
Open Circuit Voltage Voc :42.48V 8PCS panels by series
Short Circuit Current Isc :7.64A Type:Poly solar cells
Dimension: 1950*995*45mm

Net Weight :22kg

Rechargeable Battery

24V/140AH 20pcs

Rated Voltage:24V 12pcs batteries by series connection.
Rated Capacity:2160Ah

Rated Voltage:DC48V
Rated Current:60A lead-acid battery maintenance-free, terminals outlet method designed, useful life 5-8, 4 series, -30 ℃ ~ 60 ℃ ambient temperature, rapid charging, high-current discharge, low internal resistance and cycle life of up to 100,000 times more long life

Controller    192V80A

• High efficiency PWM charge mode technology.

• Solar array reverse polarity protection, night counter attack filled; PV overcharge current protection.

• Battery overcharge and discharge protection.

• Overload and short circuit protection.

• The user can according to their own needs, self cutting system stops charging.

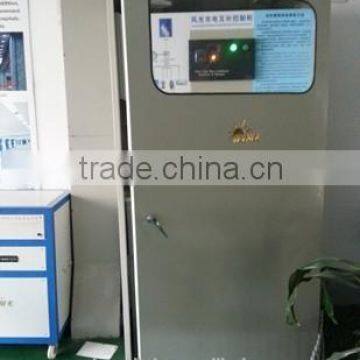

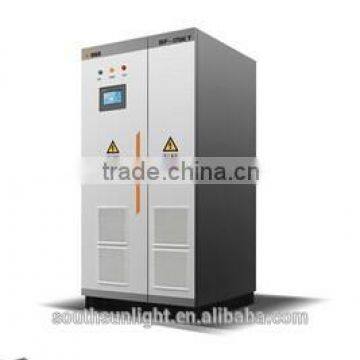

Pv inverter for grid-off

Input Power :10000W
Output Voltage:AC110-220V
Output Frequency:Sine Wave 50/60 Hz±0.5Hz
Inverter Efficiency:80%-92% maintain, convenient to expand capacity, intelligently tracking and analysing he Convenient for daily management, IP for overall unit is 20, and for air intake is IP 50.Compatibla with 380V standard grid system. Easy and stable on-grid, high power density,. Easy to delivery, install, debug and maintain.

Using advanced of double CPU single tablets machine smart control technology, high reliability, and low fault rate of features;

pure sine wave output, with load capacity strong, application range wide; has perfect of protection function, had load protection, and internal had temperature protection, and output short-circuit protection, and entered owes pressure protection, and entered had pressure protection,, greatly improve products of reliability; volume small, and weight light, internal used CPU concentrated control, and posted tablets technology, makes volume very small, and weight light; thermal wind machine smart control, Controlled by CPU cooling fan working status, greatly extending the life of the fan, and save energy, improve work efficiency.

Payment terms

We accept L/C, T/T,western Union or other payment terms negotiated by both of us.

Shipping and delivery

1.we can ship the goods to you within 15 working days after the payment confirmed.

2.We can ship the goods by TNT, UPS,FEDEX,or other shipping ways. Please contact us to choose your preferred ways .

3.Any import fees and charge are on the buyer’s account

4.we're not responsible for any delays,accidents,or other issues caused by the fowarder.
