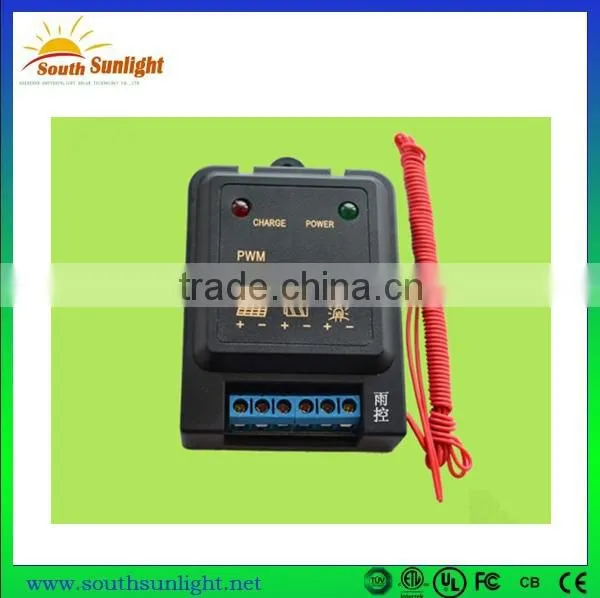

Small Insecticidal Lamp Pwm Solar Controller 6V/12V 1A 2A 3A Price Solar Charge Controller

FOB Price

US$ 1 - 3,000 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	southsunlight
Model Number	NFYG- 6V/12V 3A	Application	Other, Solar System Controller, Lighting Controller price solar charge controller
Rated Voltage	Other, 6V12V	Maximum Current	1a 2a 3a 5a

Product Description

Small insecticidal lamp pwm Solar Controller 6V/12V 1A 2A 3A price solar charge controller

3A price solar charge controller product introduction:

This product is a new generation of intelligent solar charge controller ,it has strong stabiity and high service life.This series has the function of automatically detecting the battery voltage,charging PWM mode and comprehensive protection function:the overcharge,discharge,over current,short circut ,reverse,etc.

3A price solar charge controller product function:

1.This controller has the household and street lamps in the integration of design

2.This controller is suitable for the 6v/12v battery system.

3.This controller has the light and time control(street light style)

4.This controller has the overcharge ,discharge,over current,short circuit,reverse connection protection measures,etc.

5.Scientific and rigorous design ,use high grade protection means.

6.This controller has a strong filling ,balanced ,floating three-step PWM adjust charging ways.

manual pwm solar charge controller technical parameters:

Model	NFYG0603/NFYG1203
Rated Voltage	6V/12V
Strong charging voltage	7.4/14.8V
Balance charger	7.25/14.5V
Float charging voltage	6.85/13.7v
Under voltage protection	5.4V/10.8V
Under voltage recovery	6.5/13V
No-load current	≤6mA
Charging circuit of pressure drop	≤0.2V
Discharge circuit of pressure drop	≤0.1V
Maximum charging current	3A
Maximum load current	3A
Contoller protection	Overload, reverse connection, discharge, overcharge, short-circuit and so on
Charge mode	PWM adjust way
Using altitude	≤5500m(2000m above needs to reduce the power for using)
Working temperature	-20℃~55℃
Weight (gross weight)	50g
Product size (dimensions)	*79.5mm52mm21.5mm/0.035kg*
Protection grade	IP22

We are professional to do solar controller ,we can do OEM ODM,If you want to know more info please contact me !
