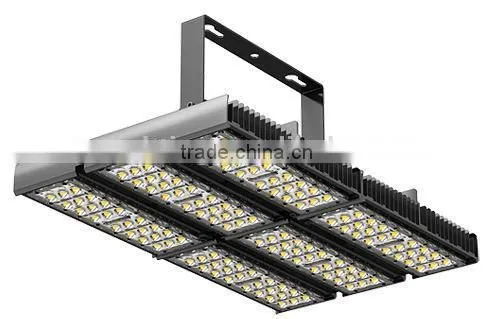

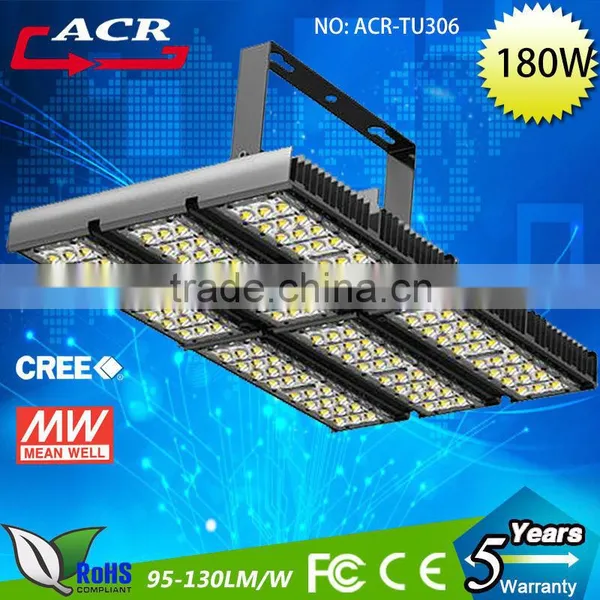

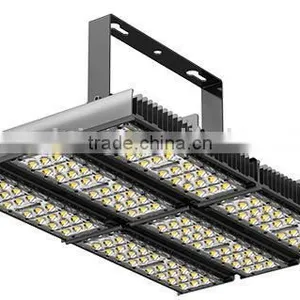

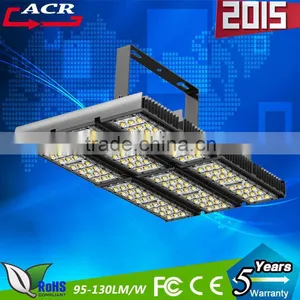

Parking garage LED lamp with storage battery 180w IP65 for indoor car parking lot
- shenzhen/zhongshan
- T/T L/C
You May Like
-
IP65 meanwell bridgelux 90W led flood tunnel light
-
Outdoor waterproof energy saving 90w tunnel led light/lamp parking garage led light
-
Waterproof IP65 meanwell driver 60w led tunnel light for inground,workshop warehouse
-
Hot new product for 2014 Aluminium 60w Outdoor led bollard light Garden Lights
-
High power 180w led bridgelux chip industry light outdoor light fixture
-
High lumen 180w led tunnel light 180watt halogen led replacement
Product Details
| LED Light Source | UL Meanwell | Input Voltage(V) | AC90-260V | |
| Lamp Power(W) | 180 | Lamp Luminous Flux(lm) | 19800 | |
| Lamp Luminous Efficiency(lm/w) | 110 | Color Temperature(CCT) | Warm White | |
| Working Temperature(℃) | -30, 60 | Working Lifetime(Hour) | 60000 | |
| Lamp Body Material | Aluminum | IP Rating | IP65 | |
| Certification | CCC, CE, FCC | Place of Origin | Guangdong, China | |
| Brand Name | ACR | Model Number | ACR-TU306 |
Product Description
Parking garage led lamp with storage battery
Technical Parameters of Parking garage led lamp with storage battery 180w
| Electrical paramete | Power (w) | 180w |
| Power Factor | ≥0.9 | |
| Power Efficiency | >85% | |
| Input Voltage(V) | AC90-260V | |
| Light parameter | Led Quantity | 144pcs |
| Luminous Efficiency(lm/w) | 100-130lm/w | |
| Surface Color | Black | |
| RI (Ra>) | 80 | |
| IP Grade | IP65 | |
| Beam Angle | 120° | |
| Color Temperature | Warm White: 2700-3500K | |
| Pure White: 4000-6000K | ||
| Cool White: 6000-7000K | ||
| Comprehensive parameter | Lifespan | ≥50000Hrs |
| Flux Attenuation (%) | ≤5%(5000hours) | |
| Working Temperature | -20°C-+55°C | |
| Storage Temperature | -25°C-65°C(25°C best) | |
| Driver | UL Meanwell | |
| Lamp Body Material | Aliminum | |
| Physical parameter and Packing parameter | Product Size | 598*360*281mm |
| warranty | 5years | |

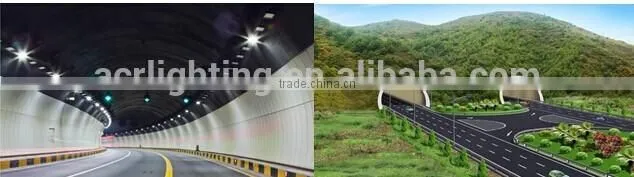

Application of Parking garage led lamp with storage battery

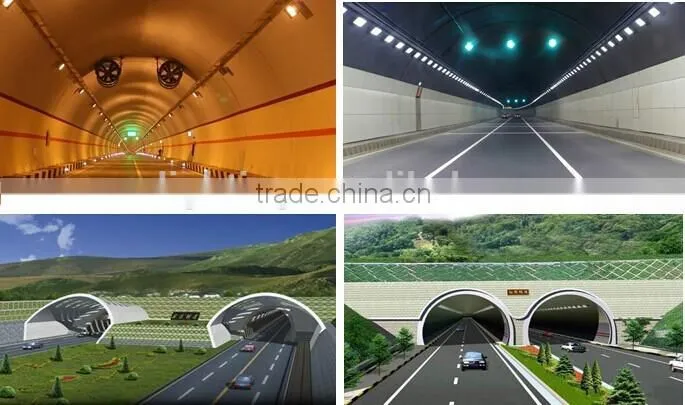

Led tunnel light is is widely used in highway,railway,subway,tunnel and underground tunnel lighting,workshop,large warehouse, venueand all kibds of manufactural construction and other places,urban landscape,such as nightscape lighting,billboard.

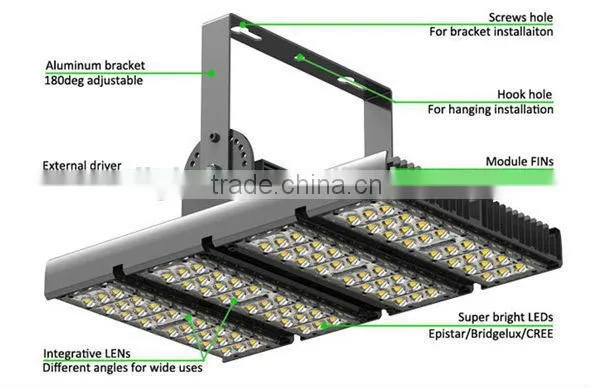

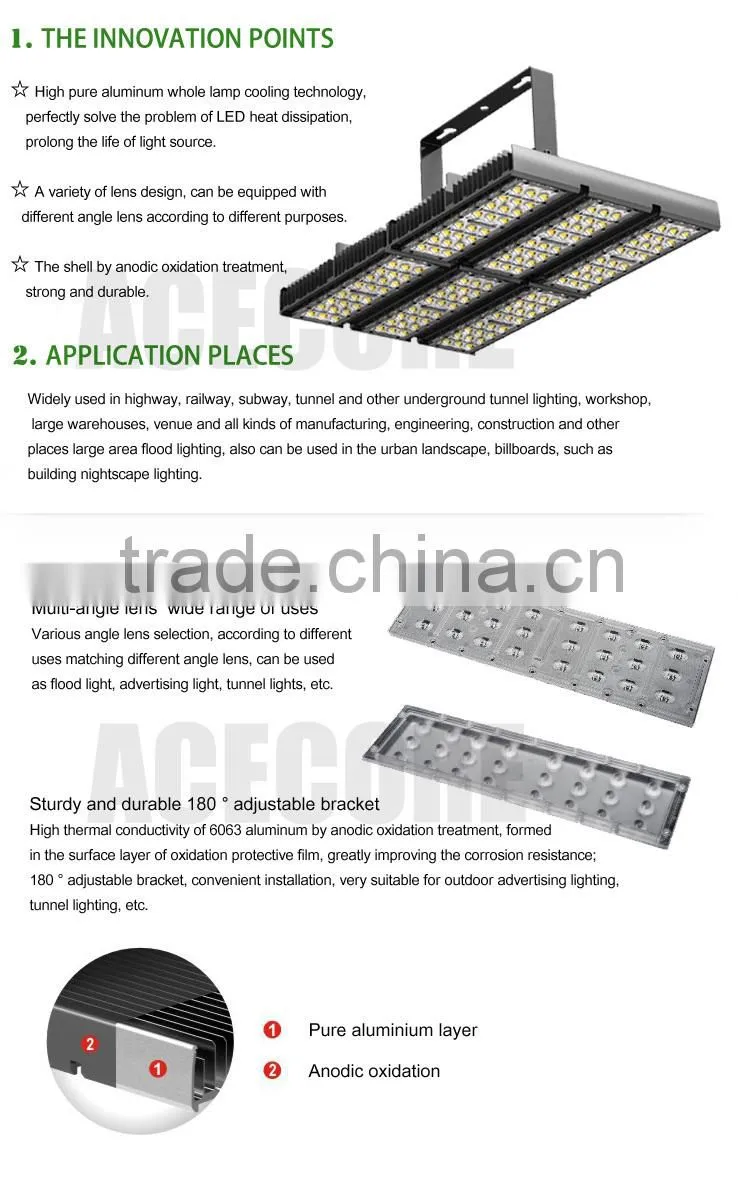

ACR led flood light ACR-TU300 has 5styles: from 30W to 180W, are

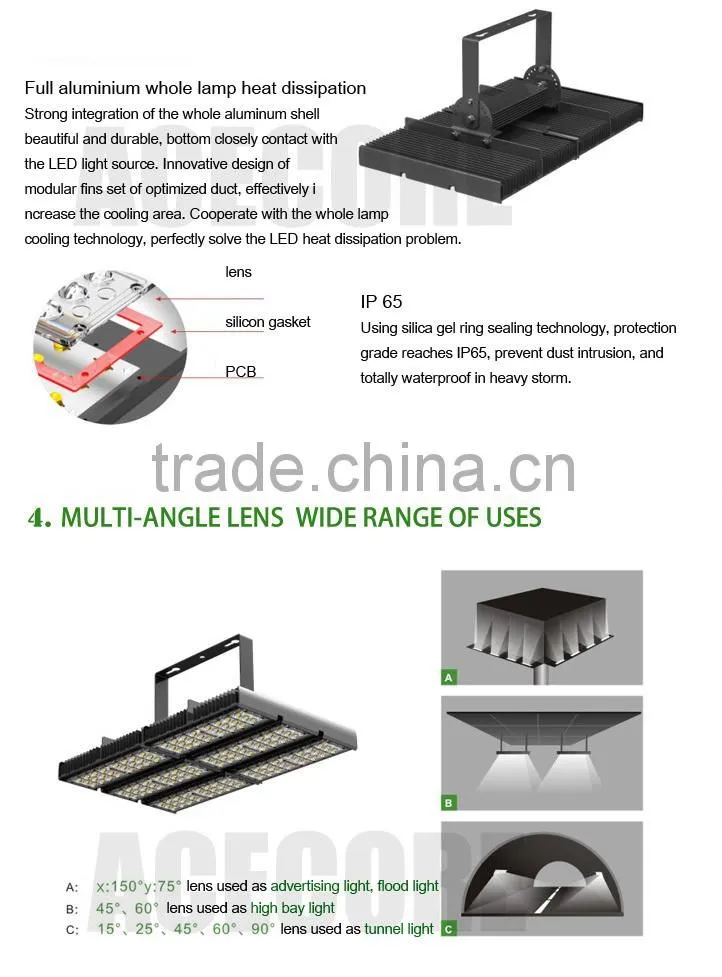

processed by coating and anodizing , greatly enhance corrosion resistance, and waterproof is Ip65.

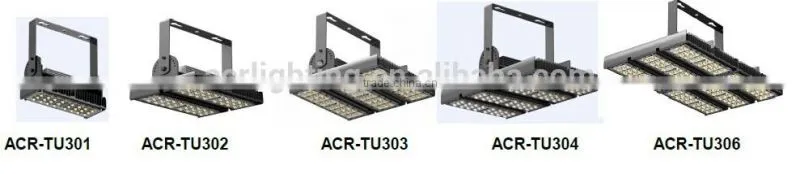

| Product Modle | ACR-TU301 | ACR-TU302 | ACR-TU303 | ACR-TU304 | ACR-TU306 |
Mudule quanlity | 1pcs | 2PCS | 3PCS | 4PCS | 6PCS |
| Led quanlity | 24pcs | 48PCS | 72PCS | 96PCS | 144PCS |
| Rated power | 30w | 60W. | 90W | 120W | 180W |
| Beam Angle | 120° | 120° | 120° | 120° | 120° |
| Serial parallel | 2P-12S | 4P-12S | 6P-12S | 8P-12S | 12P-12S |
| Net weight | 5.5kg | 6.8kg | 8.1kg | 9.3kg | 12.1kg |
| Luminous | 3300-3600 | 6600-7200 | 9900-10800 | 13200-14400 | 19800-21600 |
| Product Size | 175*298*278 | 255*298*278 | 340*298*278 | 485*298*278 | 598*360*281 |
Acecore Optoelectronics Technology Co., Ltd. (Zhongshan) was founded in 2006, dedicated to the production and sales of high quality LED outdoor light and indoor lights, electronic energy-saving lamps, T4 / T5 tube light indoor lamps and lanterns, total product more than hundred varieties.Company has engineers, senior technicians, and many other professional technology research and development staff and first-class production and testing equipment, guarantee the production of high quality.Strong technical force, complete production testing equipment and strict quality control process to ensure theproduct quality, won the trust of many customers domestic and abroad.
1.Fast and High Qualtiy Service.
We are always ready to provide you the fastest and best service, please feel free to contact us,
we would respon within 24hours.Our salesmen are professionally rained to master
every aspect of products, customer experience is our prior priority.
2. After Sale Service
We offer the preventative maintenance and after sales Service.From the first beginingwhen our
customer know about our products to the deal close, our service to supportthe whole
process.We will take the initiative to solve the problems and troubles after service.
We also offer 3-5 year warranty period.
3.Welcom to visit our factory anytime!
If need we can provide IES and other data materials
so don't hesitate to contact me, NOW!!!! O(∩_∩)O
Q: Are you a proofessional manufaturer?
A: Acecore technology co., LTD. after years of hard work, has formed a based on domestic and export oriented manufacturing enterprises.
Q:What is you main products?
A: LED street light,LED yard lights,LED high bay lights,flood lights,sport lights
Q:Where are your main export markets?
A: Western Europe,Eastern Europe,North America,South America,Northern Europe and so on.
Q:How many years of your products' warranty?
A:We provide 3-5 years warranty.It depends On different style product.
Q:You are not online how to find you?
A:Telephone num:+86-14718090325;Skype:acr-jessica.
