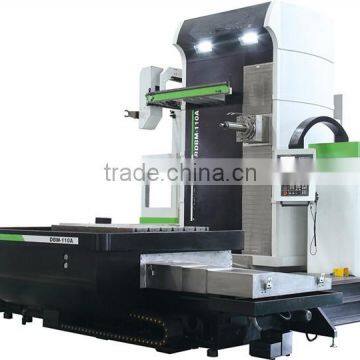

High Quality DBM 110-A Universal CNC Milling And Boring Machine

FOB Price

US$ 11,000 - 20,000 / Set

1 Set(Min. Order)

Port Dalian
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	CNC	Automatic Grade	Automatic
Max. Swing Diameter	630 Mm	Place of Origin	Jiangsu, China
Brand Name	R&C	Model Number	DBM-110A
Voltage	380V	Power(W)	15KW
Dimension(LWH)	543064504590	Weight	33500
Certification	CE & ISO	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

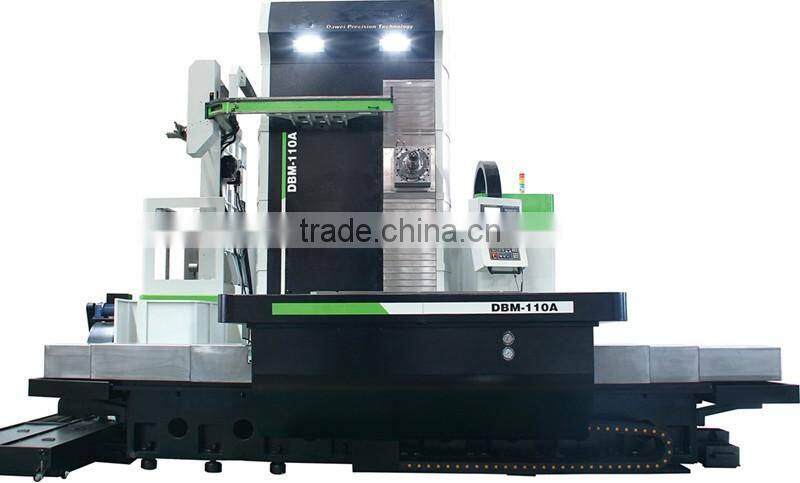

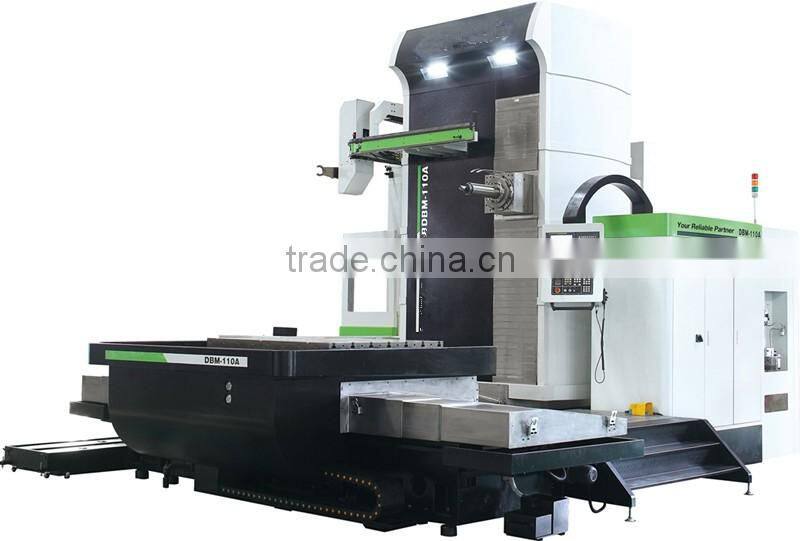

High Quality DBM 110-A universal CNC milling and boring machine

Processing Equipment

Main Parameters

Model	Unit	DBM-110	DBM-110A
X-axis travel (standard)	mm	2000	2000
X-axis travel (optional)	mm	2500	2500
Y-axis travel (standard)	mm	1800	1800
Y-axis travel (optional)	mm
Z-axis travel (standard)	mm	1500	1500
Z-axis travel (optional)	mm
W-axis travel (standard)	mm	400	550
Spindle
Center of spindle worktable surface	mm	0~1800	0~1800
Nose of spindle to work center	mm	100~2000	150~2200
Spinde diameter	mm	110	110
Spindle taper		ISO 50	ISO 50
Rotating spindle speed (standard)	rpm/min	35~3500	35~3500
Number of steps of rotating speed of spindle		2 Steps	2 Steps
Transmission mode		Gear box	Gear box
Worktable
Table size (optional)	mm	1250×1500	1250×1500
Division angle	deg	0.001°	0.001°
Reference aperture	mm	Φ60H7	Φ60H7
Max. load on worktable	kg	5000	6000
T-shot	mm	22H7×150×7	22H7×150×7
Division precision	sec	15"	15"
Repetitive locating precision	sec	4"	4"
Transmission mode
X, Y, Z-axis		Direct-drive	Direct-drive
W-axis		Belt-drive	Belt-drive
Y-axis counterweight		Counter weight	Counter weight
Cutting speed X/Y/Z/W	m/min	10/10/10/6	10/10/10/6
Rapid traverse speed X/Y/Z/W	m/min	10/10/10/8	10/10/10/8
Tool magazine and automatic toolchanger (optional)
Capacity of tool magazine		40	40
Tool selecting mode		Absolute	Absolute
Tool changing type		Arm type	Arm type
Tooling		BT/CAT/DIN #50	BT/CAT/DIN #50
Max. tool weight	kg	25	25
Max. tool length	mm	500	500
Max. tool diameter (no adjacent tool)	mm	Φ125/250	Φ125/250
Spindle and motor
Spindle motor	kw	FANUC 15/18.5	FANUC 15/18.5
Max. torque of spindle	Nm	787/965	787/965
Precision
Locating precision of machine tool	mm	±0.010	±0.010
Repetitive locating precision of machine tool	mm	±0.005	±0.005
Others
Air pressure required	kgf/cm²	6	6
Voltage requirement	KVA	45	45
Tank capacity	L	315	315
Floor area (length×width×height)	mm	5430×6450×4590	5430×6450×4590
Machine weight	kg	33000	33500
