Atex Approved Bridgelux Chip 90W Explosion Proof Led Tunnel Lamp

FOB Price

US$ 99 - 159 / Piece

8 Pieces(Min. Order)

Port shenzhen/zhongshan
Payment TermsT/T L/C Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	Cree/Bridgelux/Epistar	Input Voltage(V)	AC90-260V
Lamp Power(W)	90	Lamp Luminous Flux(lm)	9900
Lamp Luminous Efficiency(lm/w)	110	Color Temperature(CCT)	Warm White
Working Temperature(℃)	-30, 60	Working Lifetime(Hour)	60000
Lamp Body Material	Aluminum	IP Rating	IP65
Certification	CCC, CE, FCC	Place of Origin	Guangdong, China
Brand Name	ACR	Model Number	ACR-TU303

Product Description

90W explosion proof led tunnel lamp

Product Description

Technical Parameters of 90W explosion proof led tunnel lamp

Electrical paramete	Power (w)	90w
	Power Factor	≥0.9
	Power Efficiency	>85%
	Input Voltage(V)	AC90-260V
Light parameter	Led Quantity	72pcs
	Luminous Efficiency(lm/w)	100-130lm/w
	Surface Color	Black
	RI (Ra>)	80
	IP Grade	IP65
	Beam Angle	120°
	Color Temperature	Warm White: 2700-3500K
		Pure White: 4000-6000K
		Cool White: 6000-7000K
Comprehensive parameter	Lifespan	≥50000Hrs
	Flux Attenuation (%)	≤5%(5000hours)
	Working Temperature	-20°C-+55°C
	Storage Temperature	-25°C-65°C(25°C best)
	Driver	Meanwell
	Lamp Body Material	Aliminum

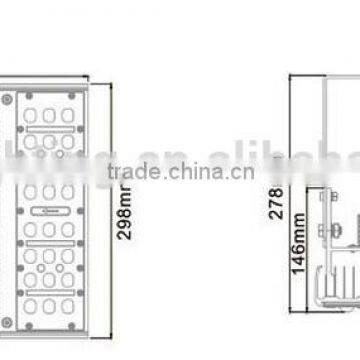

Physical parameter and Packing parameter	Product Size	340298278mm
warranty	5years

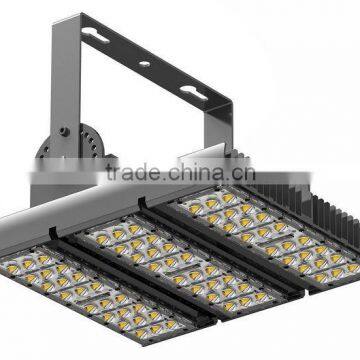

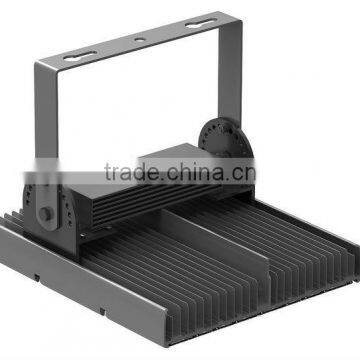

Product Display

Application of 90W explosion proof led tunnel lamp

Led tunnel light is is widely used in highway,railway,subway,tunnel and underground tunnel lighting,workshop,large warehouse, venueand all kibds of manufactural construction and other places,urban landscape,such as nightscape lighting,billboard.

Packaging & Shipping

Company Information

Acecore Optoelectronics Technology Co., Ltd. (Zhongshan) was founded in 2006, dedicated to the production and sales of high quality LED outdoor light and indoor lights, electronic energy-saving lamps, T4 / T5 tube light indoor lamps and lanterns, total product more than hundred varieties.Company has engineers, senior technicians, and many other professional technology research and development staff and first-class production and testing equipment, guarantee the production of high quality.Strong technical force, complete production testing equipment and strict quality control process to ensure theproduct quality, won the trust of many customers domestic and abroad.

Our Services

1.Fast and High Qualtiy Service.

We are always ready to provide you the fastest and best service, please feel free to contact us,

we would respon within 24hours.Our salesmen are professionally rained to master

every aspect of products, customer experience is our prior priority.

2. After Sale Service
We offer the preventative maintenance and after sales Service.From the first beginingwhen our

customer know about our products to the deal close, our service to supportthe whole

process.We will take the initiative to solve the problems and troubles after service.

We also offer 3-5 year warranty period.

3.Welcom to visit our factory anytime!

If need we can provide IES and other data materials

so don't hesitate to contact me, NOW!!!! O(∩_∩)O

FAQ

Q: Are you a proofessional manufaturer?

A: Acecore technology co., LTD. after years of hard work, has formed a based on domestic and export oriented manufacturing enterprises.

Q:What is you main products?

A: LED street light,LED yard lights,LED high bay lights,flood lights,sport lights

Q:Where are your main export markets?

A: Western Europe,Eastern Europe,North America,South America,Northern Europe and so on.

Q:How many years of your products' warranty?

A:We provide 3-5 years warranty.It depends On different style product.

Q:You are not online how to find you?

A:Telephone num:+86-14718090325;Skype:acr-jessica.

Contact Us

ACECORE Technology Co., Ltd.(Zhongshan): Contact nameCoco Huang
Chat Now; Phone86-0760-87768504; AddressNo. 3 Of 1/F, No. 35, East Maosheng Road, Tiebian, Henglan Town, Zhongshan, Guangdong, China

*Email
Please enter Your valid email address.
*To

Coco Huang
*Message
Your inquiry content must be between 20 to 5000 characters.
Please enter a correct verification code.

Product Categories

Cheap Led Street Light	COB Led Street Light	Integrated All In One Solar Street Light	Led Flood Light
Led Gas Station Light	Led High Bay light	Led Indoor Lighting	Led stadium Light
Led tunnel light	Led Underground Light	Linear High Bay Light	Modular Led Street Light
New Products	Separate Solar Street Light With Pole	Solar Light Fixture

Product Modle	ACR-TU301	ACR-TU302	ACR-TU303	ACR-TU304	ACR-TU306
Mudule quanlity	1pcs	2PCS	3PCS	4PCS	6PCS
Led quanlity	24pcs	48PCS	72PCS	96PCS	144PCS
Rated power	30w	60W.	90W	120W	180W
Beam Angle	120°	120°	120°	120°	120°
Serial parallel	2P-12S	4P-12S	6P-12S	8P-12S	12P-12S
Net weight	5.5kg	6.8kg	8.1kg	9.3kg	12.1kg
Luminous	3300-3600	6600-7200	9900-10800	13200-14400	19800-21600
Product Size	175298278	255298278	340298278	485298278	598360281
