Home > Products > Led tunnel light > High brightness IP65 120W LED Tunnel Light with UL CE ROHS
High brightness IP65 120W LED Tunnel Light with UL CE ROHS
- 5000 Piece / Pieces per Month
- shenzhen/zhongshan
- T/T L/C
You May Like
-
Great performance high power 120w led flood lights led tunnel light
-
2015 New products smart lighting 90W led tunnel light, meanwell led tunnel light,led flood light
-
High lumen industrial lighting 90w LED tunnel Lights for underground car parking
-
New design 90W LED Tunnel Light IP65 Waterproof Module tunnel light
-
Led super bright outdoor lighting 90w Module LED Tunnel Light with 3Years Warranty
-
2015 New high power 180w modular led tunnel light led floodlight led industrial lighting
Product Details
| LED Light Source | Cree | Input Voltage(V) | AC90-260V | |
| Lamp Power(W) | 120 | Lamp Luminous Flux(lm) | 14400 | |
| Lamp Luminous Efficiency(lm/w) | 120 | Color Temperature(CCT) | Warm White | |
| Working Temperature(℃) | -30, 60 | Working Lifetime(Hour) | 60000 | |
| Lamp Body Material | Aluminum | IP Rating | IP65 | |
| Certification | CCC, CE, FCC | Place of Origin | Guangdong, China | |
| Brand Name | ACR | Model Number | ACR-TU304 |
Product Description
Specifications

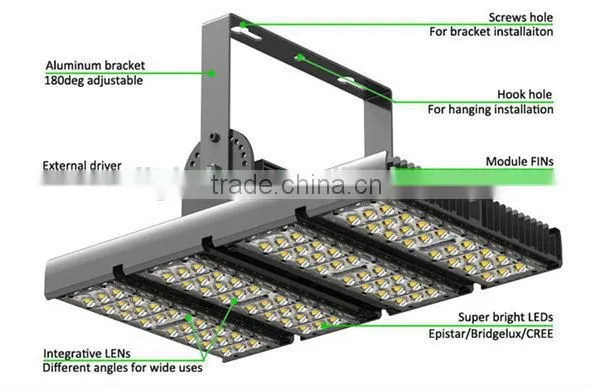

IP65 120W LED Tunnel Light
aluminium body
IP65 waterproof
Bridgelux chip
CE/ ROHS/TUV 5years warranty
IP65 120W LED Tunnel Light
Technical Parameters of IP65 120W LED Tunnel Light
| Electrical paramete | Power (w) | 120w |
| Power Factor | ≥0.98 | |
| Power Efficiency | >93% | |
| Input Voltage(V) | AC85-265V | |
| Light parameter | Led Quantity | 96pcs |
| Luminous Efficiency(lm/w) | 120lm/w | |
| Surface Color | Black | |
| RI (Ra>) | 80 | |
| IP Grade | IP65 | |
| Beam Angle | 60°/90°/150*75° | |
| Color Temperature | Warm White: 2700-3500K | |
| Pure White: 4000-6000K | ||
| Cool White: 6000-7000K | ||
| Comprehensive parameter | Lifespan | ≥50000Hrs |
| Flux Attenuation (%) | ≤5%(5000hours) | |
| Working Temperature | -20°C-+55°C | |
| Storage Temperature | -25°C-65°C(25°C best) | |
| Driver | Meanwell | |
| Lamp Body Material | Aliminum | |
| Physical parameter and Packing parameter | Product Size | 485 x 298 x 278 mm |
| warranty | 5years | |
Application of IP65 120W LED Tunnel Light
Led tunnel light is is widely used in highway,railway,subway,tunnel and underground tunnel lighting,workshop,large warehouse, venueand all kibds of manufactural construction and other places,urban landscape,such as nightscape lighting,billboard.
ACR led flood light ACR-TU100 has 5styles: from 30W to 180W, are processed by coating
and anodizing , greatly enhance corrosion resistance, and waterproof is Ip65.
| Product Modle | ACR-TU301 | ACR-TU302 | ACR-TU303 | ACR-TU304 | ACR-TU306 |
Mudule quanlity | 1pcs | 2PCS | 3PCS | 4PCS | 6PCS |
| Led quanlity | 24pcs | 48PCS | 72PCS | 96PCS | 144PCS |
| Rated power | 30w | 60W. | 90W | 120W | 180W |
| Beam Angle | 120° | 120° | 120° | 120° | 120° |
| Serial parallel | 2P-12S | 4P-12S | 6P-12S | 8P-12S | 12P-12S |
| Net weight | 5.5kg | 6.8kg | 8.1kg | 9.3kg | 12.1kg |
| Luminous | 3300-3600 | 6600-7200 | 9900-10800 | 13200-14400 | 19800-21600 |
| Product Size | 175*298*278 | 255*298*278 | 340*298*278 | 485*298*278 | 598*360*281 |
Acecore Optoelectronics Technology Co., Ltd. (Zhongshan) was founded in 2006, dedicated to the production and sales of high quality LED outdoor light and indoor lights, electronic energy-saving lamps, T4 / T5 tube light indoor lamps and lanterns, total product more than hundred varieties.Company has engineers, senior technicians, and many other professional technology research and development staff and first-class production and testing equipment, guarantee the production of high quality.Strong technical force, complete production testing equipment and strict quality control process to ensure theproduct quality, won the trust of many customers domestic and abroad.
1.Fast and High Qualtiy Service.
We are always ready to provide you the fastest and best service, please feel free to contact us,
we would respon within 24hours.Our salesmen are professionally rained to master
every aspect of products, customer experience is our prior priority.
2. After Sale Service
We offer the preventative maintenance and after sales Service.From the first beginingwhen our
customer know about our products to the deal close, our service to supportthe whole
process.We will take the initiative to solve the problems and troubles after service.
We also offer 3-5 year warranty period.
3.Welcom to visit our factory anytime!
If need we can provide IES and other data materials
so don't hesitate to contact me, NOW!!!! O(∩_∩)O
Q: Are you a proofessional manufaturer?
A: Acecore technology co., LTD. after years of hard work, has formed a based on domestic and export oriented manufacturing enterprises.
Q:What is you main products?
A: LED street light,LED yard lights,LED high bay lights,flood lights,sport lights
Q:Where are your main export markets?
A: Western Europe,Eastern Europe,North America,South America,Northern Europe and so on.
Q: You are not online how to find you?
A:Leave me a message,i will reply with 24hours;
Skype:acr-jessica
