Coaxial Cable Stripping Machine
Features:
Mainly used for processing coaxial cable and special single line, adopt the most advanced rotating turret to improve the accuracy and speed.
Using specific devices and rotary tool axis positioning mode,up to peeling 9 layer,processing of various sizes and sheath wire with no blade change,And the controller of modular equipment can be freely set , cutting diameter digital display.
Technical parameters:
Model | HS-8515(Precision) |
Processing cable types: | coaxial cable, triaxial cable, shielded cable,Rigidity cable, Bellows coaxial cable |
Max cable diameter | up to 15 mm |
Cutting Unit Depth | 0.01mm |
Max Stripping Length | 85mm |
Max Stripping layers | 9 layers |
Drive mode | Motor / ball screw drive(Japan imports) |
Display method | Touch screen |
Blade/Material | 4pcs/Tungsten steel |
Centering piece/Material | 4pcs/Tungsten steel |
Clamp devices | Self-aligning, motor drive, the clamping force control program |
Productivity | 400-500pcs/h(Depending on the length and types of cable ) |
Boot mode | Manual / Sensor |
Supply power | 220V/50HZ |
Rated power | 380W |
Weight | 26KG |
Dimensions | 620X335X218 mm |
Working environment | 0-50 degrees, moderate drying, vibration-free work surface, moderate dryness workshop |

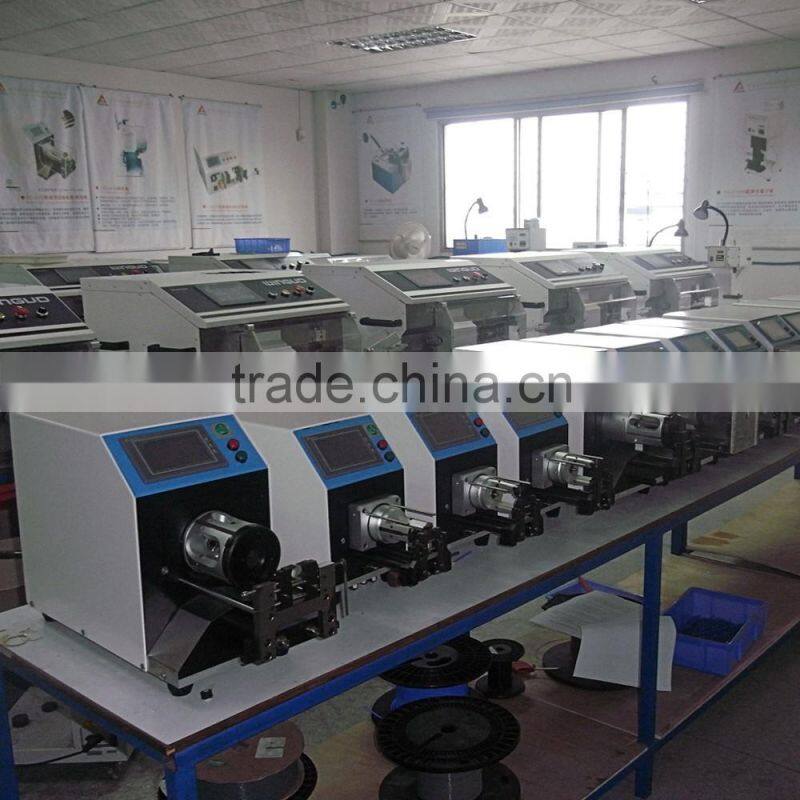

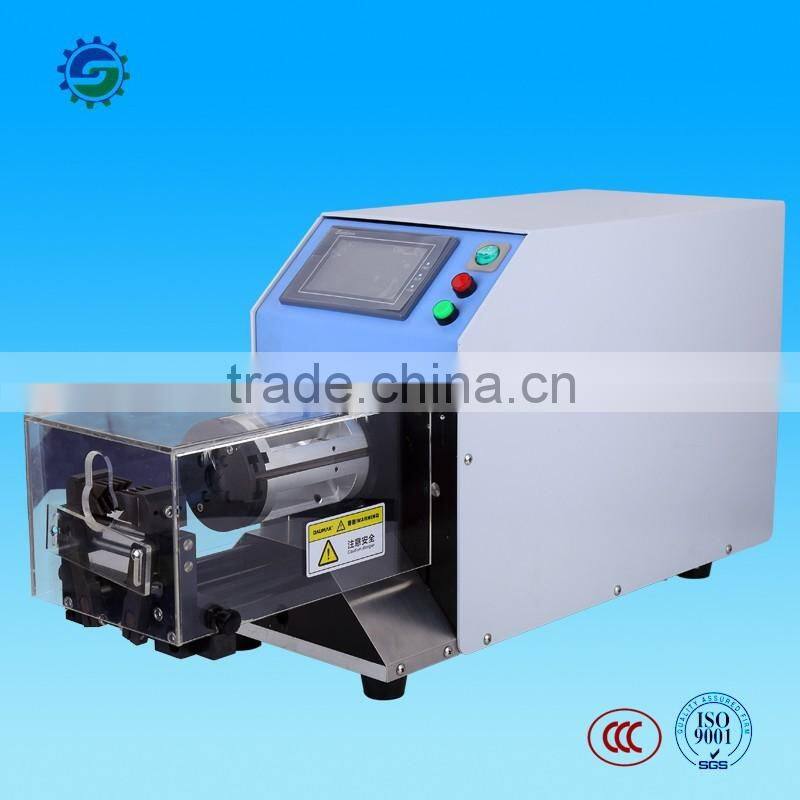

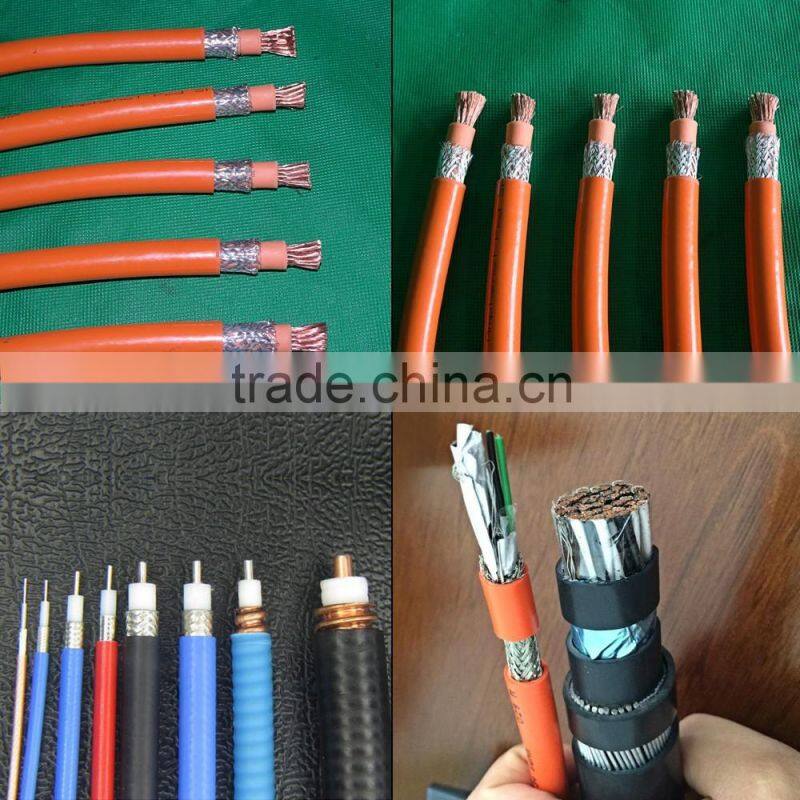

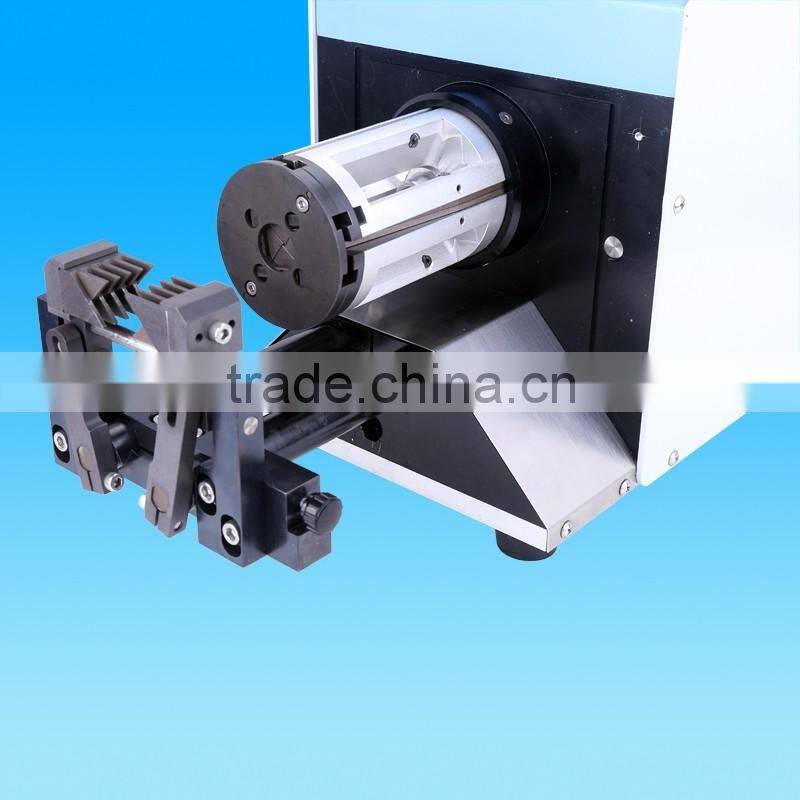

Product Display:
Packing Method:
Our Services
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. HS engineers are here for your assistance.
---After Sale Service
Don’t worry, we are here to help. HS provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
---OEM
HS provides OEM services to our customers.
FAQ:
If u have any question, u can feel free to contact me
