Home > Products > Silicon Carbide (SiC) Ceramics > Silicon Carbide Heat exchangers tubes

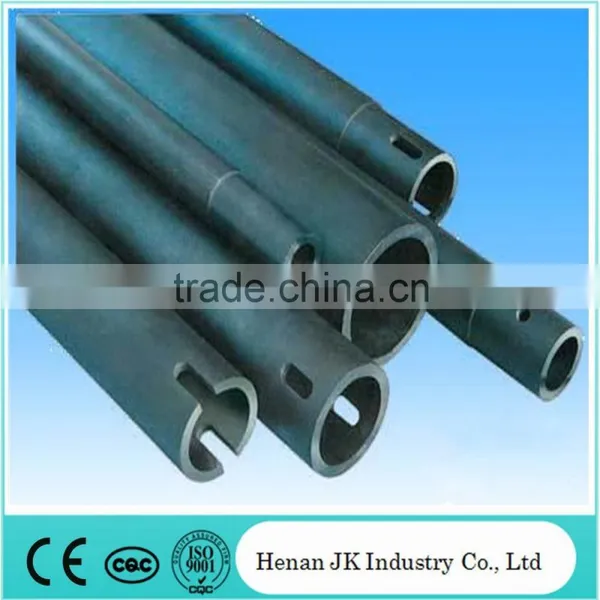

Silicon Carbide Heat exchangers tubes
- Shanghai/Qinddao/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Henan, China | Shape | Pipe | |
| Material | Silicon Carbide (SiC) | SiO2 Content (%) | <=12% | |
| Al2O3 Content (%) | <=0.02% | MgO Content (%) | <=0.02% | |
| CaO Content (%) | <=0.01% | |||
| CrO Content (%) | <=0.01% | SiC Content (%) | >=55% | |
| Model Number | JK-SCR-002 | Brand Name | JK |
Product Description
Due to high loading bearing ability, RSIC roller can be used in roller kiln for production of AL2o3 ceramics and technical ceramics at very high temperature and highly-oxidizing atmospheres; RSIC protection tubes meet the
increased requirements in the field of high temperaturemeasurement with its excellent resistance against erosion and corrosion and high thermal conductivity; in addition, RSIC cooling pipes and special pipes are used in a variety of industrial furnaces.
1. SIC Rollers Standard Specifications:
RBSIC(SiSiC) | |||
Loading Capacity of RBSIC(SiSiC) Rollers | |||
Size of Section (mm) | Wall Thickness(mm) | Concentrated Loading (kg.m/L) | Uniformly Distributed Loading(kg.m/L) |
30 | 5 | 43 | 86 |
35 | 5 | 63 | 126 |
38 | 5 | 77 | 154 |
40 | 6 | 97 | 194 |
45 | 6 | 130 | 260 |
50 | 6 | 167 | 334 |
60 | 7 | 283 | 566 |
70 | 7 | 405 | 810 |
2. Silicon carbide rollers features:
v High temperature tolerance
v Corrosion resistance
v Oxidation resistance.
v Wear resistance.
3. Silicon carbide rollers applications:
The products are mainly of kiln furniture in the manufacture of high tension ceramic insulator, construction ceramics, sanitary wares and domestic ceramics. Also, recystallized carbide refractories are widely used in metallurgy, chemical industries for its unique, excellent properties, the product has up to the advanced intentioned standard.
Our services includes:
v OEM Service Offered/Design Service Offered/Buyer Label Offered.
v We are direct professional manufacturer, we have design team ,sales team, technician team and we have ourself factory in China
v Ensure fast delivery for standard size . Customized size needs 20days.
v English communication with our salesman is okay !
v Best After-sale service! English edited operation manual! 24 hours service! Components arrive your factory within 3-7 days!

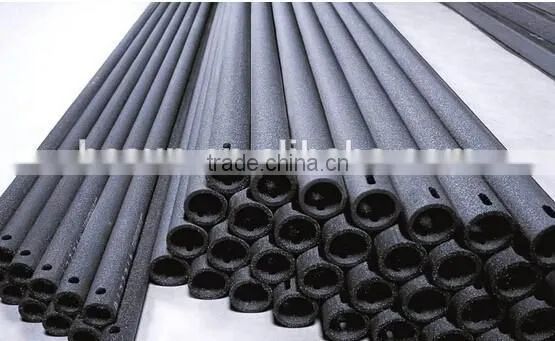

a. The same silicon carbide rollers pic.
b. Other silicon carbide products pic.
PS: Silicon Carbide Ceramic includes silicon carbide plate, silicon carbide fish plate, silicon carbide tube/pipe, silicon carbide roller, silicon carbide beam, silicon carbide crucibles and so on other special types. We can customizabled as for your requirement.
Q1: Are you a manufacture or trader?
A:Factory+trade(mainly factories,at the same time,we operates other related products).
Q2: Can we visit your factory?
A:Sure,welcome at any time,seeing is believing.
Q3: What's the MOQ of trial order?
A:No limit,We can offer the best suggestions and solutions according to your condition.
Q4: Which payment terms can you accept?
A:T/T,Western Union,Moneygram,Paypal are available for us.
Q5: After an order is confirmed,when to deliver?
A:15-25days after deposit.
Q6: Is your company accept customization?
A:We have own factory and excellent technical team,and we accept OEM service.
Q7: How about your company's certification?
A:ISO9001 and Test Report,also we could apply other necessary certification.
Q8: How to slove the quality problems?
A:If the products are not confirmed to customer samples or have quality problems,our compay will be responsible to make compensation for it.
Q9: What is the service life of your tubes?
A:The service life of different tube is unlike.It also depends on your using condition and method.
