Fireproof Bonded Sic Cooling Tubes With Air Holes
- Shanghai/Qinddao/Shenzhen
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Silicon Carbide Tube SiSiC Cooling Air Pipe
-
Bottom Price Silicon Carbide Tube With Cooling Holes(round/square)
-
Sic Tube Silicon Carbide Roller With Factory Price
-
Silicon Carbide Rollers Used in Kiln Furniture
-
Silicon Carbide Heat Exchangers Tubes
-
Silicon Carbide Ceramic Roller Used in Heat Exchanging Unit
Product Details
| Place of Origin | Henan, China | Shape | Pipe | |
| Material | Silicon Carbide (SiC) | SiO2 Content (%) | <=13% | |
| Al2O3 Content (%) | <=0.02% | MgO Content (%) | <=0.02% | |
| CaO Content (%) | <=0.01% | |||
| CrO Content (%) | <=0.01% | SiC Content (%) | >=85% | |
| Model Number | JK-SCC-002 | Brand Name | JK |
Product Description
RBSiC (SiSiC) Cooling Air Tubes have superior characteristic such as corrosion resistance, high temperature tolerance, nondeformation for a long time, oxidation resistance, superior thermal conductivity, bending strength, long time service life, etc..
The series of tubes are widely applicable to the sintering zone under high temperature of roller kilns, which produceshousehold porcelain, sanitary ceramics, building ceramics and magnetic materials.
1. SIC cooling tube Specifications:
Item | Unit | Data |
temperature of application | C | 1380 |
density | g/cm3 | >=3.02 |
open porosity | % | <0.1 |
bending strength | Mpa | 250(20C) |
| Mpa | 280(1200C) |
modulus of elasticity | Gpa | 330(20C) |
| Gpa | 300(1200C) |
thermal conductivity | W/m.k | 45(1200C) |
coefficient of thermal expansion | K-1*10-6 | 4.5 |
rigidity |
| 13 |
acid-proof alkaline |
| Excellent |
2. Silicon carbide cooling tubes properties
v High temperature tolerance
v Corrosion resistance
v Oxidation resistance.
v Wear resistance.
3. Silicon carbide products lines:
v Reaction Sintered Silicon carbide (RBSIC)
v Recrystallized Silicon Carbide ceramic (RSC)
v Nitride Bonded Silicon Carbide ceramic (NSC)
v Sintered Silicon Carbide (SSiC)
4. Silicon carbide cooling tubes applications:
The products are mainly of kiln furniture in the manufacture of high tension ceramic insulator, construction ceramics, sanitary wares and domestic ceramics. Also, recystallized carbide refractories are widely used in metallurgy, chemical industries for its unique, excellent properties, the product has up to the advanced intentioned standard.
Our services includes:
v OEM Service Offered/Design Service Offered/Buyer Label Offered.
v We are direct professional manufacturer, we have design team ,sales team, technician team and we have ourself factory in China
v Ensure fast delivery for standard size . Customized size needs 20days.
v English communication with our salesman is okay !
v Best After-sale service! English edited operation manual! 24 hours service! Components arrive your factory within 3-7 days!

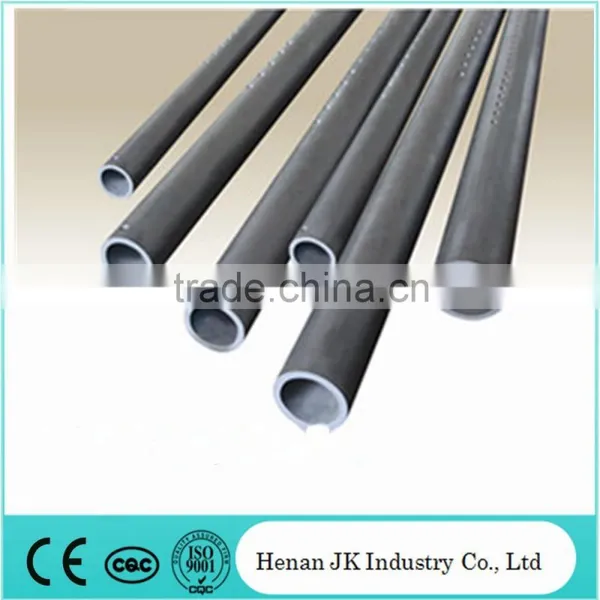

a. The same silicon carbide tube pic.
b. Other silicon carbide products pic.
PS: Silicon Carbide Ceramic includes silicon carbide plate, silicon carbide fish plate, silicon carbide tube/pipe, silicon carbide roller, silicon carbide beam, silicon carbide crucibles and so on other special types. We can customizabled as for your requirement.
Q1: Are you a manufacture or trader?
A:Factory+trade(mainly factories,at the same time,we operates other related products).
Q2: Can we visit your factory?
A:Sure,welcome at any time,seeing is believing.
Q3: What's the MOQ of trial order?
A:No limit,We can offer the best suggestions and solutions according to your condition.
Q4: Which payment terms can you accept?
A:T/T,Western Union,Moneygram,Paypal are available for us.
Q5: After an order is confirmed,when to deliver?
A:15-25days after deposit.
Q6: Is your company accept customization?
A:We have own factory and excellent technical team,and we accept OEM service.
Q7: How about your company's certification?
A:ISO9001 and Test Report,also we could apply other necessary certification.
Q8: How to slove the quality problems?
A:If the products are not confirmed to customer samples or have quality problems,our compay will be responsible to make compensation for it.
Q9: What is the service life of your tubes?
A:The service life of different tube is unlike.It also depends on your using condition and method.
