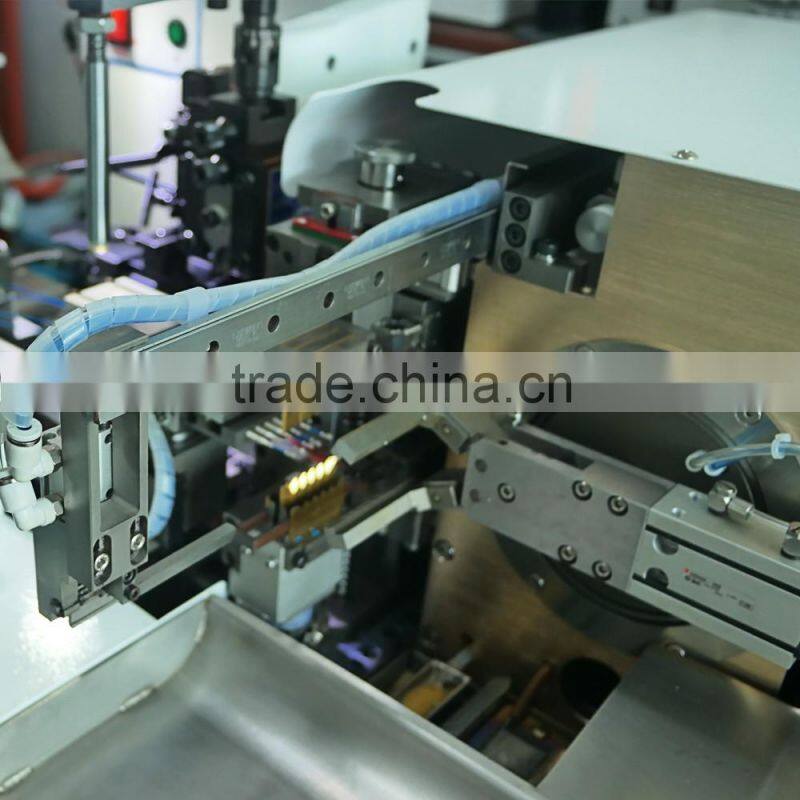

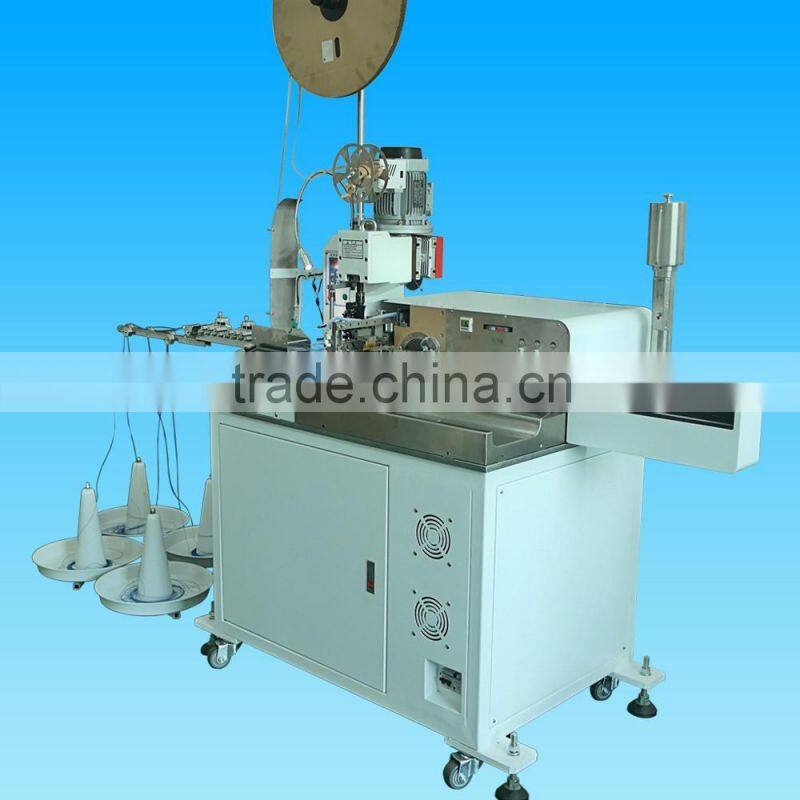

Automatic single head crimp soldering machine(output 5pcs once)
Product Specifications:
Model | HS-03E |
Power supply | Single-phase AC220/50Hz |
Features | Wire cutting, single-ended crimp, double-ended peeling single-ended semi-stripping, twisting single-ended line, single-ended soldering. |
Cutting length | 10mm~400mm(Shortest to be 8mm) the length of 700MM can be customized. |
Cutting tolerance | 0.2mm+0.02*L |
Peeling length | 0 ~ 7mm (7mm above need to be customized). |
Twisted wire length | 3~7mm |
Soldering length | 0.5~7mm |
Air pressure | 5~6KG |
Machine configuration:
1.Computer spatula, without pads.
2.Operation screen KINCO 7-inch full Chinese version.
3.Pneumatic components: SMC
4.Thermostat: Omron
5.The machine adopts Panasonic servo motor: (3 sets)
6.Screw, rail: Taiwan Hiwin
7.Digital Pressure Detection: SMC

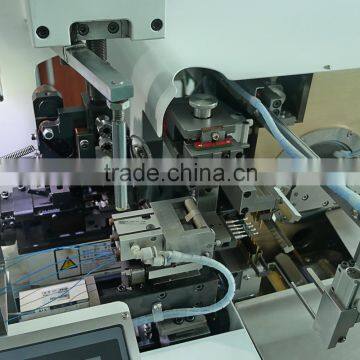

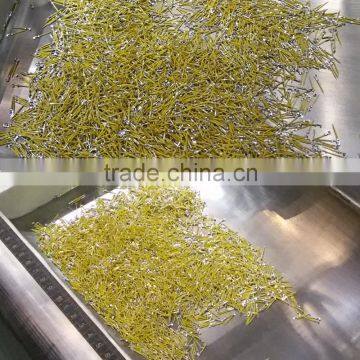

Product Display:
Our Services
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. HS engineers are here for your assistance.
---After Sale Service
Don’t worry, we are here to help. HS provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
---OEM
HS provides OEM services to our customers.
FAQ:
If u have any question, u can feel free to contact me
