Automatic double ends terminal crimping machine
- 50 Set / Sets per Month
- ShenZhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HaiSheng | Model Number: | HS-01G |
Usage: | Crimping |
Product Description

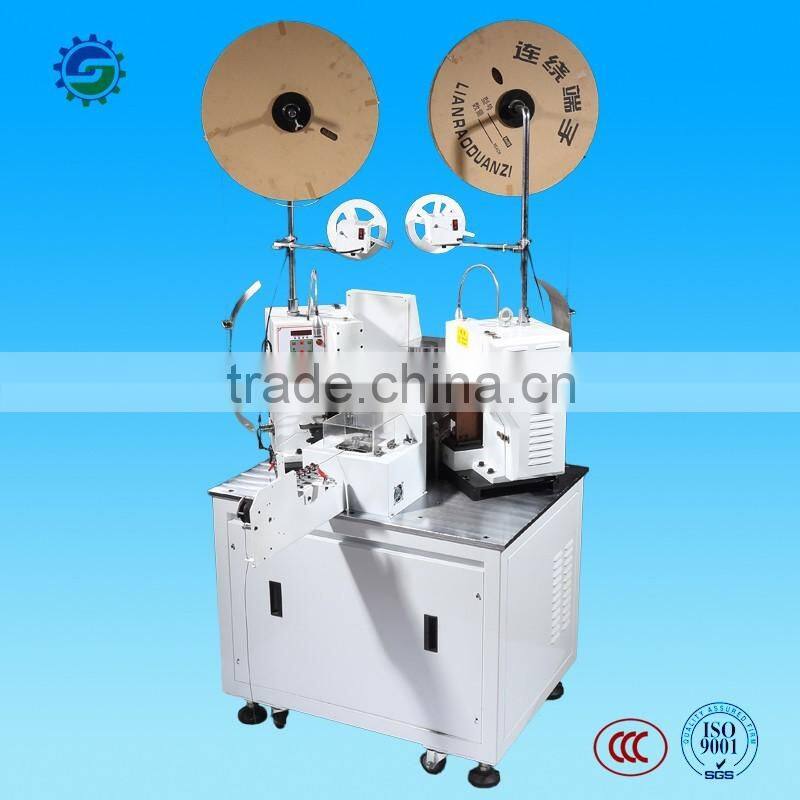

Automatic double ends terminal crimping machine
Introduction:
1.This is a high precision machine
.Adopt motion control high-speed PLC, powerful, stable performance

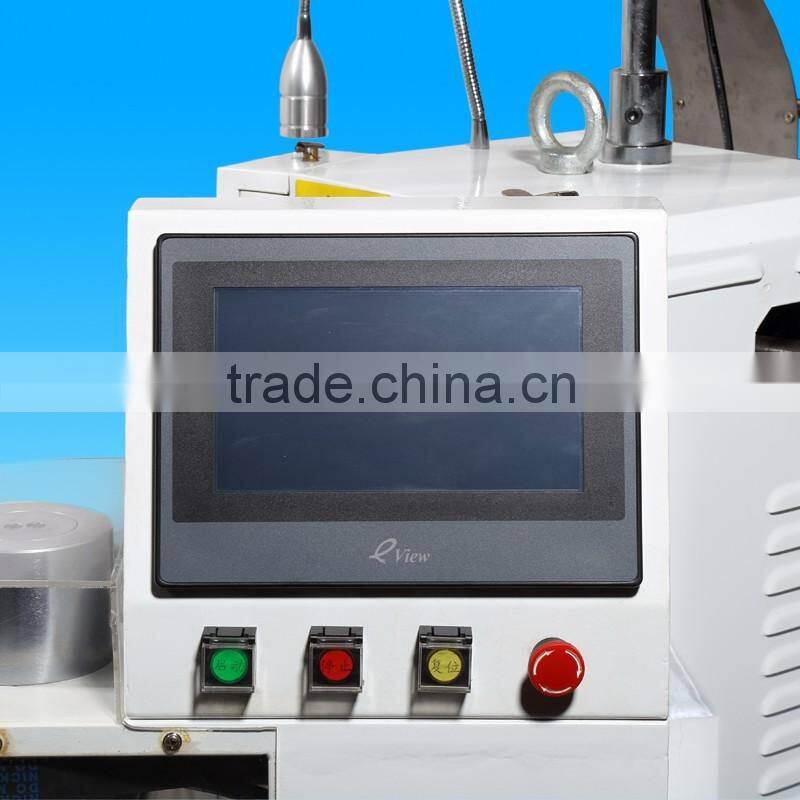

.7-inch TFT HMI screen , easy to operate
.Using precision stepper motor and drive, stable performance;
. SMC pneumatic components, stable, efficient and durable;
.Japan THK rails, stable and durable;
.Japan's Omron detection assembly, precision, and stability.
2. Multifunctional equipment:
.Can be set through the touch screen corresponding to adjust the parameters as follows: full strip both ends, both ends of the semi-stripping, crimping both ends;
.Set the appropriate parameters through the touch screen,Be adjusted: wire length, strip length, incision depth;
. Modify corresponding parameters can be set via the touch screen:parameters include wire length, strip length;
3.High quality machines
.Wire feeding device adopts stepping drive control, wire length, strip length without deviation;
.Wire feeding device uses synchronous stepper motor to feed lines, stable, accurate, wire no pressure mark;
.Detecting device can detect there is no wire, tie wire detection, bad Crimping testing, air pressure detection;
.Crimping device uses a universal mute terminal machines, low noise, stable performance, can carry the cross, straight to send cards
Parameter:
Wire Size | 0.05 ~ 2.0mm2 (equivalent to UL1571. # 30 ~ # 14) wire cortex maximum outer diameter φ4.0 or less |
Production capacity | Crimping both ends: 4800 pcs/ hour (equivalent UL1571 # 30 ~ # 14, cut length 40mm) |
| Sized cut wire, stripping both ends, both ends of the semi-stripping, crimping both ends, automatically setting the cutting depth and stripping mouth depth |
Wire feed speed | 2500mm/sec(MAX) |
Cutting length | 40~9999mm *The shortest cut length, vary depending on the pressing mold used. |
| Cutting length less 100mm variety 0.5mm+(Set cutting length ×0.002) Cutting length over 100mm variety 1.0mm+(Set cutting length ×0.002) |
| Front-end 1.00~15.00/25.00mm(Half stripping length: 2.00~12.0mm) Back-end:1.00~8.00mm (Half stripping length: 2.00~6.0mm) |
Applicable mold | LEF terminal card mode, direct-mode terminal card |
Crimping Machine | 1.5/2.0/2.5TON Universal Silent Terminal Crimping Machine 2 sets |
Control method | 7-inch TFT HMI screen , easy to operate,motion control high-speed PLC |
Detecting device | detection wire, tie wire detection, bad Crimping testing, air pressure detection;
|
Power supply | single-phase:AC100~120V 50/60Hz 10A |
Compressed air | 0.5 MPa about: 140NL/min |
Operating temperature | 5~25℃ (Ambient temperature) |
Working humidity | 30~80%RH(Non-condensing) |
warranty period | 1 year after delivery (excluding consumable items) |
Mechanical Dimensions | 1000 W×800 D×1450 H (mm) |
Weight | 300kg |
| Roll device, terminal scrap cutting device, actinomycetes devices, wire pulling device |
Equipment Display:
Packing Method:
FACTORY SHOW:
Warranty:
Under normal operation condition, this contract mechanical is guaranteed by seller for one year non-pay repairmen after the date of shipment. Otherwise, the damages caused for the force majeure or accidents or reasons beyond control, buyer shall pay charges for parts and the parts freight and the technicians. Normalblade wear is not covered under warranty,but we will promise you at least 0.5 million times of cutting per piece of blade.
FAQ
1):Are you HaiSheng Automation Equipment a trader or a factory?
We are a company specializing in the production of Cable Manufacturing Equipment, such as fully automatic terminal crimping machine, automatic wire stripping and cutting machine, automatic winding wire binding machine, automatic nylon tie belt machine, ultra quiet energy-saving terminal crimping machine, coaxial cable stripping machine, full automatic peeling and twisting wire machine and so on.
2)Whether the equipment can be customized?
We could provide you with custom-made equipment, according to the wire diameter, length, and other factors of production
3) Is your price competitive?
We are the equipment manufacturer, not trading company, we will provide you with the best price
4)Where is your factory located? How can I visit there?
Our factory is located in ShenZhen City, Guangdong Province, China. Nearby the ShenZhen BaoAn Airport,welcome to visit our factory. We will pick you up at the airport.
