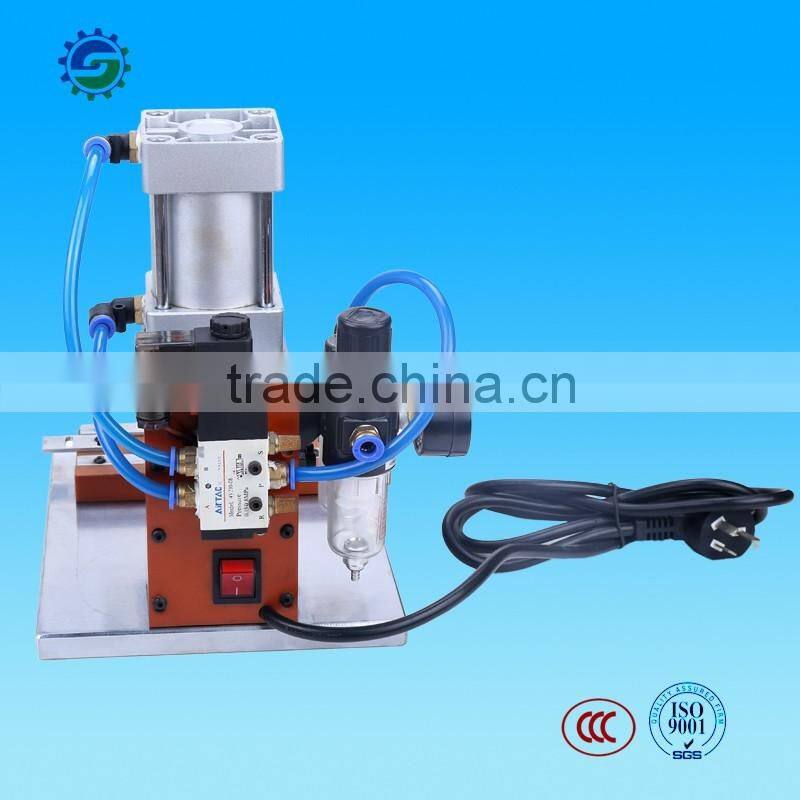

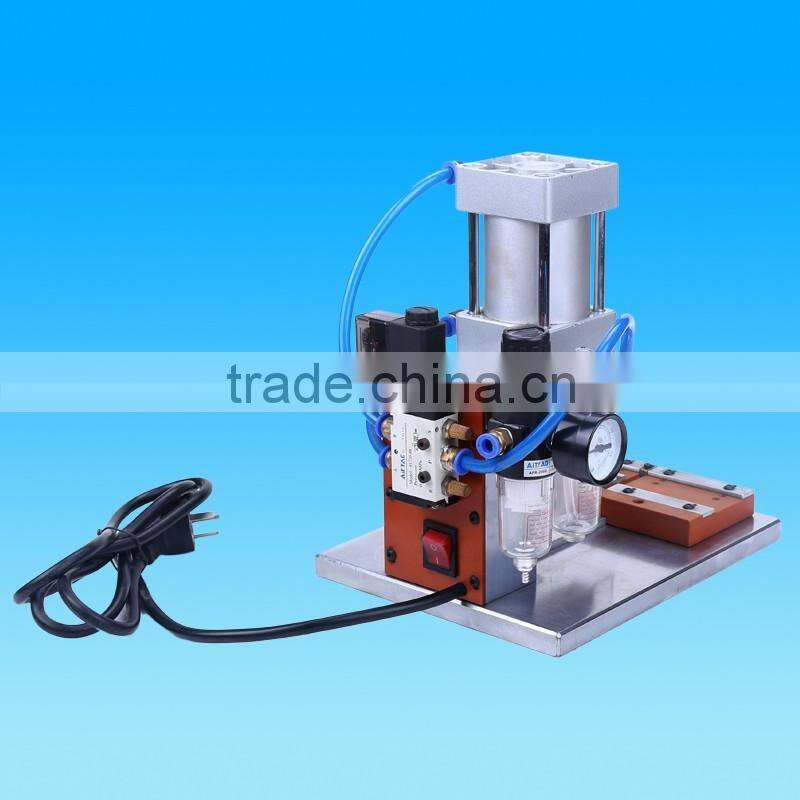

IDC cable automatic crimping machine

IDC cable automatic crimping machine

Characteristic Description:

1.For 8P-64P IDC cable press row thread machine replace hand pressure forceps, Crimping efficiency, stable quality and simple operation.

2.The minimum gas consumption, low failure rate, easy maintenance.

3.Using with Bakelite base , simple operation, wear resistance, and high accuracy.

4.Suitable for IDC products crimping cable used.

5. Stamping automatically after the product feed,then cylinder reset, simple operation.

6. Press 300 to 600 times per hour according to product type.

7.Using 6 ~ 8kg pressure, 220V power supply

8.Body adopts steel for production, solid and durable, external chrome, beautiful and corrosion resistance.

9.Delivery with a Bakelite crimping adjustable block 8 ~ 40P (according to customer requirements for the design and manufacturing)

Technical Parameters:

Instructions:

1.Power switch: ON indicates turn on the crimping cable machine , OFF means turned off.(power supply) 220v/50Hz/60Hz

2.Time relay: digital display large, represents pressed for a long time, whereas small numeric identification pressing short time, according to production needs, choose the time, the general number is 2-3.

3.All terminals placed in the middle of the carriage, front and rear yards mobilize around Aberdeen to locate terminals and cable.

4.After the hand to promote the movable plate, after it hit the micro-switch and after a up and down cylinder trip , then drag out.

Safety Precautions:

1.Before place the terminals and cables.Manual carriage, must be in the outboard.

2.Promote carriage must manually push the carriage on both sides, in order to confirm the stamper would not hurt the hand.

3.In case the machine is not working, please check the time, relay and solenoid valve.

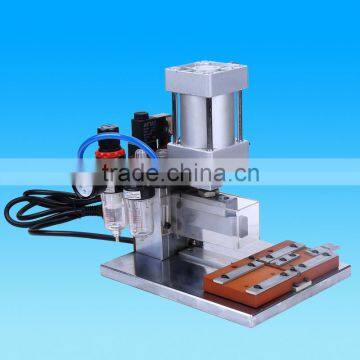

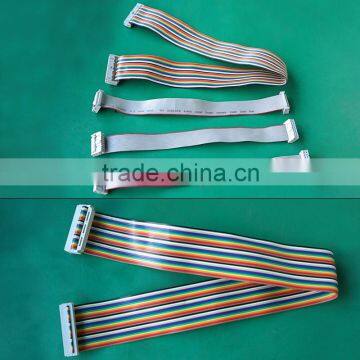

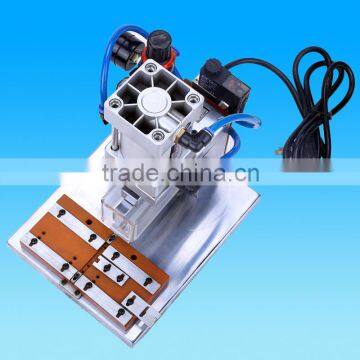

Product Display:

Our Services

---Purchase guidance

If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.

--- Technical Support

In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. HS engineers are here for your assistance.

---After Sale Service

Don’t worry, we are here to help. HS provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!

---OEM

HS provides OEM services to our customers.
