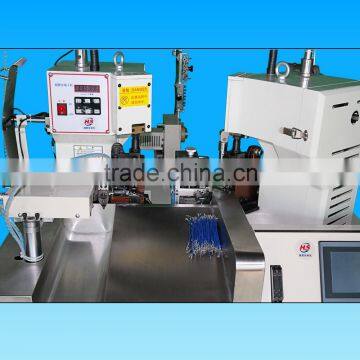

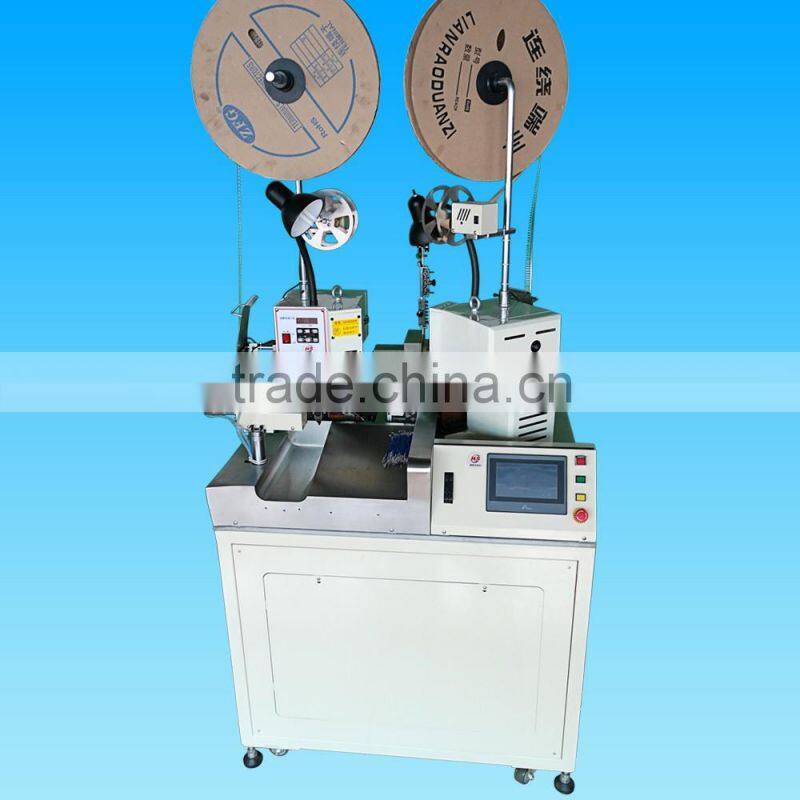

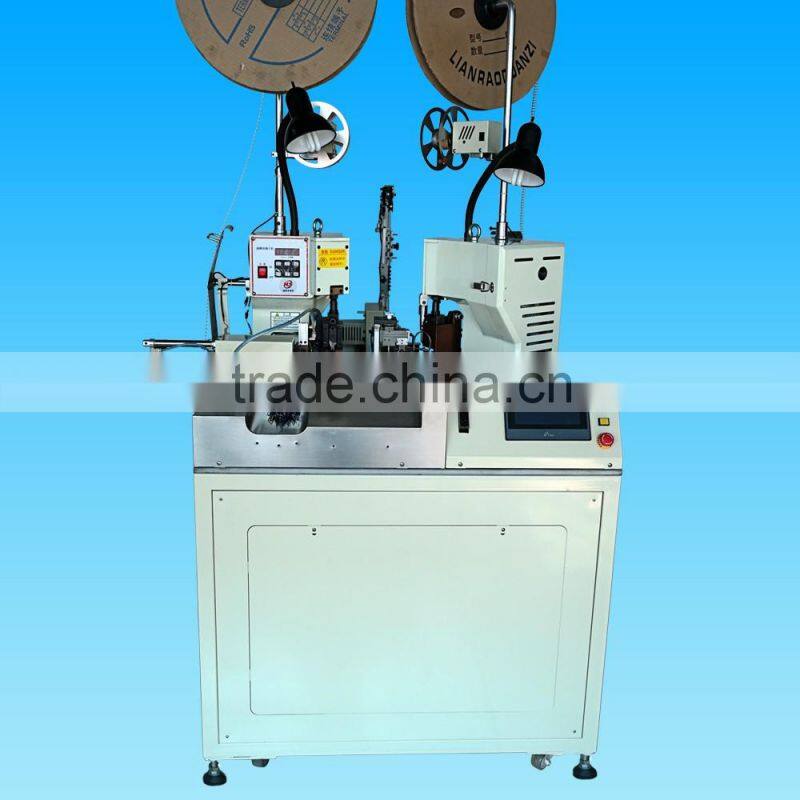

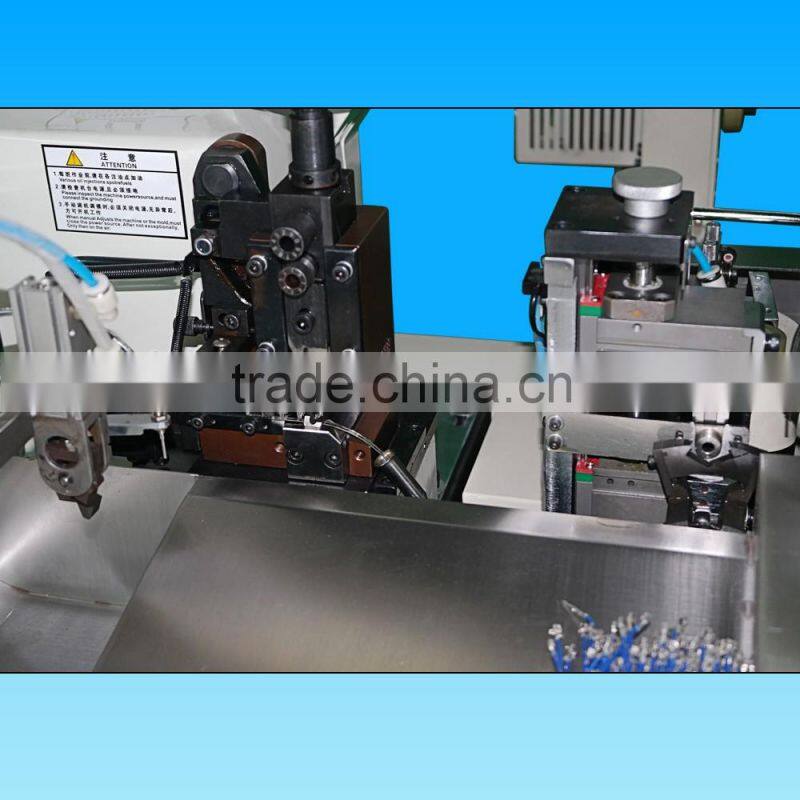

Automatic double ends terminal crimping machine (servo type)
Features:
1.Automatic double ends wire cutting, stripping, crimping,stripping half back end,Set Cutting Machine and the terminal functions in one machine, high precision, fast, stable performance.
2.LCD,Chinese interface, high-definition, simple operation
3.The machine uses servo control, high speed, low noise.
4.Computer touch digital tuning parameters, simple and quick.
5.Detection complete, machine automatic alarm when wire, crimping, pressure and other abnormal
6.Innovative ideas, OTP mode, transverse mode, simply replace the blade, automatically receive terminals, waste paper, scrap off the terminal.
Parameters:
Model | HS-01B |
Features | Computer-controlled, double ends crimping, stripping, semi-stripping, testing |
Production capacity | 1007#18-1571#30 Length 40mm Crimping double ends 0.7 seconds / pcs |
Speed | 4000pcs/ h shortest length 40mm |
Wire cutting length | 40-9999mm |
Cutting accuracy | Deviation ± 0.5mm when cutting length is less than 100mm, Deviation ± 1.0mm when cutting length is greater than 100mm |
Stripping length | 0.1-9.0mm(semi-stripping 3.0-9.0mm) |

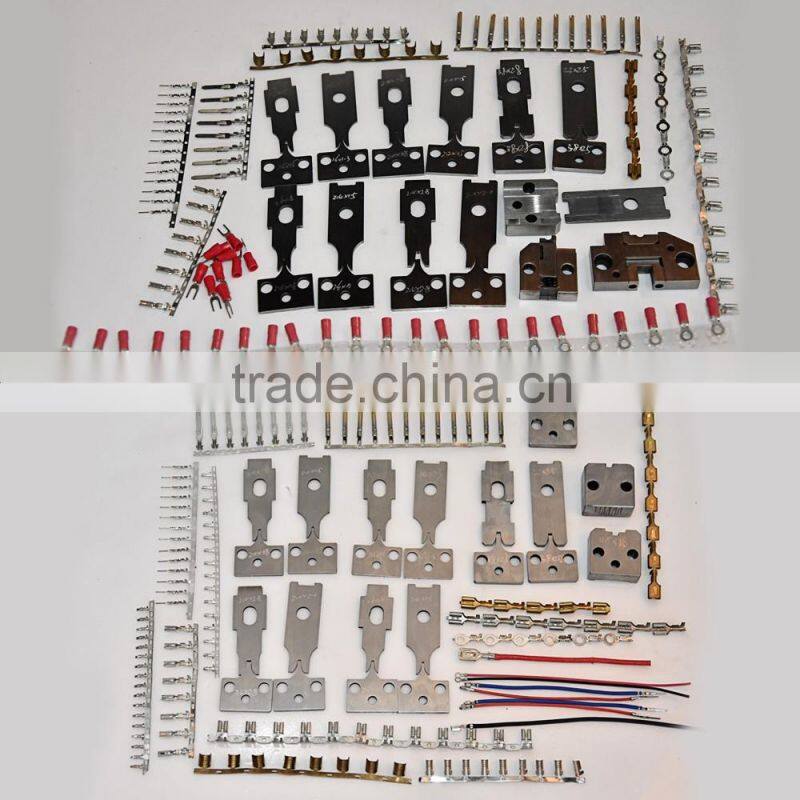

Crimping capacity | 19600N (2T) 2 sets quiet terminal machine (using molds AS42.AS40.AE30) |
Detect Features | Wires or not, abnormal pressing, pressure drop |
Power supply | Single-phase AC220V 50 / 60HZ |
Machine configuration:
- Electric servo + stepper control: 3 sets of servo (Panasonic servo) + 3 sets of steps (Taiwan's Advantech Control)
- The pneumatic components: solenoid valve + Cylinder (SMC)
- Pressure detection SMC
- Screw rails: Taiwan Hiwin
- Color touch screen: KINCO 7 inch full Chinese version
- Full CNC Commissioning: incision size, strip length, crimp depth
- Blade: titanium alloy.
Our Services
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. HS engineers are here for your assistance.
---After Sale Service
Don’t worry, we are here to help. HS provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
---OEM
HS provides OEM services to our customers.
FAQ:
If u have any question, u can feel free to contact me
