1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW Three Phase dc to ac Inverter Supplier's Choice

1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW Three Phase dc to ac Inverter Supplier's Choice thumbnail-1
1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW Three Phase dc to ac Inverter Supplier's Choice photo-1
US$ 800 - 940 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PILOT
Model Number:
PLST13-5K5
Contact Supplier Request Quote Chat Now
Zhuhai Pilot Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhuhai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PILOT
Model Number PLST13-5K5
Output Power Other, 5.5kw
Output Type Triple
Size 487.2*380*262.5mm
Weight About 6kg
Input Voltage Three Phase 380V-480V
Output Voltage 0-380V
Type DC/AC Inverters
Output Frequency 0-300
Output Current 13A



1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW three phase dc to ac inverter





1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW three phase dc to ac inverter





Feature





1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW three phase dc to ac inverter

5.5KW Three Phase Solar Pump Inverter



Designed to converter DC from Solar panel into AC to drive the pump.

  1. Inbuild MPPT + VFD (Variable Frequency Drive)
  2. Big LCD graphic display for Pump/ Solar Panel status and setting . 4 keys for operation
  3. Support AC input when it is rainy day
  4. Auto control motor based on water lever
  5. Pump protection when over-current, over-voltage and over-load
  6. IP65index for higher temperature and high humidity
  7. Reliable for terrible environment, operate temperature -20℃~ +60℃





Technical Info







1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW three phase dc to ac inverter



5.5KW Three Phase Solar Pump Inverter



Parameter/Model PLST13-K75 PLST13-2K2 PLST13-5K5
Inverter rated power 0.8KW 2.5kW 6.6kW
Motor / Pump rated power 0.75KW 2.2kW 5.5kW
Input
DC Voltage (Vdc) Rated: DC 700±50V;
Control MPPT Range: DC540~650V, Max. voltage input < 850V
Current (Adc) 3 6.6 15.6
AC Voltage (Vac) Rated: three phase 380V~480V; 50/60Hz
Range: three phase 323V~528V; Voltage unbalance rate: ≤3% ; Allowed frequency fluctuation: ±5%
Current (Aac) 2.8 6.1 14.3
Output
Voltage range (Vac) 0-380 0-380 0-380
Rated Current (A) 2.5 5.5 13
Overload 1 mintue for 150% overload; 10 seconds for 180% overload; 0.5 second for 200% overload
Frequency (Hz) 0-300 0-300 0-300
Phase 0-300 Three Three
Protection
Anti dry-running √ √ √
Water level control √ √ √
Mechanical
Dimension(mm) 487.2x380x262.5 487.2x380 x262.5 487.2x380 x262.5
Cooling-down method Forced-air-cooling





Photograph





1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW three phase dc to ac inverter





Detailed Images





1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW three phase dc to ac inverter

1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW three phase dc to ac inverter







Application





 1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW three phase dc to ac inverter



1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW three phase dc to ac inverter



1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW three phase dc to ac inverter

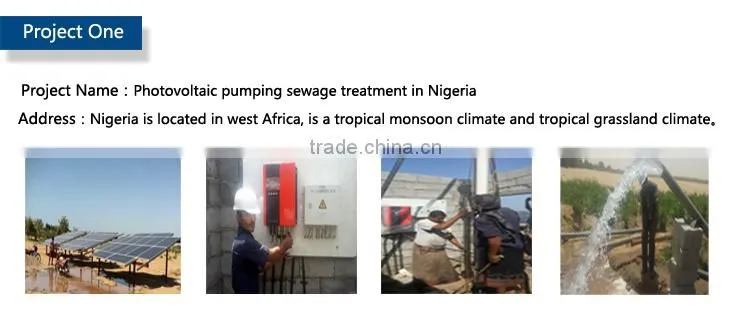

Project Sample

 1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW three phase dc to ac inverter





Africa main grid is very unstable and short. The generator should be manual operation, noise and need lot of petrol.

PLST three phase AC solar water pump inverter can well solve these shortcomings.

The system specialized integrated the mains switch and MPPT operation mode and variable frequency drive system are able to automatically switch to the battery power supply when the power failure.



Widely used in desalination, desert control, agricultural irrigation, forestry, fountain,

grassland animal husbandry, scenic area, water treatment engineering, etc



Three Phase Solar Pump Drive is very popular as the stability quality.

1.5kW 2.2kW 4kW 15kW 18.5kW 22kW 30kW three phase dc to ac inverter
