Agricultural Irrigration IP65 Three Phase Solar Water Pump Control

FOB Price

US$ 800 - 940 / Piece

1 Piece(Min. Order)

Port Zhuhai Port
Payment TermsMoney Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	PILOT
Model Number	PLST13-5K5	Output Power	Other, 5.5kw
Output Type	Triple	Size	487.2380262.5mm
Weight	About 6kg	Input Voltage	Three Phase 380V-480V
Output Voltage	0-380V	Type	DC/AC Inverters
Output Frequency	0-300	Output Current	13A

Product Description

agricultural irrigration IP65 three phase solar water pump control

Feature

5.5KW Three Phase Solar Pump Inverter

Designed to converter DC from Solar panel into AC to drive the pump.

Inbuild MPPT + VFD (Variable Frequency Drive)
Big LCD graphic display for Pump/ Solar Panel status and setting . 4 keys for operation
Support AC input when it is rainy day
Auto control motor based on water lever
Pump protection when over-current, over-voltage and over-load
IP65index for higher temperature and high humidity
Reliable for terrible environment, operate temperature -20℃~ +60℃

Technical Info

5.5KW Three Phase Solar Pump Inverter

Parameter/Model		PLST13-K75	PLST13-2K2	PLST13-5K5
Inverter rated power		0.8KW	2.5kW	6.6kW
Motor / Pump rated power		0.75KW	2.2kW	5.5kW
Input
DC	Voltage (Vdc)	Rated: DC 700±50V;
		Control MPPT Range: DC540~650V, Max. voltage input < 850V
	Current (Adc)	3	6.6	15.6
AC	Voltage (Vac)	Rated: three phase 380V~480V; 50/60Hz
		Range: three phase 323V~528V; Voltage unbalance rate: ≤3% ; Allowed frequency fluctuation: ±5%
	Current (Aac)	2.8	6.1	14.3
Output
Voltage range (Vac)		0-380	0-380	0-380
Rated Current (A)		2.5	5.5	13
Overload		1 mintue for 150% overload; 10 seconds for 180% overload; 0.5 second for 200% overload
Frequency (Hz)		0-300	0-300	0-300
Phase		0-300	Three	Three
Protection
Anti dry-running		√	√	√
Water level control		√	√	√
Mechanical
Dimension(mm)		487.2x380x262.5	487.2x380 x262.5	487.2x380 x262.5
Cooling-down method		Forced-air-cooling

Photograph

Detailed Images

Application

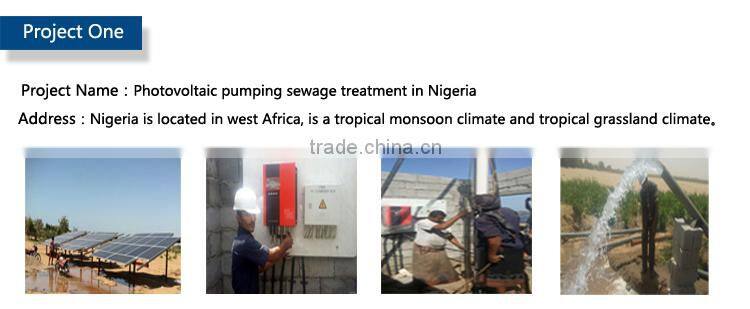

Project Sample

Africa main grid is very unstable and short. The generator should be manual operation, noise and need lot of petrol.

PLST three phase AC solar water pump inverter can well solve these shortcomings.

The system specialized integrated the mains switch and MPPT operation mode and variable frequency drive system are able to automatically switch to the battery power supply when the power failure.

Widely used in desalination, desert control, agricultural irrigation, forestry, fountain,

grassland animal husbandry, scenic area, water treatment engineering, etc

Three Phase Solar Pump Drive is very popular as the stability quality.
