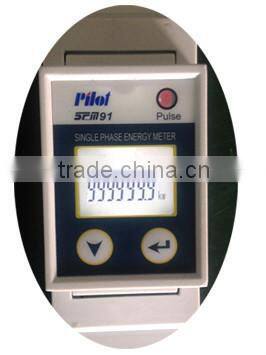

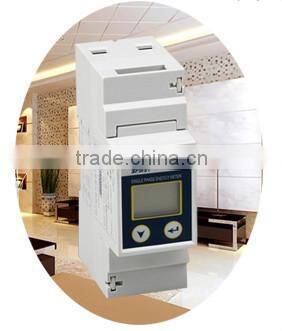

PILOT SPM91 Small LCD Display With Modbus Single Phase Smart Energy Meter

PILOT PMAC901E Small LCD display with modbus single phase smart energy meter

smart energy meter

modbus energy meter

DIN Rail energy meter

CE certificate

Basic Function

•  Suit for 230V & 120V AC low voltage system
•  Measure and display U, I, P, kWh
•  6 +1 digits LCD display (999999.9 kWh)
•  LED indicates pulse output
•  Password protection
•  One key for up/down page, one key for programming
•  Small size: 100*36*65mm
•  RS485 port , MODBUS-RTU communication protocol
•  35mm DIN rail installing, standard DIN ED5002
•  Standard: IEC62053-21

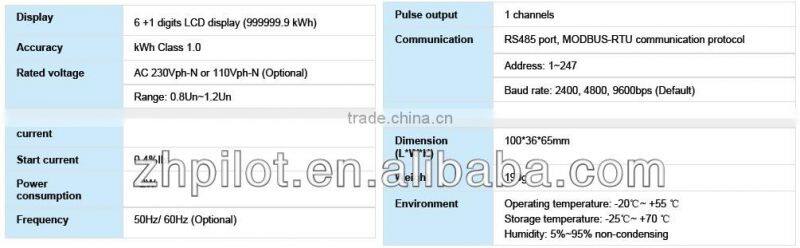

Technical Specification

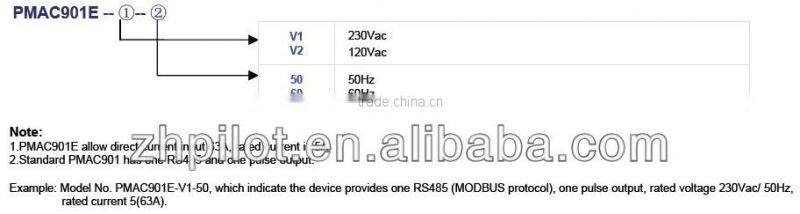

Order Information

Testing software for free
