PILOT SPM33 LCD Harmonic Dual Source Three Phase Digital Power Meter

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 100000 Unit / Units per Month
Port Zhuhai port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Pilot
Model Number	SPM33	Measuring Current Range	0 ~ 650V
Measuring Voltage Range	0 ~ 65,000A	Accuracy Class	class 1/0.5s
Operating Temperature	-10℃~+55°C	Dimensions	96 x 96 x 18 mm

Product Description

SPM33 LCD Harmonic dual source three phase digital power meter

Product Description

Feature

ØEconomical multifunction power meter

ØSuit for voltage distribution system up to 650kV

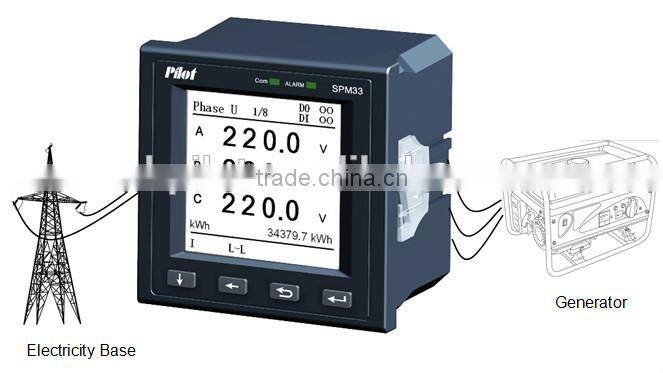

ØDuel Source kWh phasetrac record seperately electricity base & generator supply

Ø31st Harmonic analysis, THD

ØOne RS485, support MODBUS-RTU protocol

ØPhase sequence adjustment

Ø2 status input (standard)

ØAlarm setpoint (optional)

ØBar chart display of current and voltage harmonics

Basic function

ØVoltage—Ua, Ub, Uc, Uab, Ubc, Uca,

ØVoltage unbalance rate – UL-L unbal, UL-N unbal

ØCurrent—Ia, Ib, Ic, In

ØCurrent unbalance rate –I unbal

ØActive power – Pa, Pb, Pc, ∑P

ØReactive power –Qa, Qb, Qc, ∑Q

Ø Apparent power—Sa, Sb,Sc, ∑S

Ø Power factor—PFa, PFb, PFc, ∑PF

Ø Frequency--F

Ø Active energy—kWh

Ø Reactive energy– kvarh

Ø Apparent energy– kVAh

Ø Demand and Max. record for I, P, Q, S

Ø 31st Harmonic , THD

Ø Dual Source kWh record both Grid & Generator (Import & Export)

Ø 2 DI, RS485

Optional function

Ø 2 relay outputs (optional)

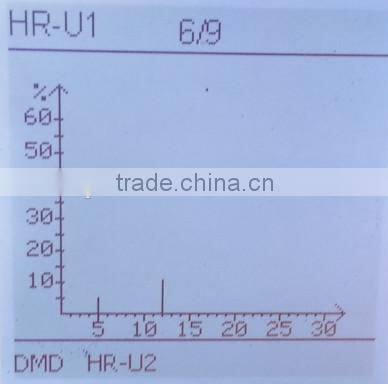

Bar Chart display for Harmonic analysis

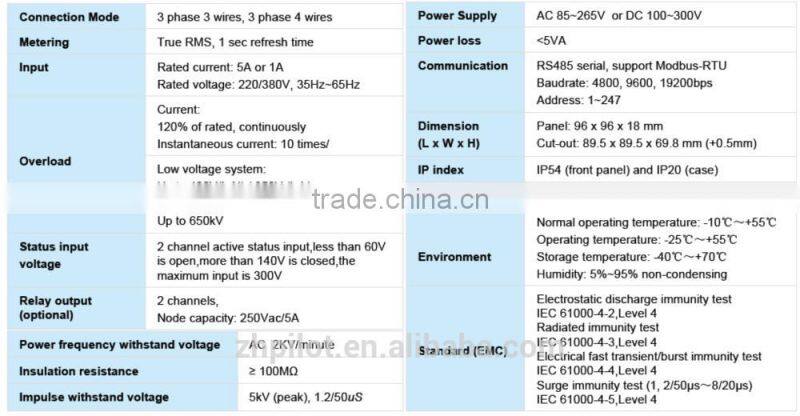

Technical specification

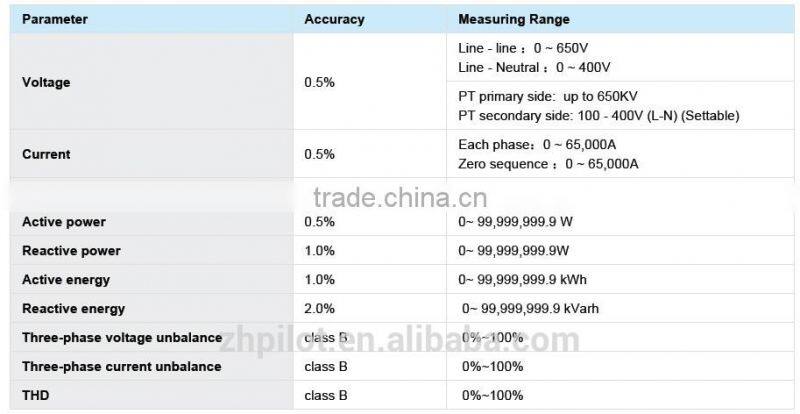

Accuracyof electricalparameters

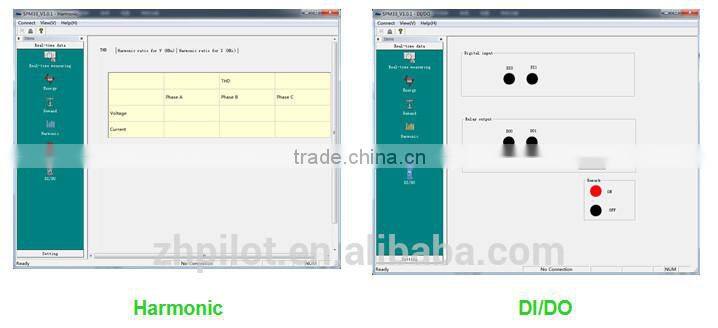

Testing software

Testing software

Dimension

Dimensions

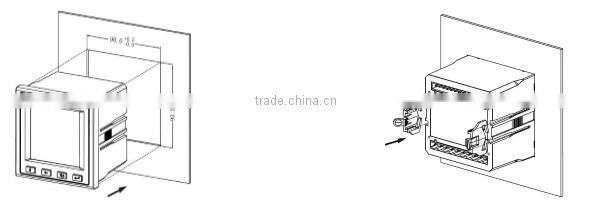

Installation

Order Information

unct
