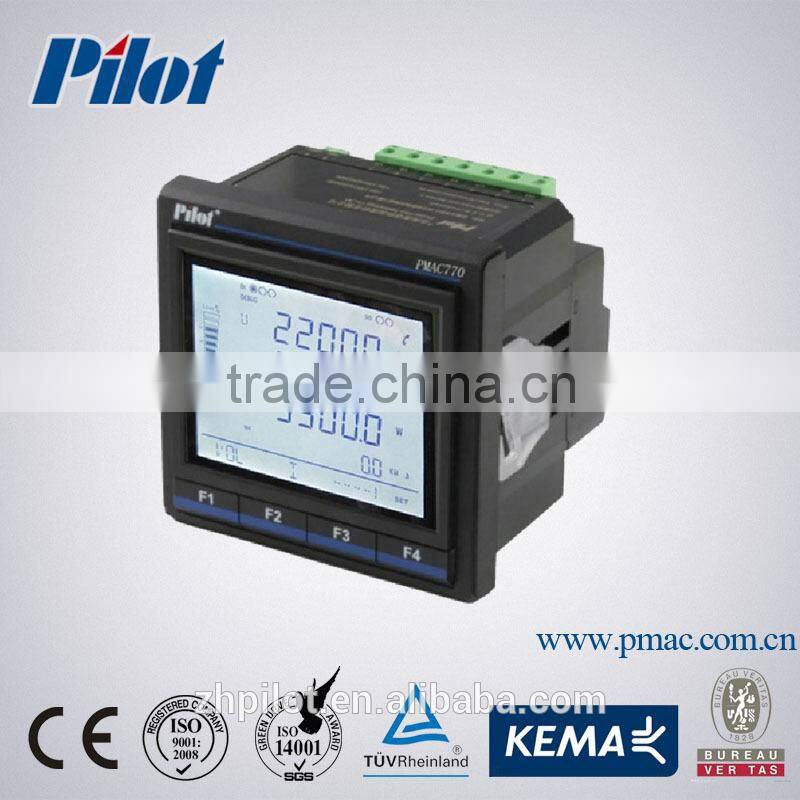

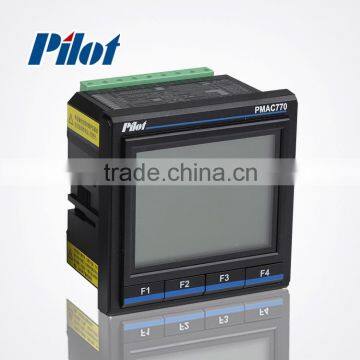

PILOT PMAC770 TCP IP Power Meter

Name: PILOT PMAC770 TCP IP Power Meter
Brand: Pilot
SKU: 103624593
Availability: InStock

Zhuhai Pilot Technology Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Pilot

Model Number:

PMAC770

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhuhai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Pilot

Model Number PMAC770

Measuring Current Range 0~999999.9

Measuring Voltage Range 0~999999.9

Accuracy Class 0.5%

Operating Temperature -10℃~ +55 ℃

Dimensions 96 x 96 x 12 mm

PILOT PMAC770 TCP IP Power Meter

Features:

1. Suit for LV/ HV voltage system

2. New appearance and design

3. Self-testing phase sequence error

4. Real-time measurement

5. Demand calculation mode is programmable

6. Multi-tariff billing, historical data of 31 days and 12 months

7. Power quality analysis

8. Optional module and upgradeable

9. Setpoint alarm

10. High accuracy

11. Small size and thin style

12. Standard IEC62053-22/ 23, CE. KEMA

13. Support MODBUS-RTU and BACnet MS/TP

Basic function:

Basic Function
Real time metering	Voltage	Ua, Ub, Uc, Uab, Ubc, Uca, UL-L avg, UL-N avg
	Current	Ia, Ib, Ic, In, Iavg
	Power	Pa, Pb, Pc, ∑P, Qa, Qb, Qc, ∑Q, Sa, Sb,Sc, ∑S
	Power factor	PFa, PFb, PFc, ∑PF
	Energy	kWh and kvarh (4 quadrant)
	Frequency	F
	Demand & Max. demand	Dmd_I, Dmd_P, Dmd_Q ,Dmd_S
	Max./ min. value	Max./ min. (U, I, P, Q)
	Multi-tariff energy
Power quality analysis	Unbalance	U_unbl, I_unbl
	Harmonic (31st )	THDu, THDi, TOHDu, TOHDi, TEHDu, TEHDi, HRU, RHI
	Harmonic RMS (0-31st )	Harmonic RMS-U, Harmonic RMS-I
	Harmonic energy (1st -13th )
	Voltage crest factor, current K factor, Load rate, Voltage deviation, Frequency deviation
Setpoint alarm	Over/ under limit alarm
3DI +2 DO	3 status input + 2 relay output
RS485	Modbus-RTU protocol
Record function	SOE (event log), Real-time clock ( yyyy-mm-dd hh:mm:ss)
	Voltage/ frequency deviation, Voltage unbalance record

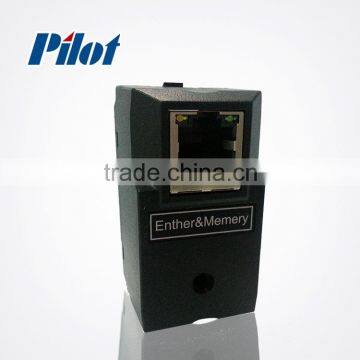

Optional Module
S	2 status input	P	Profibus
R	2 relay output	AI	2 analog input (4-20mA)
C	The 2nd RS485	AO	2 analog output (4-20mA)
Ep	2 pulse output	BA	BACnet protocol (BTL certificate)
		M	8 M Bytes
