PILOT PMAC3624 Power Monitor Web Server





Introduction



PMAC3624 is a small power distribution monitor server, in which data acquisition, power distribution monitor and web function was integrated together, any networked devices, for example, computer, smart-phone, iPad, can access server ,system monitoring can be done any time any where, your power distribution runs in more safety.





Application





Application



Ø Monitor power distribution running, enhance system more safety

Ø Focus high-consumption device operation, ensure device runs more smoothly

Ø Consumption curve comparison analysis in time to time, or between feeders, help to find energy saving opportunity







Product Description



Functions and Features



  • Max. Connect 128pcs Power Meter / Energy Meter

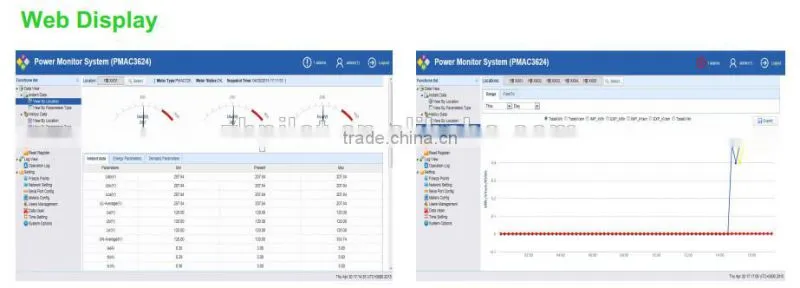

  • Web browser access

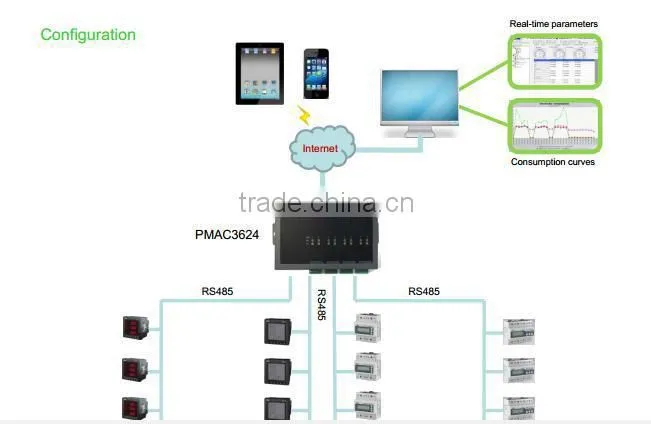

  • Any networked device, for example, computer, smart-phone, iPad, can access server, easy to use;
  • Real-timeparameter monitor
  • Exported .csv formatHistorical data for analysis
  • User-ID/Password login, protect system
  • Remote system upgrade
  • Consumption curve comparison analysis
  • Meter off-line alarm



Different Languages Web system (English / Spainsh...)




Alarm for the meter

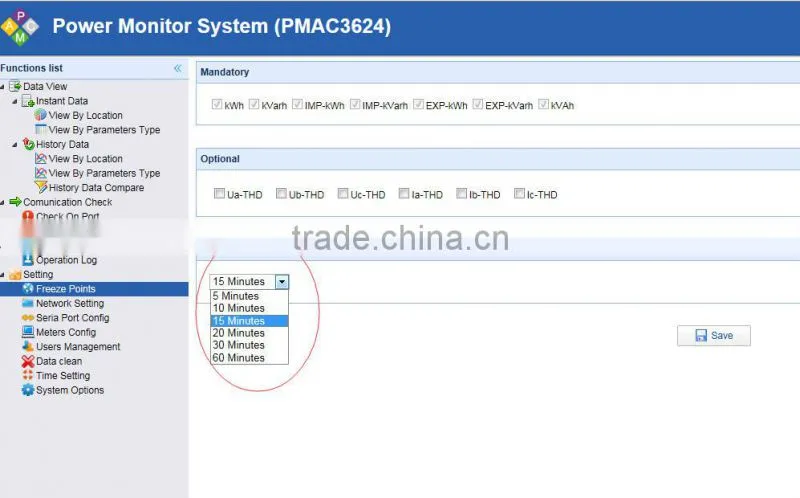

Set Memory Time interval

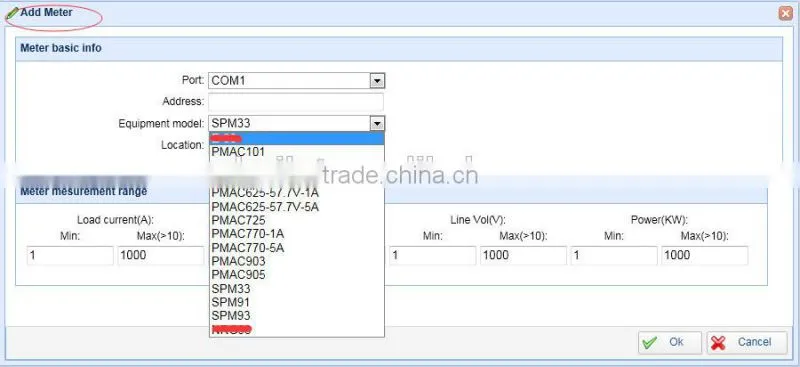

Very easy to add Meter, No need to add the  MODBUS register list one by one




User authority Setting, different user has different authority.

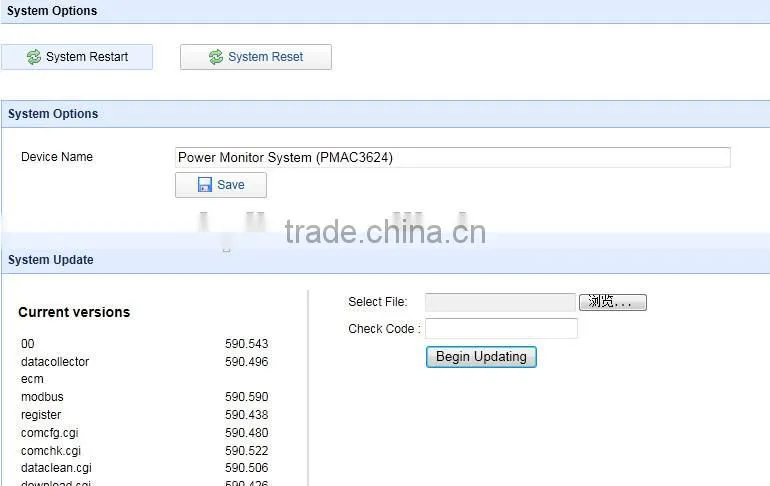

Support Online update system software









Dimension











 PMAC3624 can connect all PILOT meter



Contact us for DEMO system User and Password.



Skype: tilley.lin







Solution



Popular products to connect PMAC3624





SPM91 DIN Rail Single Phase Energy Meter

http://preview.china.cn/product/60153150417-215314014/SPM91_Din_rail_MODBUS_single_phase_digital_Energy_Meter.html





SPM93 DIN Rail Three Phase Energy Meter



http://zhpilot.en.china.cn/product/60153138415-215314014/SPM93_Data_Record_Three_Phase_MODBUS_Din_Rail_Energy_Meter.html





SPM33 Mulitfunction Power Meter



http://zhpilot.en.china.cn/product/1902478439-50323645/SPM33_Three_Phase_Multifunctional_Power_Meter.html





PMAC770 Multifunction Power Meter (High performance)



http://zhpilot.en.china.cn/product/698732522-50323645/PMAC770_Modbus_communication_power_meter_Bacnet_power_quality_analyzer.html
