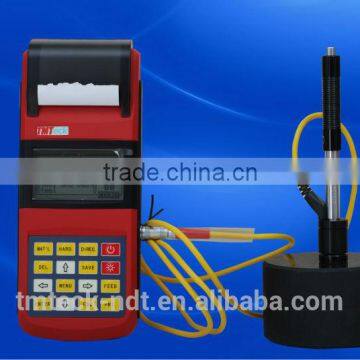

THL370 Portable Hardness Tester

Advantages

l  Largest screen 3 inch , showing all functions and parameters.it is the largest screen of leeb hardness tester in China , easy read and operate.

l   The best impact device in China we offer ,stable,ageing resistance,through exam ,we can 2 years long time using ,but others can not.

l  Test at any angle, even upside down.

l  Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.

l  Seven impact devices are available for special application. Automatically identify the type of impact devices.

l  Large capacity memory could store 600 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.

l  Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.

l  Batteryinformation indicates the rest capacity of the battery and the charge status.

l  User calibration function.

l  USB port with the PC humanity multi-functions data proceeding software.

l  Original imported high speed thermal printer support the immediate printing function. It can save data permanently.

l  NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).

l  Auto power off to save energy.

l  Excellent after-sale service system for high quality products---3 years’ guarantee and all life maintenance. Easy to buy and comfortable to use.

Main Application

l  Die cavity of molds

l  Bearings and other parts

l  Failure analysis of pressure vessel, steam generator and other equipment

l  Heavy work piece

l  The installed machinery and permanently assembled parts

l  Testing surface of a small hollow space

l  Material identification in the warehouse of metallic materials

l  Rapid testing in large range and multi-measuring areas for large-scale work piece

Technical Specifications

l  Measuring range:HLD(170~960)HLD

l  Measuring direction:360 drgree.

l  Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS

l  Display:3 inch screen ,one of the biggest in China.

l  Data memory: 600 groups max.(relative to impact times 32~1)

l  Printing paper: width is(57.5±0.5)mm, diameter is 30mm

l  Battery pack: 6V NI-MH

l  Battery charger: 9V/500mA

l  Continuous working period:about 150 hours(With backlight off, no printing)

l  Communication interface:USB1.1

l  Outline dimensions:210mm*85mm*35mm

Configuration
