18650 Automating Welding Machine for New Energy-powered Vehicles Power Battery Packs Electric Vehicles Electric Toy Car Battery

18650 automating welding machine

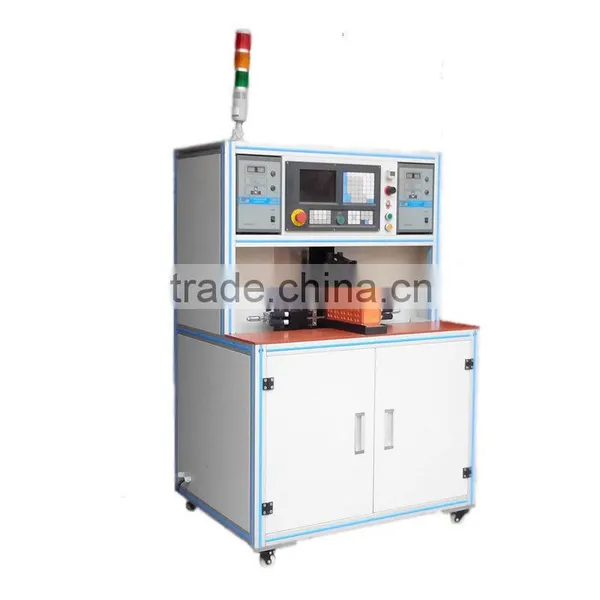

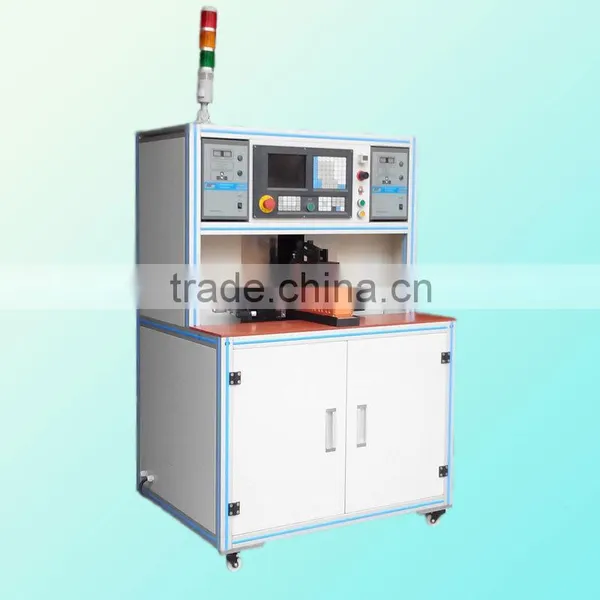

Name :TWSL-600 CNC automatic spot welding

1 , Fully automatic operation. The battery pack into the device to run automatically, auto fixed clamping welding fixture, sent after the completion of welding the welding station.

2 , Operating reminder. When the welding is completed a set of products equipment automatically send voice prompts to alert workers to operate, reduce labor intensity.

3 , Automatic air pressure detecting when the working pressure is less than the set requirements will automatically stop, etc. and then complete the welding meet the requirements.

4 , Intelligence: According to their own customers the flexibility to design their own products and processing procedures, the presence of the machine called at any time, very convenient.

5 , Ease of use: Programming Learning is extremely simple to learn and use, one hour can learn all programming, no cultural foundation requirements.

6 , Pre-production: It can be preset to produce the combination of the number reaches the number of automatic stop welding.

7 , Welding Quality: Emotion automated production spot welding because a high quality stability.

8 , Multifunction adaptation fixture design to reduce the number of product fixture.

9 , Aesthetic design: Beautiful appearance, make your shop beauty to enhance the quality will be more satisfied customers to visit your production capacity.

Technical Parameters:

Model  : TWSL-600

Input Power: 220V 50/60Hz  16KVA

Gas source : >0.4MPa  <0.9MPa

Applicable products: 18650,26650 cylindrical cells combination welding

Welding speed: 2S/pcs

Table speed: 25M/mis

Workpiece size : 320-160mm

Start:  automatic

operating hours : 20 hours a day

Workpiece handling:  Labor:

Control System: General NC control:

Number of controlled axes: 2-3 axis

Programming mode: NC instruction:

Operation and programming difficulty: easy

Drive mode: Stepper  (default) / servo

External dimensions: 960 * 720 * 1520

Total Weight: 190KG (including welding)

Welding parameters:

model: TWSL-200

power: 10KVA (max)

Input Frequency: 50/60Hz

Input voltage: 220VAC

Input gas source: 7-8 Bar (kg / cm)

Primary current: 5-30A

Primary short-circuit current: 1500A

The whole structure: Integrated structure

Welding arm structure: Telescopic swing control

Electrodes to the body distance: 100 mm (Scalable adjustable)

Cylinder diameter: 20 mm

The number of pulses :  0-9

Pulse energy level: 0-99

Automatic compensation range: + 40V - 40V

Panel digital display: 7-segment LED display

External dimensions : 445 * 224 * 343 mm

Gross weight : 42 kg

FAQ

1 , What is the product ?

It is an automating welding machine for 18650 ,26650 battery , use for 18650 26650  welding .

2 , how is it performance ?

It is automating , more effectioncy , it can replace 10-15 staffs works ,it can help you increase production run ,

and decrease production cost .

3 , what about the quality guarantee and after-sale service ?

we provide one year quality guarantee , full time after-sale service .

4 , we want to open an automating system for lithium battery , how it can do that ?

Yes , we can provide you the battery automating system and solution .
