lithium ion battery making&production machine/line/plant/equipment 5 channel automatic sorter sorting machine battery sorter

twsl-500/18650 five-speed automatic sorting machine ,lithium ion battery making&production machine/line/plant/equipments,car&electric motor cycle battery making machine/equipment of spot welding machine,
use as 18650/26650 power battery pack auto CNC spot welding/battery cell spot welder/battery tab spot welder/automotive spot welders/car battery production line/car power pack making machine/car battery assembly line/car battery assembly line/car batteries factory.battery sorter machine 18650 battery making machine

Payment & Shipping Terms:

18650 five-speed automatic sorting machine ,18650 automatic sorterDescription

Number:twsl-500

Description

Product Details

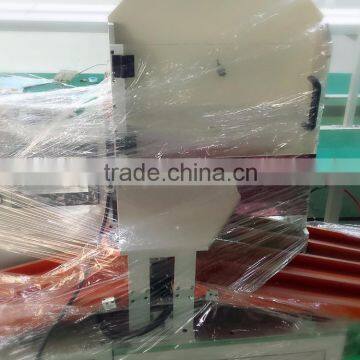

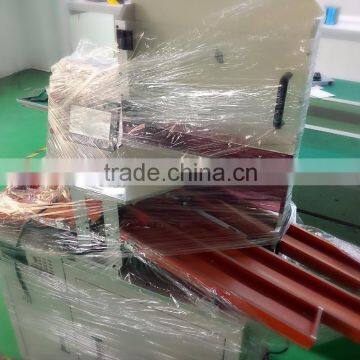

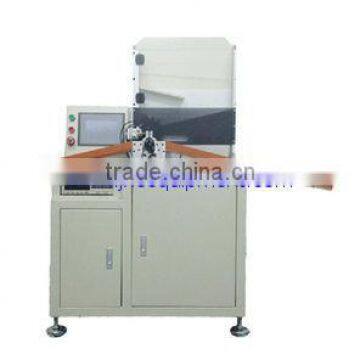

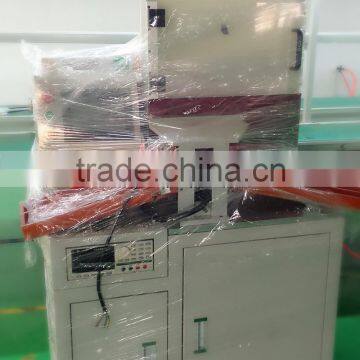

product name: 18650 automatic sorting machine

Features:

TWSL-500 five-speed cylindrical cell sorter is a cylindrical batteries for internal resistance, voltage and other parameters of the test sorting equipment, comes with high-precision internal resistance, voltage automatic test system, the device can be set according to battery internal resistance, voltage fed to the specified precision gear, the system can achieve up to 5 sorting. This device can be tested per hour with a group of batteries around 4000, and the structure is simple and elegant design, stable performance, is by far the most cost-effective on the market of a sorting equipment.battery sorter machine
model: TWSL-500  18650 battery making machine



Operating Voltage: AC220V ± 10% 50HZ, power: ≤200 W
Working gas source : 0.5~0.6Mpa
Adaptation Battery Specifications: 18650
Separation efficiency: ≥65PPM
Weight: About 120 kg
Dimensions: 1200 (L) × 800 (width) × 1200 (H) mm
instrument : Precision voltage resistance tester HK3561
Sorting parameters: Open circuit voltage, AC resistance
Open circuit voltage: Accuracy +/- 0.1% rdg, display resolution 0.1 mV
AC resistance: Accuracy +/- 0.5% rdg, display resolution 0.01 mOhm
