Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Welding Generator
Negotiable
MOQ: 72 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SLONG
Model Number:
DGW180A
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Welding Machine Generator,generating& Welding Dual-use Generator,welding Machine GeneratorUS$ 518 - 600MOQ: 10 Sets -
Portable Diesel Welding Generator,diesel Welding Generator,welding Diesel Generator SetUS$ 500 - 700MOQ: 10 Sets
-
5KW Welder GeneratorUS$ 518 - 600MOQ: 10 Sets
-
for Home and Industry Use Diesel Generator&welderUS$ 560 - 565MOQ: 10 Sets
-
POWER TROWELNegotiableMOQ: 100 Sets
Place of Origin
Jiangsu, China
Brand Name
SLONG
Model Number
DGW180A
Voltage
230V
Current
9.6A
Rated Capacity
160A
Rated Duty Cycle
40%
Specifications
Welding Generatorexceptional performance even in the toughest condition.
Easy maintenance
Meets a wide range of applications
Bitmap
| DGW180A/E | DG5500LDE | ||
| RATED FREQUENCY(Hz) | 50/60 | 50 | ||
| RATED VOLTAGE(V) | 230/240 | 220 | ||
| RATED CURRENT(A) | 9.6/10.42 | 9.1 | ||
| MAX OUTPUT(KVA) | 3.0/3.3 | 4.5/5.0 | ||
| RATED ROTATION SPEED(rpm) | 3000 3600 | 3600 | ||
| RATED WELDING DC CURRENT(A) | 160 | 150 | ||
| RATED WELDING WORK VOLTAGE(V) | 26 | 24-30 | ||
| WELDING LOAD CONTINUOUS RATIO | 40% | 50% | ||
| CURRENT REGULATION RANGE | 50-180 | 50-190 | ||
| POWER FACTOR | 1 | |||
| PHASE NUMBER | single phase | |||
| STRUCTURE TYPE | open-frame type | |||
Bitmap
| 12 | 9 | ||
| ENGINE MODEL | SL186F | SL390 | ||
| ENGINE TYPE | OHV4-stroke, 25° inclined, single cylinder with air-cooled, diesel engine | |||
| STARTING SYSTEM | recoil or electric start | |||
| ROTATION DIRECTION (view from flywheel) | Clockwise | |||
| DISPLACEMENT(ml) | 296 | 406 | ||
| COMPRESSION RATIO | 20:01 | 20:01 | ||
| RATED OUTPUT(KW (hp)) | 5.7/3600 6.3/3600 | 9.6/3600 | ||
| FUEL | 0#(summer) or-10#(winter) light diesel | unleaded gasoline | ||
| LUBE | SAE10W30(above CCgrade) | |||
| FUEL TANK CAPACITY(L) | 12.5 | 25 | ||
| BATTERY | with 12V-32Ah | |||
| DIMENSIONS(L*W*H)(mm) | 740*550*660 | 708*650*590 | ||
| NET WEIGHT | 102 | 112 | ||
| 20/40FT unit | 72 | |||
| MOQ | 72 | |||

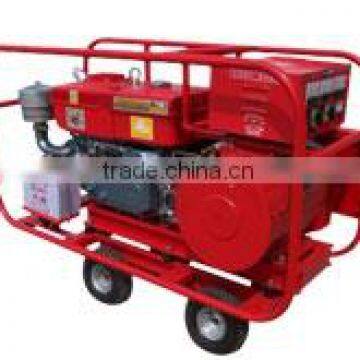

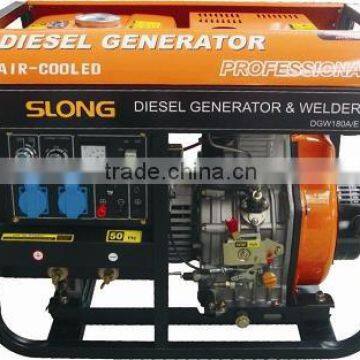

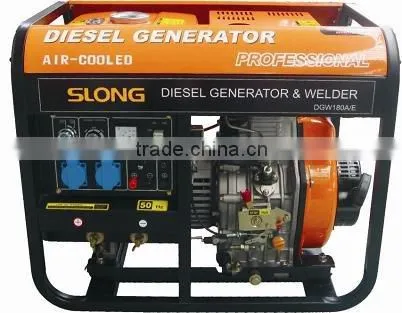

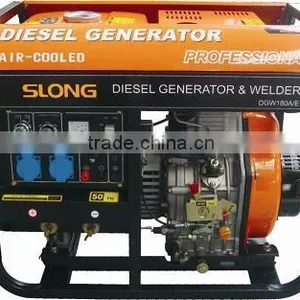

Welding Generator
