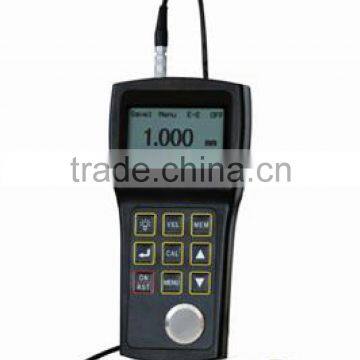

ultrasonic thickness gauge

FOB Price

US$ 1,100 - 1,500 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	TMTeck
Model Number	TM220

1,HIGH ACCURACY AND RESOLUTION UP TO 0.001mm 2,MEASURING ULTRA THIN SAMPLE AS LOW AS 0.15mm
3,HIGH-LOW LIMIT ALARM

FEATURES:

TECHNICAL SPECIFICATIONS:

Measuring Range (for steel)	Interface-Echo Mode: (I-E or Standard Mode)	1.50mm – 20.0mm (0.059in – 0.787 in)
	Echo-Echo Mode: (E-E or High Precision Mode)	0.15mm – 10.0mm (0.006in – 0.394in)
Measuring Accuracy	±0.005mm or 0.0002 inch (if thickness < 3mm)
	±0.05mm or 0.002 inch (if thickness < 20mm)
Display Resolution	mm : 0.1 / 0.01 / 0.001
	inch : 0.01 / 0.001 / 0.0001
SoundVelocityRange	1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms)
Measuring Refresh Frequency	4Hz in normal mode, up to 25Hz
Memory Capacity	500 test values
Multiple Calibrations	One point or Two Point
Display LCD	42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch)
Power Source	2 pcs. 1.5v AA size batteries
Continuous working period	About 200 hours (with backlight off)
Power off	Auto power off if idle for 4 minutes
Operating Temperature	-10 °C to +50 °C
Unit Size	2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm).
Weight	200g

STANDARD DELIVERY:
