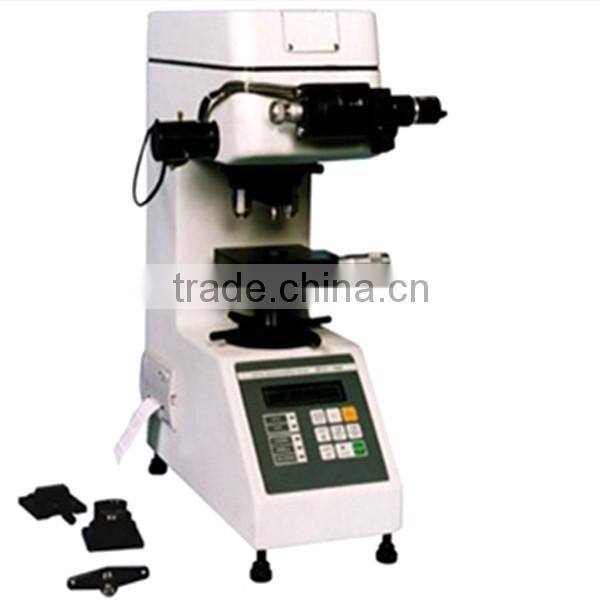

HVS-1000 Digital micro hardness tester

      TMTeck Manufacturing LTD. (hereafter “TMTeck”) is a leading NDT manufacturers and suppliers in Beijing China and provides innovative technologies and comprehensive know-how to benefit customers in a lot of countries around the world.Till now,TMTeck has been active in the areas of technology-driven inspection solutions that deliver productivity, quality and safety.

     Began from the Ultrasonic Flaw Detector and Coating Thickness Gauge,now TMTeck has developed more than 10 series of testing instruments, including Ultrasonic Flaw Detector, Coating Thickness Gauge,Hardness Testers,Ultrasonic Thickness Gauge ,their accessories and other NDT instruments. These products are widely used in the analysis of materials that enable our customers to monitor, control and validate their critical processes and applications,also our goods has CE certificates.

Functions:

1.This tester adopts programming by computer software, high magnification optical measuring system and photo electric sensor etc such technique.

2.By means of input by membrane switches, it may adjust the measurement of either strong or weak light source, preset the holding time for test force or load, cut and change either the Vicker's of Knoop's test method

3.The hardness tester is also equipped with photographic device that may take photo of all measured indentation and the metallographic formation of materials

4.It is suitable to measure the micro hardness of small, thin specimen, and superficial permeable coating (or plating) layer etc such specimen, as well as to measure the micro hardness of glass, ceramics, agate, and gem etc such brittle materials.

Standard delivery of digital micro hardness tester HVS1000

Main unit                                                                1

10 x objective                                                         1

Weight shaft                                                           1

Cross testing table                                                 1

Screwdriver                                                            2

Level                                                                      1

Fuse 1A, 2A                                                            2

Certificate                                                               1

Manual                                                                    1

Micro Vickers indenter                                             1

40 x objective                                                           1

Weight                                                                      6

Fine wire holder                                                        1

Horizontal adjusting screw                                         4

Lamp (6V/2 W)                                                          2

Manual for printer                                                      1

10 x micrometer eyepiece                                          1

Micro Vickers hardness test block (medium)              1

Optional accessories of digital micro hardness tester HVS1000

Depending on customer demand.

Specifications of digital micro hardness tester HVS1000
