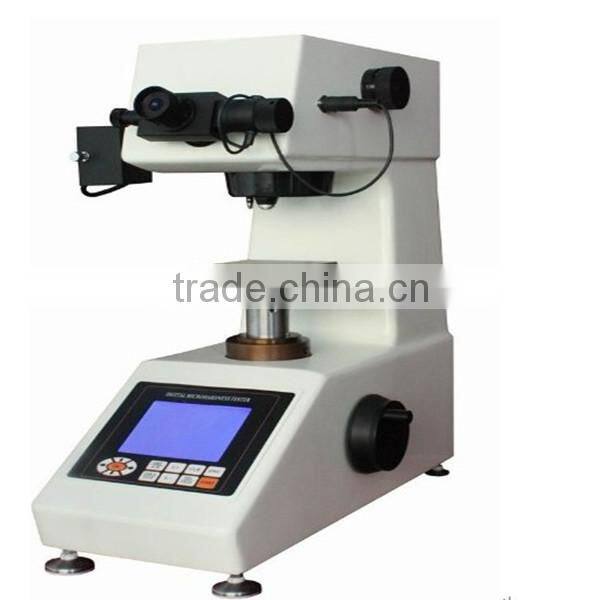

High Efficiency Micro Vickers Hardness Tester MHV-1000

     TMTeck Manufacturing LTD. (hereafter “TMTeck”) is a leading NDT manufacturers and suppliers in Beijing China and provides innovative technologies and comprehensive know-how to benefit customers in a lot of countries around the world.Till now,TMTeck has been active in the areas of technology-driven inspection solutions that deliver productivity, quality and safety.

     Began from the Ultrasonic Flaw Detector and Coating Thickness Gauge,now TMTeck has developed more than 10 series of testing instruments, including Ultrasonic Flaw Detector, Coating Thickness Gauge,Hardness Testers,Ultrasonic Thickness Gauge ,their accessories and other NDT instruments. These products are widely used in the analysis of materials that enable our customers to monitor, control and validate their critical processes and applications,also our goods has CE certificates.

      MHV-1000 Micro Vickers Hardness Tester made with a unique and precise design in the field of mechanics , optics and light source is able to produce a clearer indentation and hence a more precise measurement. By means of a 20×lens and a 40×lens the tester has a wider measurement field and a broader usage range. Equipped with a digital microscope, it shows the measuring methods, the test force, the indentation length, the hardness value, the dwell time of the test force as well as the number of the measurements——all shown on its LCD screen .Besides, it has such functions as registering the date, and measuring results , treating the data , outputting the information with the printer, and carrying out the operations of directly showing the measure number , exchanging the scales among the 17 scales , putting the data into the bank and linking to RS232 interface and to the digital camera and CCD pickup camera with a threaded interface . The instrument is, therefore, quite advanced and representative of the products of the same kind in the country.

UsageRange of digital micro vickers hardness tester MHV1000

  Hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

Technical Features of micro hardness tester MHV1000

Test Forces:(0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80) N (10, 25, 50, 100, 200, 300, 500, 1000) gf
Carriage Control: automatic ( loading / holding-up of the load / unloading )
Amplification of the Microscope: 200 ×, 400 ×
Dwell Time of the Test Force: (5-60)s
Min. Graduation Value of the Testing Drum Wheel: 0.0625um
Testing Field: 1HV—2967HV
Dimension of the XY Table: 100 × 100 mm
Movement Field of the XY Table: 25 × 25mm
Max. height of the specimen : 70 mm
Max. width of the specimen : 95mm
Output : installed with a printer and a RS232 serial interface
Light source : cold light source
Power Supply : 110V/220V, 60/50Hz
Dimension: (425 × 245 ×490)mm
Weight: 30Kg

Main accessories of microhardness tester MHV1000
XY-stage test table                                                                  1
Thin specimen test table                                                         1
Fork-shaped test table                                                            1
Fine wire test table                                                                  1
Adjustable screw                                                                      1
10^×Digital Micro Lens                                                                             1
Micro Vickers hardness blocks (high medium)                           2
Gradienter                                                                                                   1
