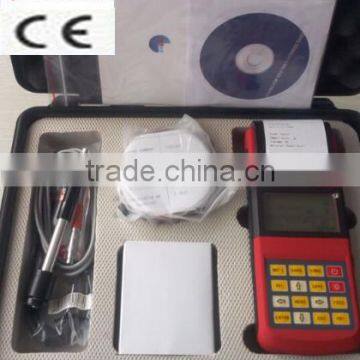

Digital Portable Leeb Hardness Tester

Advantages

1Largest screen 3 inch , showing all functions and parameters.it is the largest

The best impact device in China we offer ,stable,ageing 2resistance,through exam ,we can 2 years long time using ,but others can not.

3Test at any angle, even upside down.

4Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.

5Seven impact devices are available for special application. Automatically identify the type of impact devices.

6Large capacity memory could store 600 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.

7Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.

8Battery information indicates the rest capacity of the battery and the charge status.

9User calibration function.

10USB port with the PC humanity multi-functions data proceeding software.

11Original imported high speed thermal printer support the immediate printing function. It can save data permanently.

12NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).

13Auto power off to save energy.

14Excellent after-sale service system for high quality products---3 years’ guarantee and all life maintenance. Easy to buy and comfortable to use.

Main Application

     1Die cavity of molds

     2Bearings and other parts

     3Failure analysis of pressure vessel, steam generator and other equipment

     4Heavy work piece

     5The installed machinery and permanently assembled parts

     6Testing surface of a small hollow space

     7Material identification in the warehouse of metallic materials

     8Rapid testing in large range and multi-measuring areas for large-scale work piece

Technical Specifications

    1Measuring range:HLD(170~960)HLD

2Measuring direction:360 drgree.

3Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS

4Display:3 inch screen ,one of the biggest in China.

5Data memory: 600 groups max.(relative to impact times 32~1)

6Printing paper: width is (57.5±0.5)mm, diameter is 30mm

7Battery pack: 6V NI-MH

8Battery charger: 9V/500mA

9Continuous working period:about 150 hours(With backlight off, no printing)

10Communication interface:USB1.1

11Outline dimensions:210mm*85mm*35mm

Configuration
