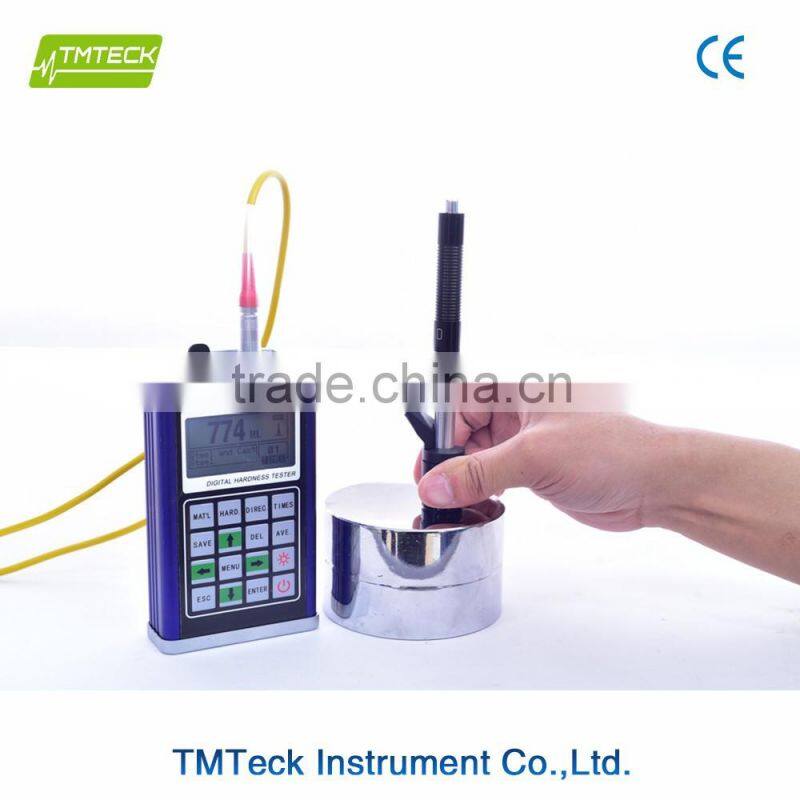

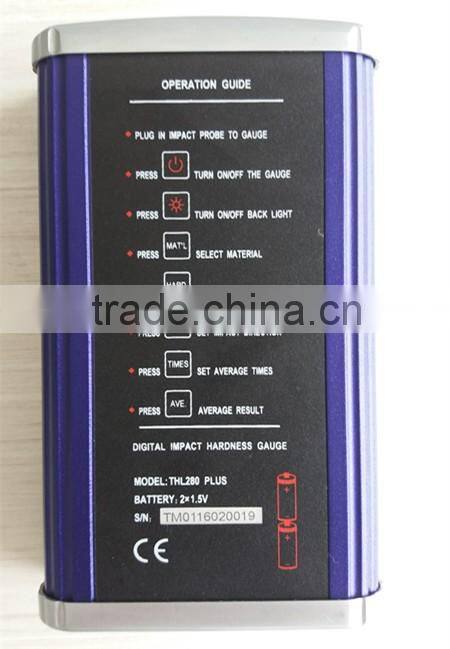

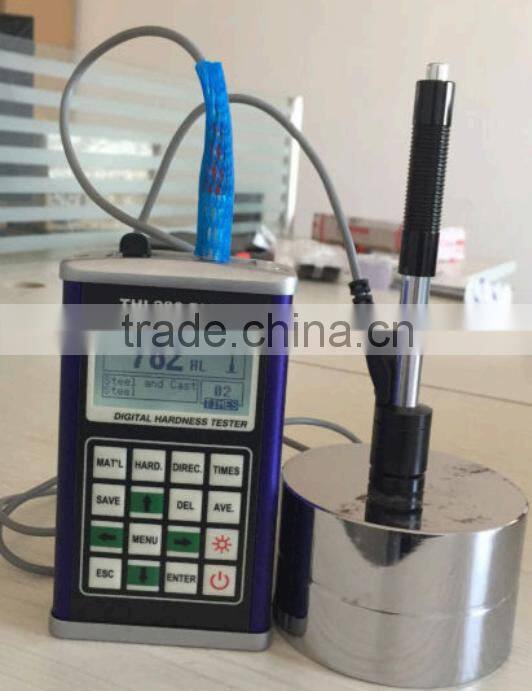

High precision hardness tester THL280 PLUS
Features
LCD display of 128×64 matrix with back-light, showing all functions and parameters.
Converts to all common hardness scales (HV,HB,HRC,HRB,HRA,HS).
English displaying and easy and convenient menu operation.
Powerful PC Software available and USB 2.0 interface & with the USB Protective Membrane.
7 types of Impact Device optional, which don't need to be recalibrated when changing them.
Memory of 600 groups data(impact times:32~1).
Lower limit setting and sound alarm.
Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece.
Printer be separated from main unit and copies of testing results can be printed as required.
AA battery can easy change and transport.
Inbuilt function of Software Calibration.
Specifications
Hardness scale HL, HB, HRB, HRC, HRA, HV, HS
Memory 48~600 groups (impact times: 32~1)
Measuring range HLD(170~960)See below table 1 and table 2
Accuracy ±4HLD (760±30HLD) error of displayed value
4HLD (760±30HLD) repeatability of displayed value
Standard Impact Device D
Optional Impact Devices DC/D+15/G/C/DL
Max. Workpiece Hardness 996HV(For Impact Devices D/DC/DL/D+15/C)
646HB(For Impact Device G)
Min. Radius of Workpiece Rmin = 50mm (with special support ring Rmin= 10mm)
Min. Workpiece weight 2~5kg on stable support
0.05~2kg with compact coupling
Min. Workpiece thickness 5mm (Impact Devices D/DC/DL/D+15)
1mm (Impact Device C)
10mm (Impact Device G)
Min. thickness of hardened surface 0.8mm
Power AA battery
Continuous Working time approx. 100 h (no back light off)
Charging time 2-3.5 h
Operating temperature 0~40℃
Relative humidity ≤90%
Overall dimensions 125*67*31mm (main unit)
Weight 0.3kg (main unit)
Datapro for Hardness tester THL280 PLUS
Standard Configuration
Seq | Name | Qty | Remark |

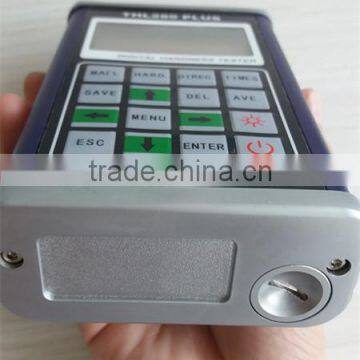

1 | Main Unit | 1 | Standard configuration |

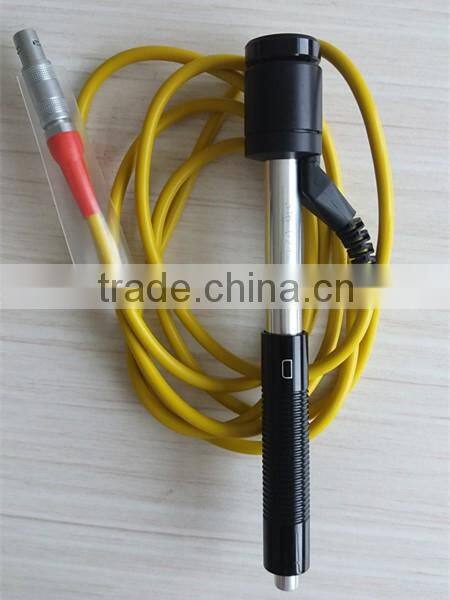

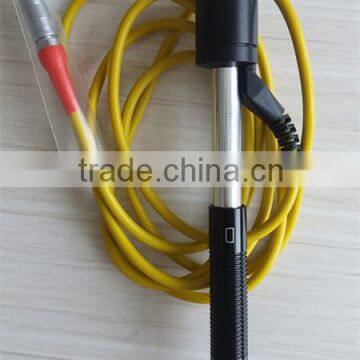

2 | Impact Device Type D | 1 | Standard configuration |
3 | Test Block Type D | 1 | Standard configuration |

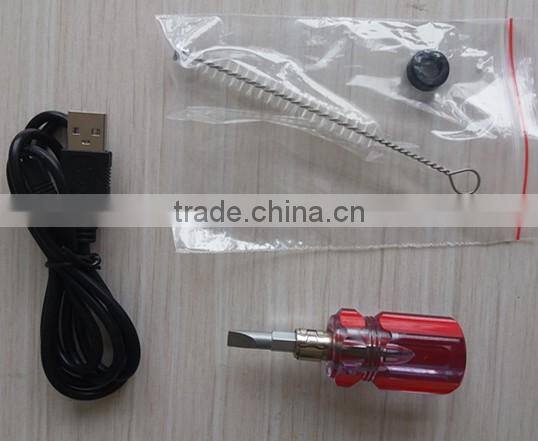

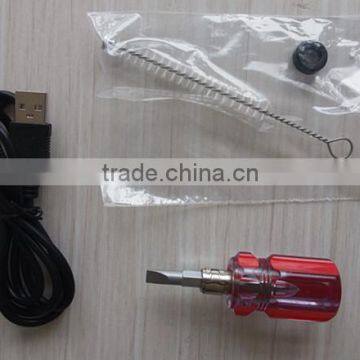

4 | Cleaning Brush | 1 | Standard configuration |
5 | Supporting Ring | 1 | Standard configuration |
6 | Communication Cable | 1 | Standard configuration |
7 | Manual | 1 | Standard configuration |

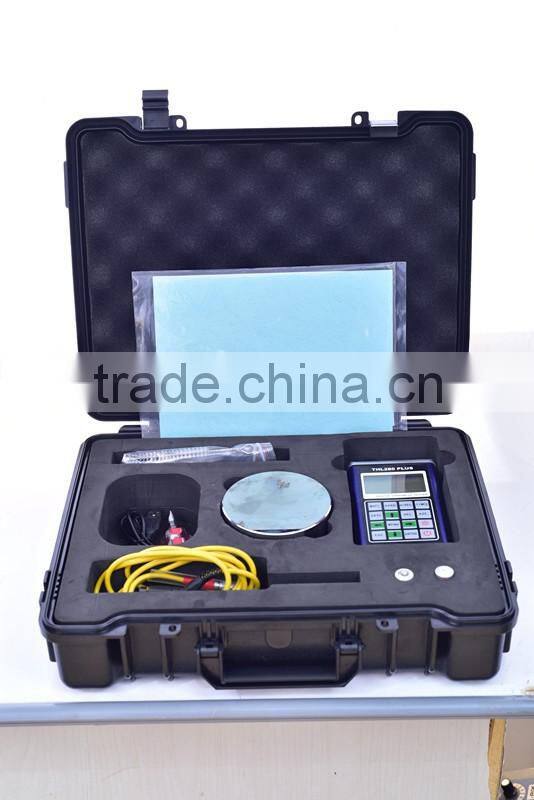

8 | Carrying Case | 1 | Standard configuration |
9 | DataPro Software(USB) | 1 | Standard configuration |
10 | Battery Case Tool | 1 | Standard configuration |
11 | Mini-printer | 1 | Optional configuration |
TMTeck Manufacturing LTD. (hereafter “TMTeck”) is a leading NDT manufacturers and suppliers in Beijing China and provides innovative technologies and comprehensive know-how to benefit customers in a lot of countries around the world.Till now,TMTeck has been active in the areas of technology-driven inspection solutions that deliver productivity, quality and safety.
Began from the Ultrasonic Flaw Detector and Coating Thickness Gauge,now TMTeck has developed more than 10 series of testing instruments, including Ultrasonic Flaw Detector, Coating Thickness Gauge,Hardness Testers,Ultrasonic Thickness Gauge ,their accessories and other NDT instruments. These products are widely used in the analysis of materials that enable our customers to monitor, control and validate their critical processes and applications,also our goods has CE certificates.
All of our products are 2 years guanrantees and lifetime maintenance.
