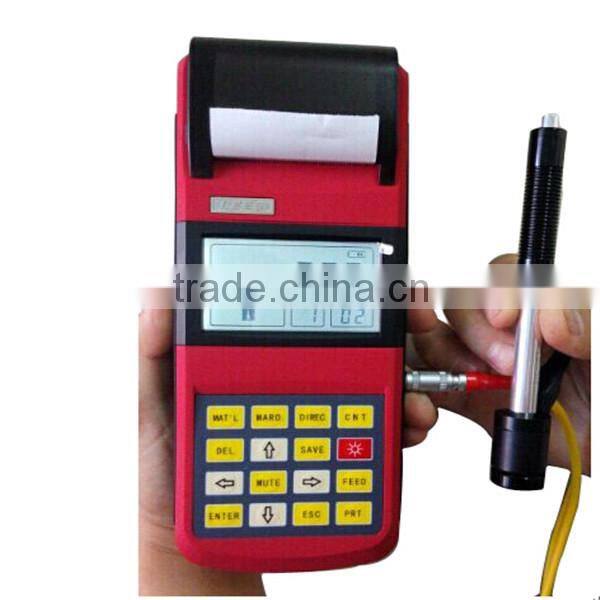

USB Interface Digital Portable Leeb Hardness Tester

        TMTeck Manufacturing LTD. (hereafter “TMTeck”) is a leading NDT manufacturers and suppliers in Beijing China and provides innovative technologies and comprehensive know-how to benefit customers in a lot of countries around the world.Till now,TMTeck has been active in the areas of technology-driven inspection solutions that deliver productivity, quality and safety.

        Began from the Ultrasonic Flaw Detector and Coating Thickness Gauge ,now TMTeck has developed more than 10 series of testing instruments, including Ultrasonic Flaw Detector, Coating Thickness Gauge,Hardness Testers,Ultrasonic Thickness Gauge ,their accessories and other NDT instruments. These products are widely used in the analysis of materials that enable our customers to monitor, control and validate their critical processes and applications,also our goods has CE certificates.

Advantages

1.Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.

2. Large 3 inchi screen LCD, showing all functions and parameters. With EL background light.

3.Seven impact devices are available for special application. Automatically identify the type of impact devices, and with the user calibration function.

4. Test at any angle, even upside down.

5.Large memory could store 500 groups (Relative to average times 32~1 ) information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.

6. Batteryinformation showing the rest capacity of the battery and the charge status.

7.Original imported high speed thermal printer support the immediate printing function.  It can save data permanently.

8.  NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).

9. Auto power off to save energy.

10.Excellent after-sale service system for high quality products--two years’ guarantee and all life maintenance. Easy to buy and comfortable to use.

Main Application

Die cavity of molds

Bearings and other par

Failure analysis of pressure vessel, steam generator and other equipment

Heavy work piece

The installed machinery and permanently assembled parts

Testing surface of a small hollow space

Material identification in the warehouse of metallic materials

apid testing in large range and multi-measuring areas for large-scale work piece

Technical Specifications

Error and repeatability of displayed value.

  Measuring range:HLD(170~960)HLD

 Measuring direction:0°~360°

 Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS

 Display:segment LCD

Data memory:500 groups max.(relative to impact times 32~1)

 Printing paper: width is(57.5±0.5)mm, diameter is 30mm.

Battery pack: 6V NI-MH

Battery charger: 9V/500mA

Continuous working period:about 150 hours(With backlight off, no printing)

Communication interface:USB2.0

 Outline dimensions.

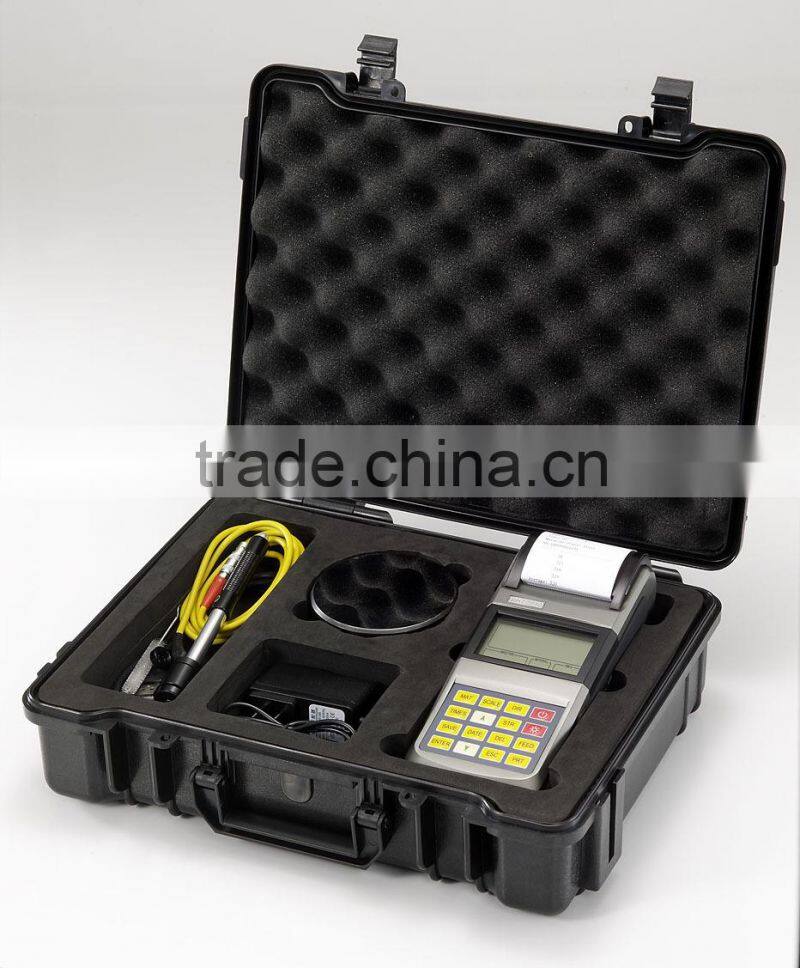

Configuration

Table 1-2
