AT-108M Vechile Radio With CE&RoHS Approval

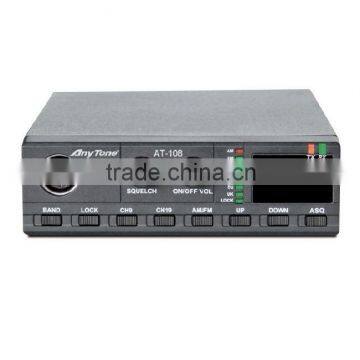

AT-108M Vechile Radio With CE&RoHS Approval photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
AM / FM
Place of Origin:
Fujian, China
Brand Name:
Anytone
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Type AM / FM
Place of Origin Fujian, China
Brand Name Anytone
Model Number AT-108M
Screen Yes
Function Built-In Speaker
Power Supply Other, charging by DC power cable

Detailed Product Description


CE approval
new hot item,
own beautiful outer panel and stable function

1.Frequency:26.965-27.405MHz
2.Channels:E D EU EC PL UK US NZ
3.Key lock function
4.AM/FM mode
5.EU/RU mode
6.SQ/ASQ



GENERAL

Modulation modes



AM/FM

Frequency ranges



26.965---27.405MHz

Antenna impedance



50 Ohms

Power supply



13.2V

Dimensions(in mm)



124×190×38mm

Net Weight



120g



TRANSMISSION

Frequency error



+/- 300HZ

Carrier power



1W/4W

Transmission interference



inferior to 4nW(-54dBm)

Audio response



300HZ to 3KHZ in AM/FM

Emitted power in the adj. channel



inferior to 20uW

Microphone sensitivity



3mV

Maximum current



max 3A

Modulated singal distortion



inferior to 5%



RECEPTION

Max sensitivity at 20dB sinad



0.8uV -113 dBm  FM 1.5uV -103 dBm AM

Frequency response



300HZ to 3KHZ in AM/FM

Adjacent channel selectivity



60dB

Maximum audio power



3W

Squelch sensitivity



Minimum 0.2uv -120 dBm Maximum 1mV -47 dBm

Maximum current



0.3A nominal/1.2A maximum
