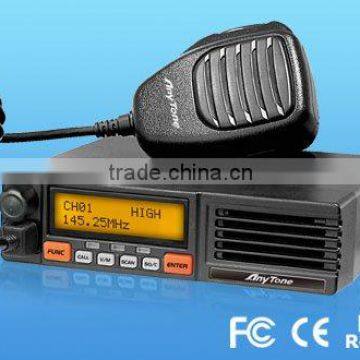

AT-5189 Mobile Radio With FCC CE ROHS Approval

Qixiang Electron Science&Technology Co., Ltd. Quanzhou
AT-5189 Mobile Radio With FCC CE ROHS Approval thumbnail-1
AT-5189 Mobile Radio With FCC CE ROHS Approval photo-1
Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
AnyTone
Model Number:
AT5189
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
china port.xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name AnyTone
Model Number AT5189
Type Handheld
Dimensions 160x155x40mm
Frequency Range 66-88MHz/136-174MHz/400-490MHz
Storage Channel 250
Talk Range 10-20km

  AT5189 Mobile Radio with FCC CE ROHS approval

 Frequency: 66-88MHZ/136-174MHZ/400-490MHZ

Function:

Output power: 60w/40w/25w/10w.250 channels,every channel can be named with 32 charactors.

CTCSS/DCS/DTMF/2Tone,5Tone decode and encode.

Compander to reduce noise.

ANI function(display missed calls)/PTT ID.

Single call,group call,selective call and emergency call are all available.



Accessories:

Mircophone

Mounting bracketDC power cable with fuse holder

Hardware kits for bracket

QDM-01 Desktop MIC(Option)

QHM04 DTMF MIC(Option)





AT-5189 SPECIFICATION

General

Frequency Range

HF: 33-49MHz      66-88MHz

VHF: 136-174MHz   245-246MHz

UHF: 400~490MHz

Number of Channels

250 channels

Channel Spacing

25KHz(Wide Band)  20 KHz(Middle Band)  12.5K (Narrow band)

Phase-locked Step

5KHz,6.25KHz

Operating Voltage

13.8V  DC ±15%

Squelch

Carrier/CTCSS/DCS/5Tone/2Tone/DTMF

Frequency Stability

±2.5ppm

Operating Temperature

-20~+60°C(-4 F~+140 F)

Dimensions(WxHxD)

160 x155x 40mm

Weight

1Kg

Receiver (ETSI EN 300 086 standard testing )



Wide band

Narrow band

Sensitivity (12dB Sinad)

≤0.2μV

≤0.25μV

Adjacent Channel

Selectivity

≥70dB

≥60dB

Intermodulation

≥65dB

≥60dB

Spurious Rejection

≥70dB

≥70dB

Audio Response

+1~-3dB(0.3~3KHz)

+1~-3dB(0.3~2.55KHz)

Hum & Noise

≥45dB

≥40dB

Audio distortion

≤5%

Audio power output

≥2W@10%

Transmitter (ETSI EN 300 086 standard testing )



Wide band

Narrow band

Power Output

60W/25W/10W(VHF)

45W/25W/10W(UHF)

Modulation

16KΦF3E

11KΦF3E

Adjacent Channel

Power

≥70dB

≥60dB

Hum & Noise

≥40dB

≥36dB

Spurious Emission

≥60dB

≥60dB

Audio Response

+1~-3dB(0.3~3KHz)

+1~-3dB(0.3~2.55KHz)

Audio Distortion

≤5%



familiar products









Pls check  Anytone ,CE&RoHS certificate as belowAT-5189 Mobile Radio with FCC CE ROHS approval



AT-5189 Mobile Radio with FCC CE ROHS approval





AT-5189 Mobile Radio with FCC CE ROHS approval



RoHS



AT-5189 Mobile Radio with FCC CE ROHS approval
