Home > Consumer Electronics > Two Way Radio > Handheld Two Way Radio > AT-5555 CB Radio With CE&RoHS Approval

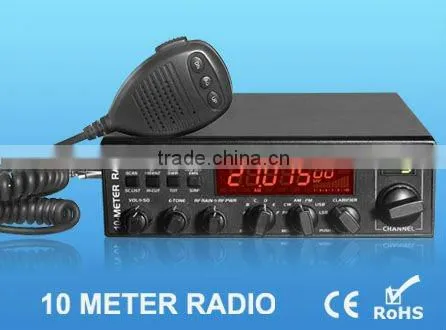

AT-5555 CB Radio With CE&RoHS Approval

Name: AT-5555 CB Radio With CE&RoHS Approval
Brand: ANYTONE
SKU: 103616617
Availability: InStock

AT-5555 CB Radio With CE&RoHS Approval thumbnail-1

AT-5555 CB Radio With CE&RoHS Approval photo-1

Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Model Number:

AT-5555P

Brand Name:

ANYTONE

Place of Origin:

Contact Supplier Request Quote Chat Now

Qixiang Electron Science&Technology Co., Ltd. Quanzhou

Payment & Shipping

Payment Methods:

Port of Shipment:

china port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number AT-5555P

Brand Name ANYTONE

AT-5555P CB Radio with CE&RoHS approval

1.CE&RoHS approval
2.Mode:AM,FM,USB,LSB,PA,CW
3.lARGE lcd
4.Frequency programmable on computer.
5.ASQ function
6.SSB radio

AT-5555 specification

General
Frequency Range	25.615MHZ—30.105MHZ (Programmable)
Frequency Band	A/B/C/D/E/F
Channel	60 channels (programmable) in each band
Frequency Control	Phase-Locked-Loop Synthesizer
Frequency Step	10Hz 100Hz 1KHz 10KHz
Frequency Tolerance	0.005%
Frequency Stability	0.001%
Temperature Range	-30°Cto +50°C
Microphone	Plug-in dynamic; with push-to-talk /UP/DN/ ASQ switch and coiled cord
Input Voltage	DC 13.8V normal, 15.9V max; 11.7V min Transmit: AM full mod 5A Receiver: Squelched 0.6A SSB 21W PEP output 6A
Size	28256CM
Weight	2.8KG
Antenna Connector	UHF,SO239
TRANSMITTER
Power Output	AM/FM/CW: 12W SSB:21W(PEP)
Modulation	High and low level class B Amplitude Modulation: AM Varied Capacitance Frequency Modulation: FM
Inter-modulation Distortion	SSB: 3rd order, more than -25dB; 5th order, more than -35dB
SSB Carrier Suppression	55dB
Unwanted Sideband	50dB
Frequency Response	AM and FM: 450 to 2500HZ
Saida Impedancia	50ohms, unbalanced
Sensitivity	SSB: 0.25μV for 10dB(S+N)/N at greater than 1/2-watt of audio output. AM:1.0μV for 10 dB(S+N)/N at greater than 1/2watt of audio output. FM: 1.0 μV for 20 dB (S+N)/N at greater than 1/2 watt of audio output.
Selectivity	AM/FM:6dB 3KHz,50dB 9KHz SSB: 6 dB 2.1KHz,60dB 3.3KHz
Image Rejection	More than 65dB
IF Frequency	AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF SSB: 10.695 MHz
Adjacent-Channel	60dB AM/FM &70 dB SSB
Rejection
RF Gain Control	45 dB adjustable for optimum signal reception
Automatic Gain Control(AGC)	Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolt.
Squelch	Adjustable; threshold less than 0.5 μV. Automatic Squelch Control(only AM/FM) 0.5 μV
ANL	Switchable
Noise Blanker	RF type, effective on AM/FM and SSB
Audio Output Power	4 watts into 8 ohms
Frequency Response	300 to 2800 Hz
Built-in Speaker	8 ohms, round.
External Speaker(Not Supplied)	8 ohms; disables internal speaker when connected.
