5189 Mobile Radio

FOB Price

Negotiable / Set

50 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

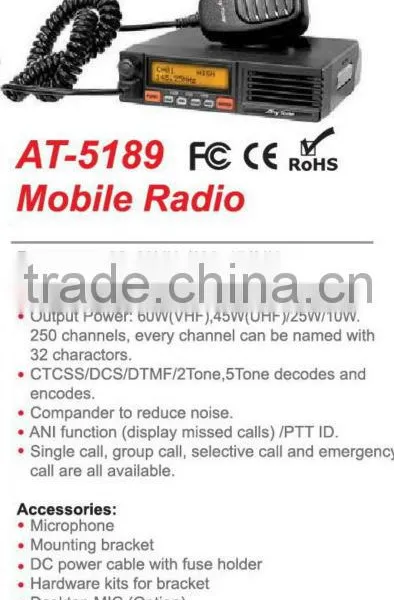

AT5189 Mobile Radio with FCC CE ROHS approval

Frequency: 66-88MHZ/136-174MHZ/400-490MHZ

Function:

Output power: 60w/40w/24w/10w.250 channels,every channel can be named with 32 charactors.

CTCSS/DCS/DTMF/2Tone,5Tone decodes and encodes.

Compander to reduce noise.

ANI function(display missed calls)/PTT ID.

Single call,group call,selective call and emergency call are all available.

Accessories:

Mircophone

Mounting bracketDC power cable with fuse holder

Hardware kits for bracket

QDM-01 Desktop MIC(Option)

QHM04 DTMF MIC(Option)

AT-5189 SPECIFICATION

General
Frequency Range	HF: 33-49MHz 66-88MHz VHF: 136-174MHz 245-246MHz UHF: 400~490MHz
Number of Channels	250 channels
Channel Spacing	25KHz(Wide Band) 20 KHz(Middle Band) 12.5K (Narrow band)
Phase-locked Step	5KHz,6.25KHz
Operating Voltage	13.8V DC ±15%
Squelch	Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability	±2.5ppm
Operating Temperature	-20~+60°C(-4 F~+140 F)
Dimensions(WxHxD)	160 x155x 40mm
Weight	1Kg
Receiver (ETSI EN 300 086 standard testing )
		Wide band	Narrow band
Sensitivity (12dB Sinad)		≤0.2μV	≤0.25μV
Adjacent Channel Selectivity		≥70dB	≥60dB
Intermodulation		≥65dB	≥60dB
Spurious Rejection		≥70dB	≥70dB
Audio Response		+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~2.55KHz)
Hum & Noise		≥45dB	≥40dB
Audio distortion		≤5%
Audio power output		≥2W@10%
Transmitter (ETSI EN 300 086 standard testing )
		Wide band	Narrow band
Power Output		60W/25W/10W(VHF)	45W/25W/10W(UHF)
Modulation		16KΦF3E	11KΦF3E
Adjacent Channel Power		≥70dB	≥60dB
Hum & Noise		≥40dB	≥36dB
Spurious Emission		≥60dB	≥60dB
Audio Response		+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~2.55KHz)
Audio Distortion		≤5%

familiar products

Pls check Anytone ,CE&RoHS certificate as below

RoHS
