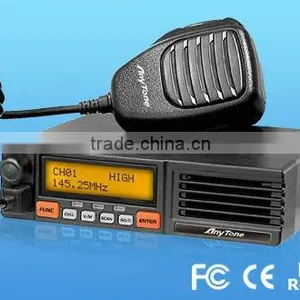

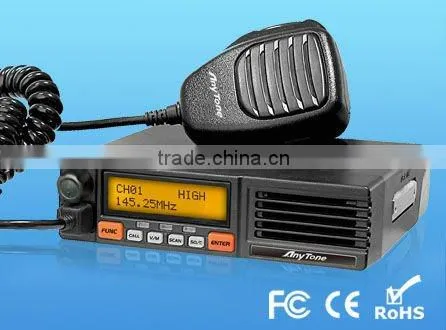

AnyTone 5189 Mobile Radio With FCC CE ROHS Approval

AnyTone 5189 Mobile Radio With FCC CE ROHS Approval thumbnail-1
AnyTone 5189 Mobile Radio With FCC CE ROHS Approval photo-1
Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
AnyTone
Model Number:
AT5189M
Contact Supplier Request Quote Chat Now
Qixiang Electron Science&Technology Co., Ltd. Quanzhou
Payment & Shipping
Payment Methods:
Port of Shipment:
china port.xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name AnyTone
Model Number AT5189M
Type Handheld
Dimensions 160x155x40mm
Frequency Range 66-88MHz/136-174MHz/400-490MHz
Storage Channel 250

  Frequency: 66-88MHZ/136-174MHZ/400-490MHZ

Function:

Output power: 60w/40w/24w/10w.250 channels,every channel can be named with 32 charactors.

CTCSS/DCS/DTMF/2Tone,5Tone decodes and encodes.

Compander to reduce noise.

ANI function(display missed calls)/PTT ID.

Single call,group call,selective call and emergency call are all available.



Accessories:

Mircophone

Mounting bracketDC power cable with fuse holder

Hardware kits for bracket

QDM-01 Desktop MIC(Option)

QHM04 DTMF MIC(Option)





AT-5189 SPECIFICATION

General

Frequency Range

HF: 33-49MHz      66-88MHz

VHF: 136-174MHz   245-246MHz

UHF: 400~490MHz

Number of Channels

250 channels

Channel Spacing

25KHz(Wide Band)  20 KHz(Middle Band)  12.5K (Narrow band)

Phase-locked Step

5KHz,6.25KHz

Operating Voltage

13.8V  DC ±15%

Squelch

Carrier/CTCSS/DCS/5Tone/2Tone/DTMF

Frequency Stability

±2.5ppm

Operating Temperature

-20~+60°C(-4 F~+140 F)

Dimensions(WxHxD)

160 x155x 40mm

Weight

1Kg

Receiver (ETSI EN 300 086 standard testing )



Wide band

Narrow band

Sensitivity (12dB Sinad)

≤0.2μV

≤0.25μV

Adjacent Channel

Selectivity

≥70dB

≥60dB

Intermodulation

≥65dB

≥60dB

Spurious Rejection

≥70dB

≥70dB

Audio Response

+1~-3dB(0.3~3KHz)

+1~-3dB(0.3~2.55KHz)

Hum & Noise

≥45dB

≥40dB

Audio distortion

≤5%

Audio power output

≥2W@10%

Transmitter (ETSI EN 300 086 standard testing )



Wide band

Narrow band

Power Output

60W/25W/10W(VHF)

45W/25W/10W(UHF)

Modulation

16KΦF3E

11KΦF3E

Adjacent Channel

Power

≥70dB

≥60dB

Hum & Noise

≥40dB

≥36dB

Spurious Emission

≥60dB

≥60dB

Audio Response

+1~-3dB(0.3~3KHz)

+1~-3dB(0.3~2.55KHz)

Audio Distortion

≤5%



familiar products

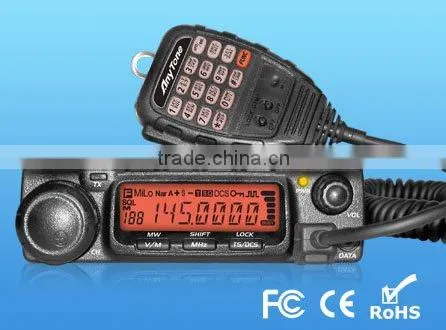

AnyTone 5189 Mobile Radio with FCC CE ROHS approval

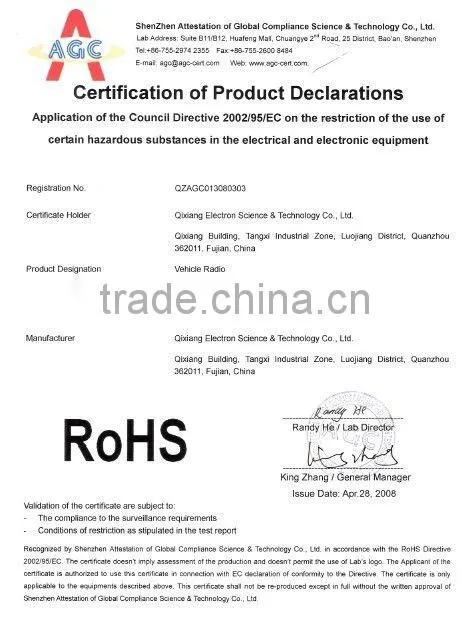

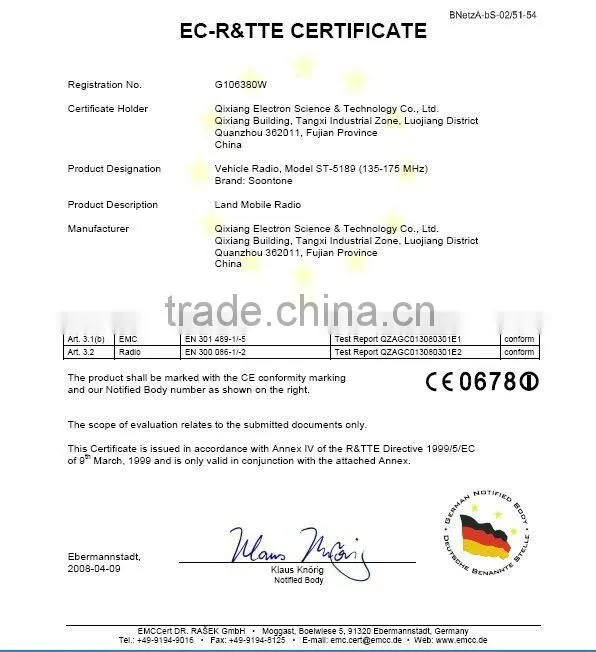

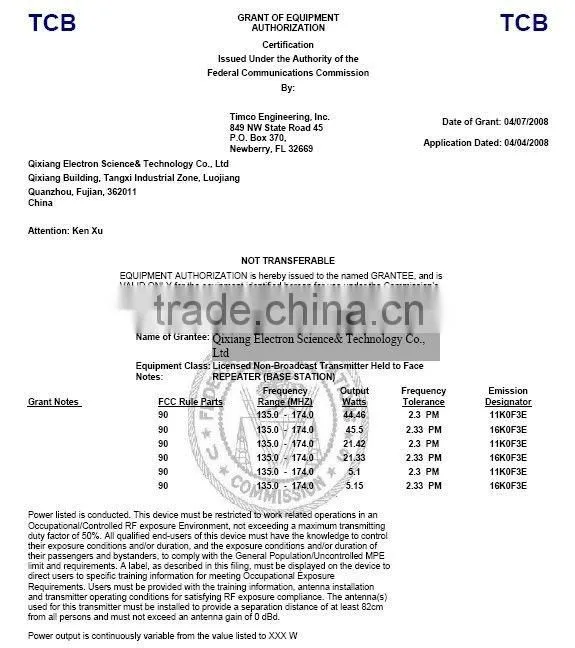

Pls check  Anytone ,CE&RoHS certificate as belowAnyTone 5189 Mobile Radio with FCC CE ROHS approval



AnyTone 5189 Mobile Radio with FCC CE ROHS approval





AnyTone 5189 Mobile Radio with FCC CE ROHS approval



RoHS



AnyTone 5189 Mobile Radio with FCC CE ROHS approval
