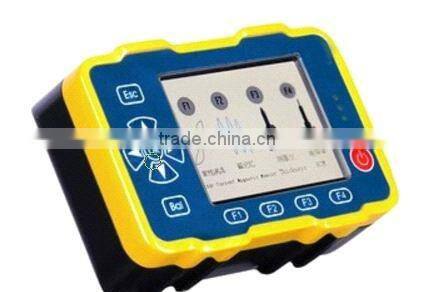

Eddy Current Flaw Detector

Introduce:

TMD-301 is a new eddy current testing instrument from TMTeck company .It is not only has the function of eddy current testing , also has the function of electrical conductivity and thickness testing.It applies to almost all the eddy current testing. “Electrical conductivity, thickness” has widely measuring range , high accuracy and other characteristics, has English and chinese operating interface, can master the operation quickly,so it can be satisfied with many countries.

TMD-301 can be realized fool-type operation, it doesn’t need much time to train the operators before they are on work.

Applications:

Used for the detection of Material sorting, crack detection, coating thickness testing, layer thickness testing, hardness sorting, electrical conductivity testing, defect detection, metallic spare part, tube and pipe, welding seam and other metallic .

Specification:

Basic Parameter

L X W X H :160 MM x 100 MM x 60 MM

Screen:Resolution 320X240 3.5’ TFT Color LCD

Weight: 1.2 Kg (Including Battery)

Interfaces:LEMO-6

Lithium: 12V 3000mAH

Power Supply: 110V/60hz 220V/50hz

Operating Temperature: -20° ~ 50°C

RAM:256M

SD CARD memory capacity: 2G

USB interface:12M/S, USB-2.0(Host/Slave)

Encoder:1024 Pulse/Round Resolution:0.1mm

Operation Language:English/Chinese

LCD Luminance:1-8 Grade

Inspection Parameter

Independent Detection Frequency:

Frequency Range:10 Hz~10 MHz,Step 1 Hz

Gain:0 dB~99 dB,Step 0.1 dB

Phase:0~359°,Step 1 Deg

Intelligent Mixing Unit:1 in total

Probe Driver:Vpp=1~8V

Probe Impedance:50Ω 100Ω

X&Y Gain Control: Y/X = 0.1—10

Calibration Curve:Amplitude Phase Equivalent

Display Mode:Impedance, time base, rectangular coordinates, polar coordinates Scanning Speed:1-100 Grade

Center coordinates: X Y adjustable

Digital Signal

Digital Filtering:HPF(0Hz~2000Hz),LPF(0Hz~2000Hz)

Filtering Points:1-1024

Broadband: 100Hz~10MHz

A/D Velocity:16bit 100M

Min-Senstivity: 1mV

Real-Time Average:2 4 8 16 32

Automatic Balance:Digital Electronic Balance

Alarm Set

Type: Phase/Non-continuous Windows and Door Frame

Gate:A/B

Amplitude Value:10%-120%

Sound:On/Off

Peripheral:Photoelectric I/O
