Eddy Current Detector

Introduce:

TMD-301 is a new eddy current testing instrument from TMTeck company .It is not only has the function of eddy current testing , also has the function of electrical conductivity and thickness testing.It applies to almost all the eddy current testing. “Electrical conductivity, thickness” has widely measuring range , high accuracy and other characteristics, has English and chinese operating interface, can master the operation quickly,so it can be satisfied with many countries.

TMD-301 can be realized fool-type operation, it doesn’t need much time to train the operators before they are on work.

Applications:

Used for the detection of Material sorting, crack detection, coating thickness testing, layer thickness testing, hardness sorting, electrical conductivity testing, defect detection, metallic spare part, tube and pipe, welding seam and other metallic

Specification:

Basic Parameter

L X W X H :160 MM x 100 MM x 60 MM

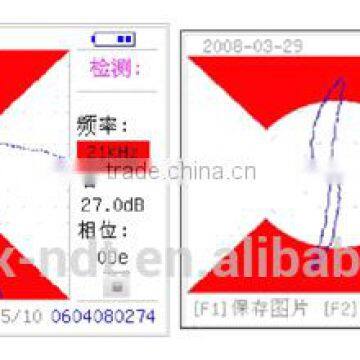

Screen:Resolution 320X240 3.5’ TFT Color LCD

Weight: 1.2 Kg (Including Battery)

Interfaces:LEMO-6

Lithium: 12V 3000mAH

Power Supply: 110V/60hz 220V/50hz

Operating Temperature: -20° ~ 50°C

System Parameter

CPU: ARM11 Embedded 32 500M Processor

Operating System:liunx 2.6
