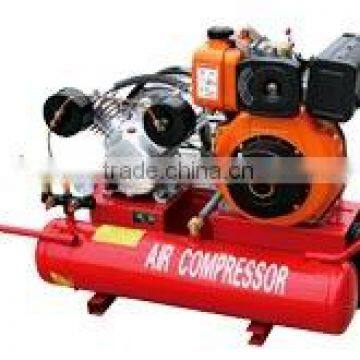

Air Compressor Set

Specifications

Air Compressor Set
Easy maintenance
Meets a wide range of applications
exceptional performance even in the toughest condition

air compressor set



Air compressors	MODEL	SLGA36Gasoline air compressors	SLGA40 Gasoline air compressors	SLGA60 Gasoline air compressors	SLDA36 Diesel air compressors
	Pump speed	950rpm
	Max pressure	0.8Mpa
	Air flow rate	0.25m3/min	0.25m3/min	0.17m3/min	0.32m3/min
	Tank capacity	36L	40L	60L	36L
	Net weight(kg)	80.5	80.5	80.5	114
	Dimension (L*W*H)	1155*455*625	1045*455*625	900*400*700	1155*455*625
Engine	Model	SL160/E	SL160/E	SL160/E	SL178F
	Type	air-cooled, 4-stroke, gasoline engine			single-cylinder,vertical, 4-stroke, direct injection, air-cooled diesel engine
	Continuous output	5.0HP
	Max output	5.5HP
	Bore*stroke	68mm*45mm	68mm*45mm	68mm*45mm	78mm*62mm
	Displacement	163cm3	163cm3	163cm3	296cm3
	Fuel tank capacity(L)	3.6	3.6	3.6	3.5
	Lube oil capacity	0.6	0.6	0.6	1.1
	Starting mode	Recoil/electic start
	Cooling type	Force air-cooled
	Lubrication	Pressure splash
	2OFT unit(MOQ)	78pcs	78pcs	90pcs	78pcs
