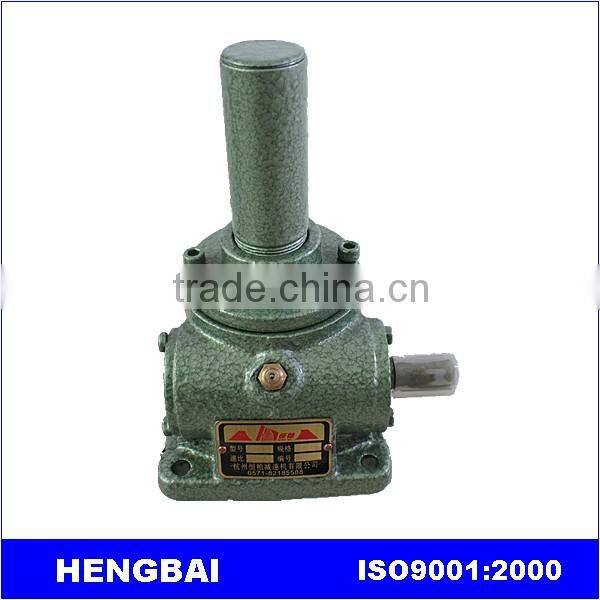

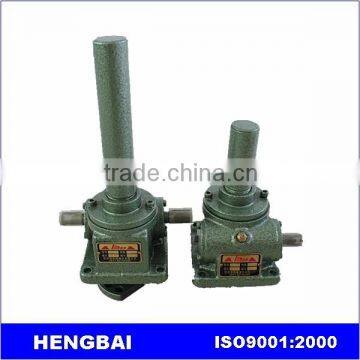

Small Worm Gear Screw Jack , SWL Manual Screw Jack

FOB Price

US$ 300 - 750 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Product Features:

1. Advanced design, compact aluminum gearbox body,

2. Its rated load:0.5 tons-20 tons, the speed of the push rod is at 30mm/s,

3. The most high rotational speed: 1500rpm, work system:20%(run for 2 minutes in 10 minutes)

4. Can choose one pair of heads, three guide screws from a complete set,

5. The crack of tooth offsets device, defend walking around device,

6. The safe nut, dust cover, the limit location switch of the magnetic induction.

Type:	Worm Gear Screw Jack
Model:	SWL2.5,5,10,20,35
Ratio:	1/8,1/10,1/12,/1/15,1/20,1/24,1/30,1/40
Color:	Green,Blue
Material:	Worm Gear- Cooper-10-3 #
Material:	Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC
Seal:	OTT Seal from TAIWAN
Warranty:	1 year

Packaging & Shipping

1, Industrial pakaging: Plastic tube+carton+wooden pallets2, Commercial packing: Plastic bag+color box+carton+wooden pallets

3, As client's requirement

4, Shipping: By sea, by air, by DHL Fedex UPS etc
