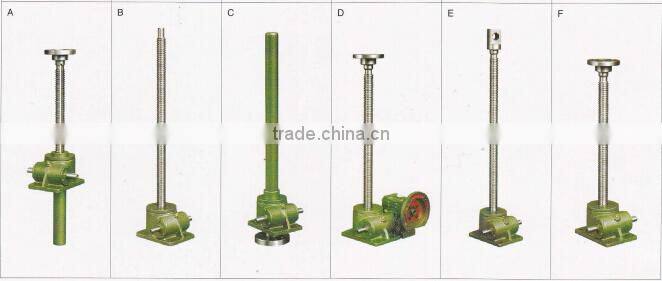

SWL manual worm gear screw jack
- Ningbo or shanghai
- T/T Credit Card PayPal
You May Like
-
Small worm gear screw jack , SWL manual screw jack
-
China Manufacturer WPEA Double Stage Iron Worm Automatic Gearbox
-
WPDKA Iron Worm Gear Speed Reducer Automatic Transmission Parts
-
WP Series WPDT Iron Worm Flange Reducer Gearboxes
-
WPKA/FCKA Iron Worm Gear Speed Reducer
-
WPKS/FCKS Iron Worm Gear Speed Reducer
Product Details
| Gearing Arrangement | Worm | Output Torque | 5-2500KN | |
| Rated Power | 0.06kw-75kw | Input Speed | Depends on ratio | |
| Output Speed | 1400RPM | Place of Origin | Zhejiang, China | |
| Model Number | SWL | Brand Name | Hengai |
Product Description
Product Features:
1. Advanced design, compact aluminum gearbox body,
2. Its rated load:0.5 tons-20 tons, the speed of the push rod is at 30mm/s,
3. The most high rotational speed: 1500rpm, work system:20%(run for 2 minutes in 10 minutes)

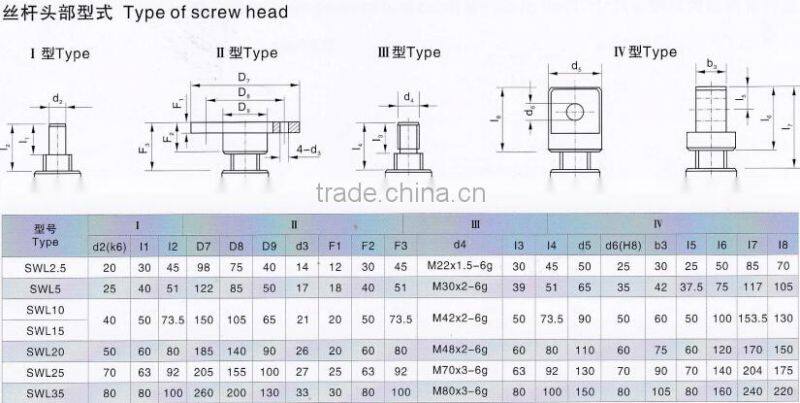

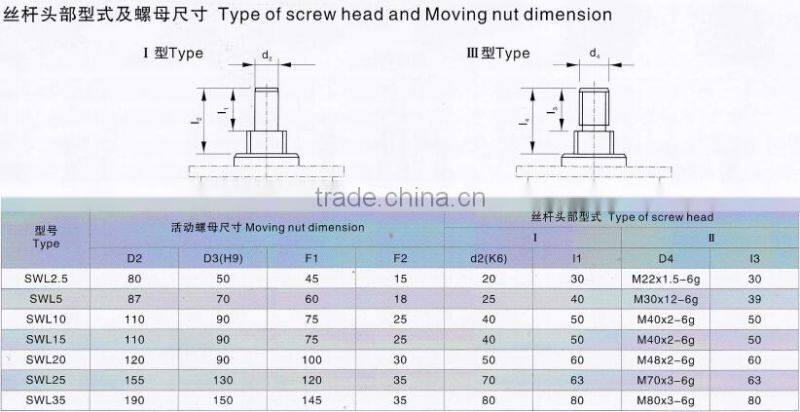

4. Can choose one pair of heads, three guide screws from a complete set,
5. The crack of tooth offsets device, defend walking around device,
6. The safe nut, dust cover, the limit location switch of the magnetic induction.
Type: | Worm Gear Screw Jack |
| Model: | SWL2.5,5,10,20,35 |
| Ratio: | 1/8,1/10,1/12,/1/15,1/20,1/24,1/30,1/40 |
| Color: | Green,Blue |
| Material: | Worm Gear- Cooper-10-3 # |
| Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC | |
| Seal: | OTT Seal from TAIWAN |
| Warranty: | 1 year |
Hangzhou Hengbai Gear Reducer Co.,Ltd. has been a specialized manufacturer in designing and
producing gear box for nearly 20 years. We imported advanced technology from United States,
Germany and Japan, adopted CAD design and reasonable arrangement. The Hengbai products
always receive faith from old and new customers.
Website: /
1, Industrial pakaging: Plastic tube+carton+wooden pallets
2, Commercial packing: Plastic bag+color box+carton+wooden pallets
3, As client's requirement
4, Shipping: By sea, by air, by DHL Fedex UPS etc
(1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
