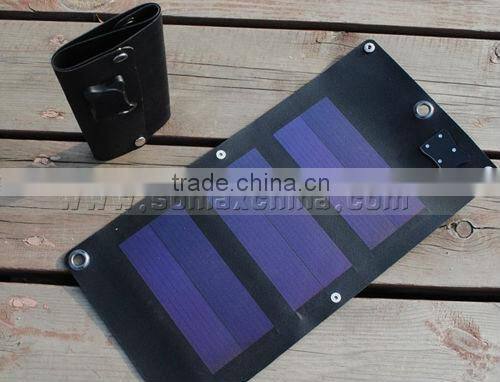

1w 1.5v Waterproof Flexible Solar Panel for Mobile Phone Power Bank

Specifications

1w 1.5v waterproof  flexible solar panel for Mobile Phone Power Bank

Specifications:

Maximum Power (Pmax) : 1W

Voltage at Pmax (Vmp) : 1.5v

Current at Pmax (lmp) : 660 mA
Short-circuit Current (Isc) : 850 mA
Open-circuit Voltage (Voc) : 24.0 V

Construction Characteristics:

Dimensions:
Length: 818 mm 1,248 mm including package folder
Width: 495 mm
Depth: 2 mm
Package: 255 mm×130 mm×40 mm
Weight: 80 g
Output Cables: ~0.75 mm2 & ~ 400 mm length cable
With weatherproof quick contact connector
By-pass Diodes: Connected across every solar cell

Laminate:

Encapsulation: Durable ETFE high light-transmissive polymer
Adhesive: Ethylene propylene copolymer adhesive-sealant with microbial inhibitor
Cell Type: Triple junction amorphous silicon solar cells connected in series

General Description:

Change sunlight into electricity power.
Can be carried and set up on any situation charging storage battery, water pump, satellite phone, GPS locator, and any rated 12 V power load.
Widely applied for field work, outdoor travel, communications, etc.
Solar charger for communications equipment, field work equipment, outdoor travel equipment, etc.


Note:

Electrical specifications (±5%) are based on measurements performed at standard test conditions of 1000 W/m2 irradiance, Air Mass 1.5, and cell temperature of 25°Cafter stabilization.
Specifications subject to change without notice.
