Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Cell > 2013 Newest 12w 18v Waterproof Fexible Solar Panel Charger

2013 Newest 12w 18v Waterproof Fexible Solar Panel Charger

2013 Newest 12w 18v Waterproof Fexible Solar Panel Charger photo-1
US$ 160 - 180 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
OBOE
Model Number:
SM-PC0203
Material:
Amorphous Silicon
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name OBOE
Model Number SM-PC0203
Material Amorphous Silicon
Size 255 mmx130 mmx40 mm
Number of Cells 3
Max. Power 12w

Specifications

1.Waterproof 12w solar panel
2.Current at Pmax (lmp) : 660 mA
3.battery charger solar brand
4.CE,FCC and Rosh Compati

2013 newest 12w 18v waterproof fexible solar panel





Specifications:



Maximum Power (Pmax) : 12.0 W
Voltage at Pmax (Vmp) : 18.0 V
Current at Pmax (lmp) : 660 mA
Short-circuit Current (Isc) : 850 mA
Open-circuit Voltage (Voc) : 24.0 V

Construction Characteristics:

Dimensions:
Length: 818 mm 1,248 mm including package folder
Width: 495 mm
Depth: 2 mm
Package: 255 mm×130 mm×40 mm
Weight: 780 g
Output Cables: ~0.75 mm2 & ~ 400 mm length cable
With weatherproof quick contact connector
By-pass Diodes: Connected across every solar cell



Laminate:



Encapsulation: Durable ETFE high light-transmissive polymer
Adhesive: Ethylene propylene copolymer adhesive-sealant with microbial inhibitor
Cell Type: Triple junction amorphous silicon solar cells connected in series


General Description:



Change sunlight into electricity power.
Can be carried and set up on any situation charging storage battery, water pump, satellite phone, GPS locator, and any rated 12 V power load.
Widely applied for field work, outdoor travel, communications, etc.
Solar charger for communications equipment, field work equipment, outdoor travel equipment, etc.


Note:



Electrical specifications (±5%) are based on measurements performed at standard test conditions of 1000 W/m2 irradiance, Air Mass 1.5, and cell temperature of 25°Cafter stabilization.
Specifications subject to change without notice.

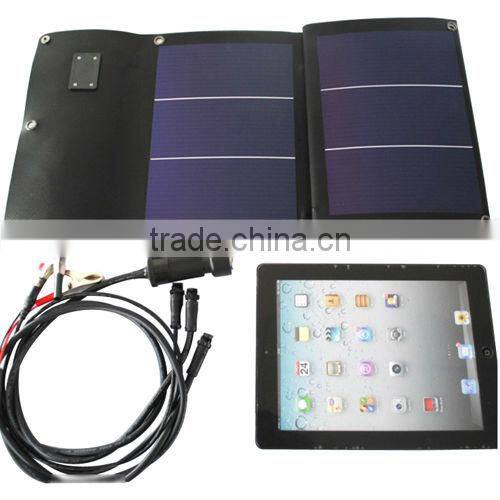

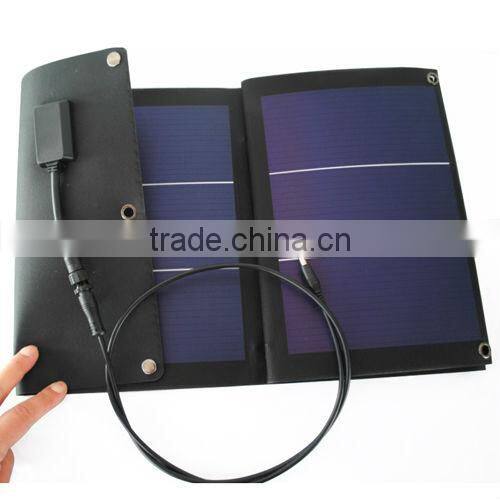

More picture:





2013 newest 12w 18v waterproof fexible solar panel charger2013 newest 12w 18v waterproof fexible solar panel charger2013 newest 12w 18v waterproof fexible solar panel charger2013 newest 12w 18v waterproof fexible solar panel charger



2013 newest 12w 18v waterproof fexible solar panel charger2013 newest 12w 18v waterproof fexible solar panel charger2013 newest 12w 18v waterproof fexible solar panel charger2013 newest 12w 18v waterproof fexible solar panel charger2013 newest 12w 18v waterproof fexible solar panel charger







2013 newest 12w 18v waterproof fexible solar panel charger







More details:







Advantage

good quality and good price

Express

DHL/Fedex/UPS/EMS

Material

plastic chrome

Size

fit for mobile phone and notebook

Design

Pure Love series

MOQ

10 pcs

Color

by choice

Service

in stock

delivery time

1-3 days after the payment

Brand



Why choose us

1. Long-term cooperation strategy for trustable business
2. Professional producer and supplier since 2006
3. phone cases since 2008,power bank charger since 2013;
4. Strict quality control for stable quality: 3-time quality test
5. Prompt delivery: 1-3 days only, suitable for urgent sourcing;
6. Great experience for OEM/ODM design and packaging orders
7. We highly cherish our high reputation
