AT-800 Mobile Phone Signal Amplifier

Specifications

AT-800 Signal Amplifier

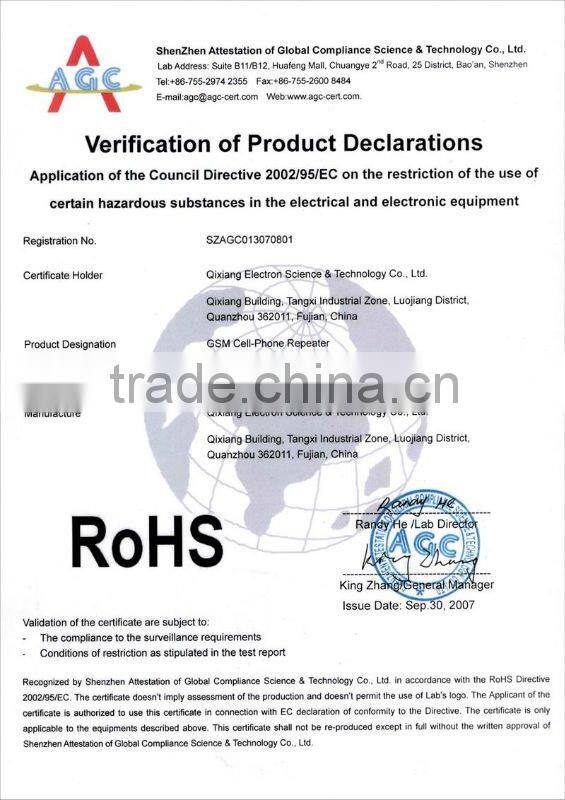

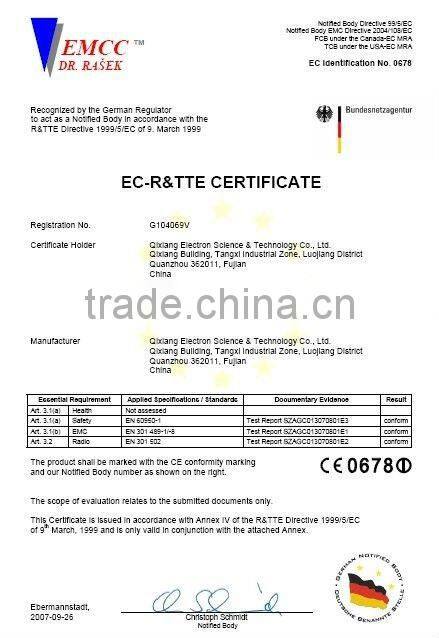

1.CE&RoHS Approval.
2.300m2 indoor coverage
3.GSM 900(up link 890-915MHz,down link 935-960MHz)

AT-800 Signal Amplifier

Frequency: up link 890-915MHz

                      down link 935-960MHz

Functions:

1. Adopts double-duplex design

2. 1200sqm indoor coverage

3. Practical and easy to install

4. ATT and ALC auto-adjustment for electronic level

Accessories:

one booster

one outdoor antenna

one indoor omnidirectional antenna

5-metre standard cable



AT-800 Specification:
Frequency Range	Up Link: 890-915MHZ,  Down Link: 935-960MHz
Output Power	UL: 27 dBm ,  DL: 27 dBm (3 rd >40 dB)
Gain	UL: 70 dB,    DL: 80dB
Pass Band Ripple	3 dB
Group Delay	1.5 us
Spurious Emission Out of Band	≤-40dBm
Impedance	50Ω
Power Supply	AC 220V / AC 110V   DC 10V
Temperature Range(°C)	-25 to +55
Humidity Relative (%)	5-95
Covering	1000m2
