Ltl Acorn MMS IR Hunting Camera With 100 Degree Wide Angle

Model

Parameters

37A

37B

Image Sensor

5 Mega Pixels Color CMOS

Yes

Yes

Max. Pixel Size

2560x1920

Yes

Yes

Lens

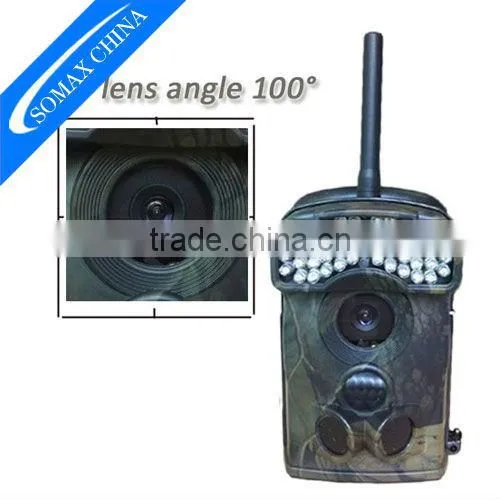

F=3.1; FOV=100°; Auto IR-Cut

Yes

Yes

IR Flash

65 Feet/20 Meters

Yes

Yes

LCD Screen

48x35.69mm(2.36"); 480(RGB)*234DOT; 16.7M Color

Yes

Yes

Operation Keypad

6 Keys

Yes

Yes

Memory

SD Card (8MB ~16GB)

Yes

Yes

Picture Size

5MP/12MP/1.3MP = 2560X1920/4000X3000/1280X960;

Yes

Yes

Video Size

640x480: 20fps; 320x240: 20fps

Yes

Yes

PIR Sensitivity

High/Normal/Low/Off

Yes

Yes

PIR Sensing Distance

65ft/20m(Below 77°F/25°C at the Normal Level)

Yes

Yes

Prep PIR  Sensing Angle

Left and right light beams form an angle of 100°;
Each lens covers 10°

Yes

Yes

Main PIR Sensing Angle

35°

Yes

Yes

Operation Mode

Day/Night

Yes

Yes

Trigger Time

0.8 Second (When using the 2G SD card)

Yes

Yes

Trigger Interval

0sec. - 60min; Programmable

Yes

Yes

Shooting Numbers

1~3

Yes

Yes

Video Length

1-60sec.; Programmable

Yes

Yes

Camera + Video

First take Picture then Video

Yes

Yes

Playback Zoom In

1~16 Times

Yes

Yes

Time Stamp

On/Off; Include serial No., temperature and moon phase

Yes

Yes

Timer 1

On/Off; Programmable

Yes

Yes

Timer 2

On/Off; Programmable

Yes

Yes

Password

4-Digit Numbers

Yes

Yes

Device Serial No.

4 digits and 26 alphabets set by yourself

Yes

Yes

Time Lapse

On/Off; 1 Second ~ 24 Hours Programmable

Yes

Yes

MMS Status

VGA=640x480; SMS;OFF

Upgradable

Yes

Programmable

MMS Numbers

“0” = Unlimited; 0 ~ 99/Day

Upgradable

Yes

MMS Phone No.

1 ~ 3 Phone Numbers

Upgradable

Yes

MMS E-mail

0 ~ 3 E-mail address

Upgradable

Yes

SMS

1~3

Upgradable

Yes

Low-Battery SMS Alert

“Battery Low” text alert sent

Upgradable

Yes

Power Supply

4xAA; Expandable to 8xAA

Yes

Yes

External DC Power Supply

Plug Size: 4.0x1.7

Yes

Yes

6 ~ 12V (1 ~ 2A)

Stand-by Current

 0.4mA

Yes

Yes

Stand-by Time

3~6 Months(4xAA~8xAA)

Yes

Yes

Auto Power Off

Auto power off in 2 minutes if no keypad input

Yes

Yes

Power Consumption

150mA (+350mA when IR LED lights up)

Yes

Yes

Low Battery Alert

4.2~4.3V

Yes

Yes

Interface

TV out (NTSC); USB; SD Card Slot; 6V DC External

Yes

Yes

Mounting

Strap; Tripod

Yes

Yes

Waterproof

IP54

Yes

Yes

Operation Temperature

-22~+158°F/-30 ~+70°C

Yes

Yes

Operation Humidity

5% ~ 95%

Yes

Yes

Certificate

FCC & CE & ROHS

Yes

Yes
