12MP MMS hunt camera with 24 count red flash infrared GSM/Email external antenna Ltl Acorn Ltl 5210MM

Specifications

12MP MMS hunt camera with 24 count red flash infrared GSM/Email external antenna Ltl Acorn Ltl 5210MM

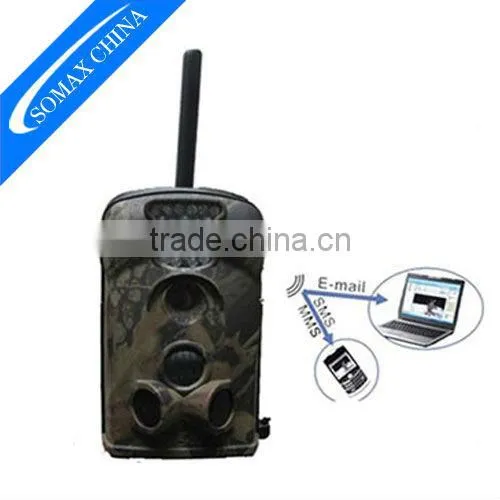

MMS/SMS/Email via GSM Network,
Quad band:850/900/1800/1900MHz ,Camera ,video and camera+video three different model,
support to 16gb sd card,trigger time is 1.0S, lower power consumption.

TECHNICAL SPECIFICATION

Model Parameters :MMS hunting camera
Image Sensor :5 Mega Pixels Color CMOS
Max. Pixel Size :2560x1920
Lens: F=3.1; FOV=52°; Auto IR-Cut
IR Flash: 65 Feet/20 Meters
LCD Screen: 48x35.69mm(2.36");480(RGB)*234DOT; 16.7M Color
Operation Keypad: 6 Keys
Memory :SD Card (8MB ~16GB)
Picture Size :5MP/12MP/1.3MP =2560X1920/4000X3000/ 1280X960;
Video Size :640x480: 20fps; 320x240: 20fps
PIR Sensitivity :AHigh/Normal/Low
PIR Sensing Distance :65ft/20m(Below 77°F/25°C at the Normal Level)
Prep PIR Sensing Angle:Left and right light beams form an angle of 100°;
Each lens covers 10°
Main PIR Sensing Angle :35°
Operation Mode :Day/Night
Trigger Time :1.1 Second (When using the 2G SD card)
Trigger Interval :0sec. - 60min; Programmable
Shooting Numbers :1~3
Video Length: 1-60sec.; Programmable
Camera + Video: First take Picture then Video
Playback Zoom In :1~16 Times
Time Stamp :On /Off; Include serial no., temperature and moon phase
Timer :On /Off; Time Lapse Programmable
Password :4-Digit Numbers
Device Serial No.: 4 digits and 26 alphabets set by yourself
Periodic Shot :1 Second ~ 24 Hours
MMS Picture Size :VGA: QVGA: OFF: Programmable
MMS Numbers :1~99/Day:Not limit: Programmable
Mobile number :1~3
E-mail :0~1 Programmable extensible
Low Battery SMS Alert:Send ”Battery Low” extensible
Power Supply: 4xAA; Expandable to 8xAA (With additional battery box)
External DC Power Supply:Plug Size:4.0X1.7 6~12V(2~1A)
Stand-by Current: 0.4mA Yes Yes
Stand-by Time :3~6 Months(4xAA~8Xaa)
Auto Power Off: Auto power off in 2 minutes while no keypad controlling
Power Consumption:150mA (+350mA when IR LED lights up)
Low Battery Alarm:4.2~4.3V
Interface :TV out (NTSC); USB; SD Card Slot; 6V DC External
Mounting Strap; Tripod Nail
Waterproof IP54
Operation Temperature -22~+158°F/-30 ~+70°C
Operation Humidity:5% ~ 95%
Certificate FCC & CE & ROHS

Accessories:

Digital camera :1
Additional battery box :1 (With MMS module)
TV AV IN cable:1
USB cable:1
Strap:1
External DC cable (optional): 1
CD:1
