Home > Products > Slipper/sandal machine series > Double colors PVC Jelly shoe injection molding machine

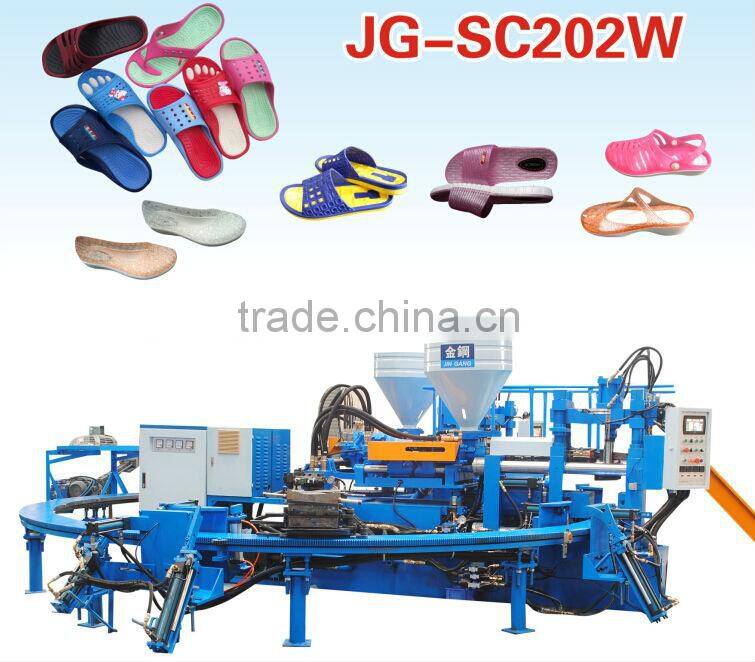

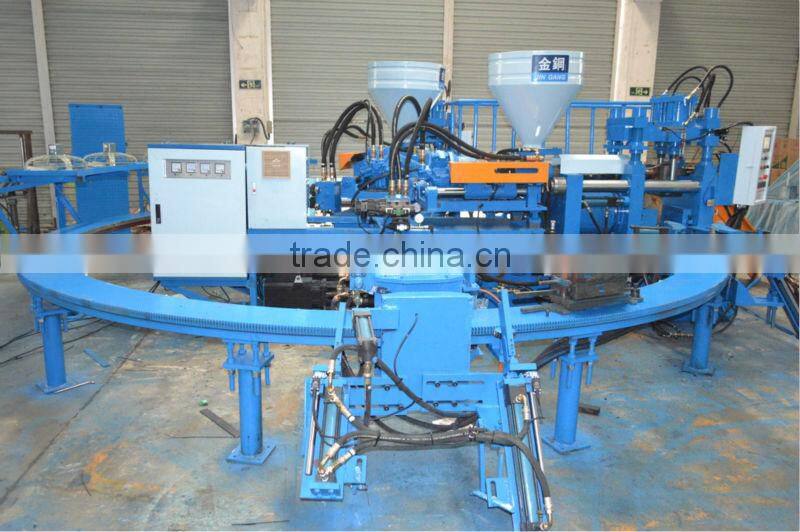

Double colors PVC Jelly shoe injection molding machine
- 30 Set / Sets per Month
- ShenZhen/GuangZhou
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Tube Head Injection | |
| Style | Horizontal | Brand Name | Kingkong | |
| Model Number | JG-SC202W | Place of Origin | Guangdong, China | |
| Plastic Type | Thermoplastic | Automatic | Yes | |
| Injection Weight | 1200cm³ | Clamping Force | 120 Tons | |
| Opening Stroke | 450x300x210mm | Power(W) | 45kw | |
| Certification | SGS | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Jelly upper+PVC air blowing soleTwo colors PVC Jelly shoe injection molding machine, Two color PVC shoe injection molding machine
This machine is use to produce PCU 2 colos lady sandal or short boot, one injection head can inject PVC and the other head can inject PCU. and this machine is with full set of Mold manipulator which can open and close the mold Full Automatically. this machine have 12 or 16 station for your choice, and we can design the machine as your requested such as the strew diameter and mold clamping ton, all can be customized!
Machine Over-view Video:
youtu.be/O_sC4-XPGgg

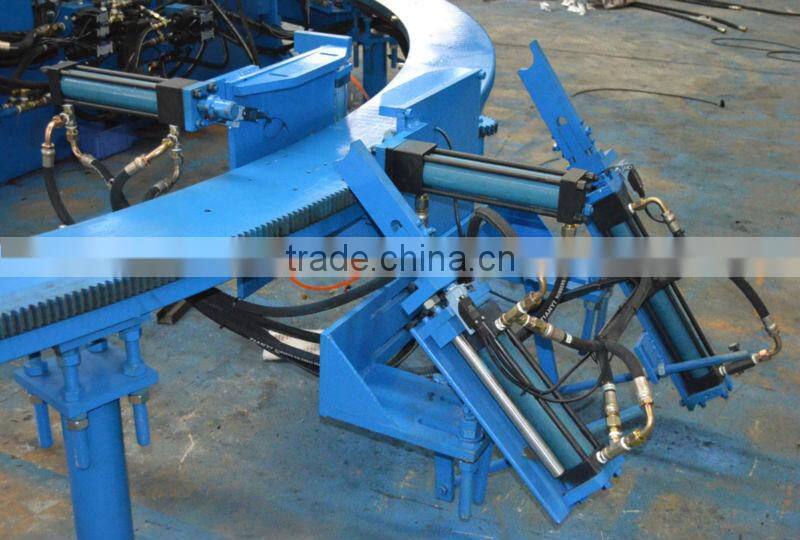

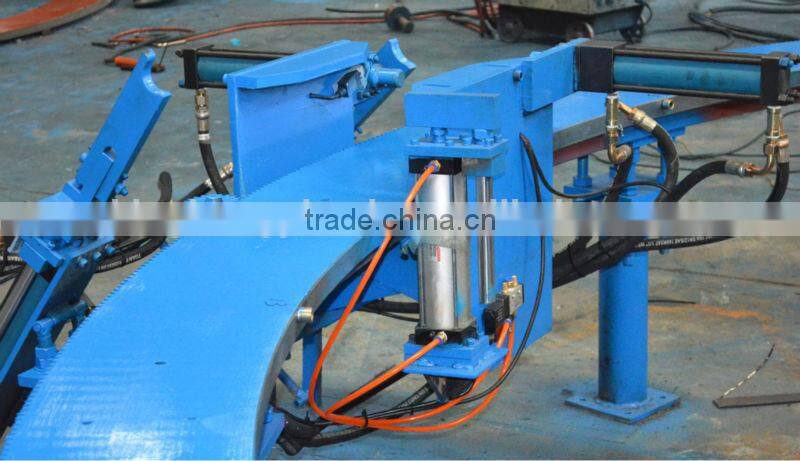

Model: JG-SC202W; Mold station 20; Injection screw(Jelly): dia.55mm, 2nd screw (Air blown): dia.65. Driving motor: 3 phases asynchronous motor + Vane Pump or Servo motor + gear pump(or screw pump). Rotary disk: Servo motor + reducer or hydraulic motor + Reducer. Mold clamping cylinder dia. 250mm, 2ndcylinder dia. 320mm. (more specification can be provided.)
Finished shoe Sample:
