5.8G Wireless Door Peephole Camera With DVR

5.8G Wireless Door Peephole Camera With DVR thumbnail-1
5.8G Wireless Door Peephole Camera With DVR photo-1
US$ 155 - 160 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SOMAX
Model Number:
SM-WIR0069
Contact Supplier Request Quote Chat Now
Shenzhen Global Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SOMAX
Model Number SM-WIR0069
Type Other, Digital Camera, Video Camera
Style Mini Camera
Sensor CMOS
Technology Pinhole
Special Features Other, Wireless Mini DVR

Specifications

1.Pure brass materia, its noble and durable;
2.5.8G no-interference frequency,
3.100m wireless range;

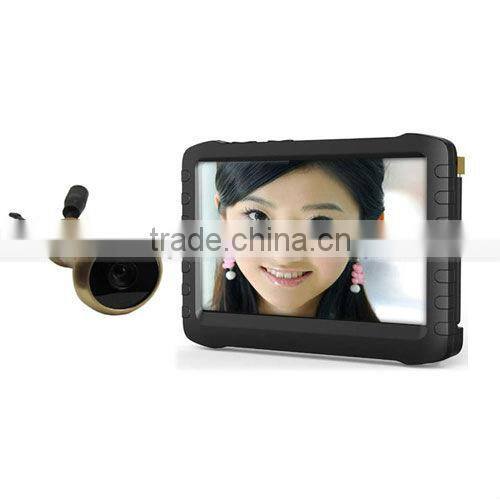

5.8G Wireless Door Peephole Camera with DVR(No-interference frequency,100m range;90 degree VOA;0.008lux;5-inch screen;800X600pix;motion detect recording)



Why Install This Product ?

# Do You Want to monitor if any unauthorised people is outside your House?

# Do You Want To Know Who Come To Your House ?

Get The Door Peephole Camera Kit Now!!

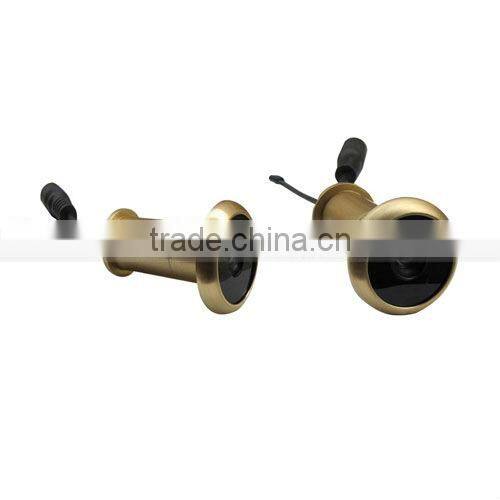

*No visible wires from the doors exterior, and exact same looking as original one,so the camera wont look suspicious;

* Pure brass materia, its noble and durable;

*5.8G no-interference frequency, 100m wireless range;

* Records video in high and low light(0.008lux) situations;

*Wide-angle(90°) lens makes it easy to capture footage of a corridor;

* 5-inch large screen DVR playback Video instantly without connecting to computer;

* Motion Detection Available : Record Only when there is movement detected outside the Door (Replaced CCTV 24 Hrs Monitoring & Protect Home From Robbery);

* No need any cable installation, just plug and play;

* Support SD Card(up to 32G) recording for any evidence needed.

Specification:

(1 )Camera

Working frequency
G1-within 5.8G
CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
Working Channel: 1 of 24
G2-Beyond 5.8G
CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz.
CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
G3-Within 5.8G
CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz.
CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz
Antenna
External antenna
RF OUTPUT POWER
25mW
TRANSMISSION RANGE
100 meters
SENSOR DIMENSION
NTSC:720(H)×480(V)
PAL:720(H)×576(V)
HORIZONTAL RESOLUTION
480TV Lines
SENSITIVITY
0.008Lux/F1.2
LENS & VIEW ANGLE
0.5mm F1.2 / 90 °
PEEPHOLE SIZE(L x D)
38-60mm X 14mm
WEIGHT(g)
20g
WORK CURRENT
230mA
POWER REQUIREMENT
DC 4V
OPERATING TEMPERATURE
- 20°C ~ + 50°C Relative humidity 85

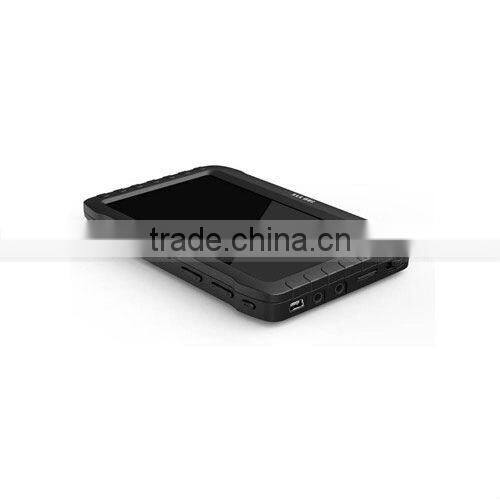

 (2) 5-in HD mini DVR:



Items
Value
Wireless Receiving
2.4GHz –8 channels
CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz.
CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
Within 5.8G—8 channels
CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
Beyond 5.8G—8 channels
CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
Sensitivity
-92dB
Receiving distance
100 meters
AV IN
TV system
NTSC / PAL
Output voltage
3.6 - 4.2 V
HD 5-inch LCD screen
Active area
108mm(W) X 64.8mm(H)
Resolution
800 X 480 Pixel
Luminance for LCM
200 cd
Cape clear 5-inch LCD screen
Active area
118mm(W) X 62.8mm(H)
Resolution
480 X 272 Pixel
Luminance for LCM)
300cd
Video
Resolution
720*576 / 640*480
Video compress
MPEG-AVI 30fps
Play format
MPEG-AVI
Audio
Frequency
20HZ-20KHz stereo
Earphone Output
Left: 20MW+ right 20mW [16O](suit to largest volume)
Speaker
1W
Format
JPG/JPEG
Storage
External SD card
TF card 1GB-32GB(optional)
32GB recording time
10-32 hours
1GB photos
15625pcs
Operating system
PC
Windows & Mac OS
Port
USB 2.0
Language
Multiple
Power
Voltage
DC 5V
Current(receiving mode)
660MA
Current( recording mode)
680MA
Current(recording with off-screen mode)
340MA
AC adapter
DC 5V 2A
Built-in battery
Li-battery 3200mAh
Standby time
Wireless record
≥9.5 hours(off-screen); ≥5hours(on-screen)
Wired record
≥12 hours(off-screen); ≥6hours(on-screen) *LED camera not included.
Size (L x W x H)
131mm x 86mm x 18mm
Weight(g)
205g



5.8G Wireless Door Peephole Camera with DVR5.8G Wireless Door Peephole Camera with DVR5.8G Wireless Door Peephole Camera with DVR

5.8G Wireless Door Peephole Camera with DVR
